- Certification: CE
- Origin: CN(Origin)
- Operating Speed: 8000-24000 R/min
- Drive: MOTOR
- Application: Milling
- Package Content 1: 1 x 1.5KW Water Cooled Spindle Motor
- Package Content 2: 1 x 1.5KW Variable Frequency Drive Inverter
- Package Content 3: 1 x English Manual
Features & Details
- This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor. Speed: 8000-24000 R/min. Runout off: less than 0.005mm. Power: 1.5 KW. Frequency: 400 Hz.ER11(3.175mm,4mm,6mm).
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.
- 【PRODUCT DETAILS】– The 1.5KW water cooled spindle motor’s speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 2HP 1.5KW 7A variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
- 【PREMIUM QUALITY】– The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
- 【POWERFUL PERFORMANCE】– The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
- 【GREAT PROTECTION SYSTEM】– The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
- 【WORKS COOPERATIVELY】– The water cooled spindle, together with variable frequency drive inverter, it’s definitely a nice combination to imporve the work efficiency and performace of the VFD.
The Spindle Motor and Variable Frequency Drive Inverter may be in different packages and be delivered separately.
Please do not worry, you will receive ALL the parcels in recent days after the order.
Key Features for Spindle Motor
Dynamic Balance Design
Unlike other milling spindle motors, ours use innovative & advanced dynamic balancing technology. The distinct advantages are low noise, upgraded efficiency & extended service life.
Upgraded bearings have two main advantages of superior durability & anti-rust performance. Greatly- improved high-speed core brings higher efficiency than the past.
The use of acid-proof materials makes the CNC router spindle motor more durable & sturdy. The metal casing significantly improves cooling efficiency & faster dissipates heat.
High Concentricity & Precision
With high accuracy & concentricity, our bearings are much superior to other manufacturers on the market. One-time molding design brings more excellent precision to the CNC spindle mount.
Er11 Standard Collet
The Er11 standard collet features high precision & dynamically balanced design, which effectively avoids the risk of knife breakage.
Water-cooled motors mainly match with engraving machines or frequency converters, and commonly applied materials such as wood, stone, mold & metal, etc.
Key Features for Variable Frequency Drive Inverter
Separate Control Panel
With full-featured clear buttons to achieve quick and easy operation. The panel is detachable for convenient remote control.
We provide both single phase 220V and three phase 220V input. When used for single phase, another phase can be used as a spare line.
Premium Driver Board
The driver board is cleaned and painted. the Japan MITSUBISH chip, with communication port.
Adopts overload protection, fuse protection, over-voltage (DC voltage>400V) or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.
Effective Heat Dissipation
Adopts large area of cooling vents and a forced air-cooled fan, offering powerful cooling capacity.
Applied in machinery winding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator and other speed control machines.

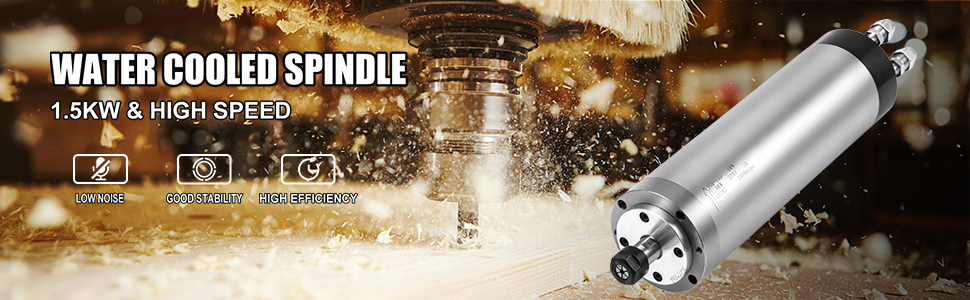

1.5KW Water Cooled Spindle Motor
These spindle motor motors adopt Germany imported bearing, which can make it use for three times longer useful time than ordinary spindle motor. In an extremely high-speed working environment, the ordinary bearing can not ensure this high speed for a long time. Our Germany imported bearing can make spindle motor three times longer useful time than ordinary spindle motor.
- Technical Parameters
- Advanced Balance Technology
- Superior Performance Bearings
- Trustworthy Heat Dissipation
- Spec: φ65 x 188 mm (Diameter:65 mm x Length:188 mm)
- Power: 1.5 KW
- Voltage: 220V~250V
- Frequency: 400 Hz
- Speed: 8000-24000 R/min
- Runout off: less than 0.005 mm
- Product Dimension(Approximated): 29 x 13 x 12 cm (L x W x H)
- Gross Weight：3.2 KG(7.05 lbs)
- 1 x 1.5KW Water Cooled Spindle Motor
- Input Voltage: 220 V
- Output Voltage: 208-240 VAC ( analogous to Input Voltage )
- Input Frequency: 48-63 Hz
- Output Frequency: 0-400 Hz
- Input Phase: 1 or 3 phase as you like
- Output Phase: 3 phase
- Control Mode:SPWM
- Input Power:220V class：220±15%
- Working Temperature:-10~40 ℃
- Humidity:0-95% Relative Humidity (without dew)
- Vibration: Below 0.5G
- Dimension: 22 x 18 x 21 cm (L x W x H)
- 1 x 1.5KW Variable Frequency Drive Inverter
- 1 x English Manual
1 x 1.5KW Variable Frequency Drive Inverter
1 x 1.5KW Water Coolded Spindle Motor
1 x English Manual
