UPS 1500w Pure Sine Inverter Charger EDECOA 12v 1500w DC TO AC UPS 220V 230V Off Grid Home UPS Pure Sine Wave Power Inverter

$427$433

SKU: 4000483290007 Category:

Description

  • Brand Name: EDECOA
  • Type: DC/AC Inverters
  • Origin: CN(Origin)
  • Size: 30x15x13 cm
  • Output Frequency: 50 Hz
  • Output Type: DUAL
  • is_customized: Yes
  • Output Current: 20A Maximal
  • Model Number: 1922101500LU-V3
  • Output Power: >1000KW
  • Certification: CE
  • Certification: RoHS
  • Weight: 3.81 kg
  • AC Output Waveform: Pure Sine Wave
  • Continuous Power: 1500W
  • Surge Power: 3000W
  • Surge Power Duration: 0.1S
  • DC Input Voltage: 12V
  • AC Output Voltage: 220V 230V 240V
  • AC Output Frequency: 50Hz
  • AC Working Voltage: 170V~265V
  • Charge Current: 20A Maximal
  • Charge Voltage: 14.5V
  • USB Output: DC 5V 2.1A
  • Efficiency: >90%
  • DC Input Voltage Range: 10.5V~15V
  • Input Low Voltage Alarm: 10.5V±0.3V
  • Input Low voltage Shutdown Voltage: 10V±0.3V
  • Input High voltage Shutdown Voltage: 15V±0.3V
  • No Load Current: <1.0 A
  • Battery Cable: 16m㎡x750mm
  • Fan Starting Temperature: ≥ 45 ℃
  • Casing Materials: Anodized aluminum
  • Temperature Protection: 75 ℃
  • Certificate: CE, ROHS
  • Network Cable(RJ45 standard): 4 meters long
  • Soft Start Function: Yes
  • Feature: ups inverter

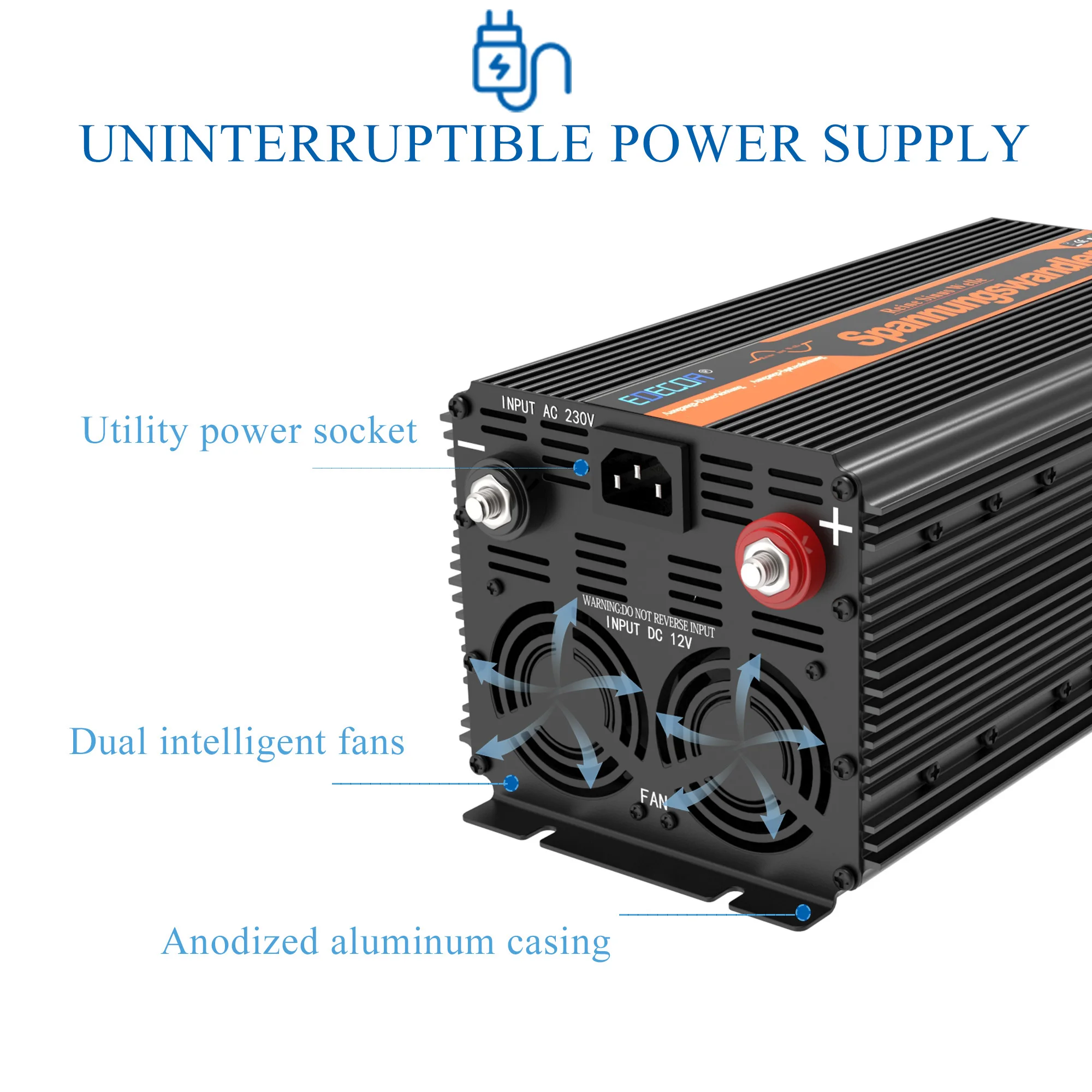

UPS and CHARGER FUNCTION

UPS means an uninterruptible power supply that provides a stable and uninterrupted power supply to the load. When the utility power is normal, the UPS supplies the power to the load and charges the battery at the same time. When the utility power is interrupted, the EDECOA UPS INVERTER immediately switches to the battery power supply and continues to supply 220V AC power to the load. We don’t need to worry about power being interrupted.

SOFT START and 90% EFFICIENCY

The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.

AUTOMATIC RESET FUNCTION

When the input voltage is too high or too low, the power inverter will automatically shut down to protect the electrical appliances and the inverter itself. When the inverter identifies that the input voltage back to normal range, the dc to ac inverter will automatically resume work.

LCD DISPLAY

Real-time monitoring and beginner-friendly. New version 2.0 multi-function LCD screen.
LCD Display will show input & output voltage, battery capacity, alarm code, and working status.

Compatible battery:

Suitable for lead-acid batteries, such as water batteries, Flooded batteries, Sealed batteries, AGM batteries
If you need to charge Lifeo4 or lithium battery, please check the charging voltage of the inverter whether suitable for your battery.

A Need to Know of UPS Inverter

When the battery voltage exceeds 14.5 volts, the inverter will automatically shut off charging. When the inverter detects that the battery voltage is lower than 13.6 volts, it will recharge the battery

Packing List

Inverter unit*1
User manual*1
Battery cable (16m㎡x750mm)*1 pair
Ground wire*1
4 meters long RJ45 standard network cable Terminal cover*1 pair

Additional information

Ships From

CN, GERMANY

Input Voltage

12V

Output Voltage

220-240V

Socket Type

Germany
