Universal Inverter 10000W DC12V24V48V60V to 220V 50/60HZ LCD Screen Inverter Pure Sine Waveform Power Converter

$387

SKU: 1005003818531672 Category:

Description

  • Brand Name: OUTMIX
  • Certification: NONE
  • Origin: CN(Origin)
  • Output Frequency: 50Hz
  • Input Voltage: DC 12V
  • Socket Type: Universal

Features:

1. Strong and Durable: Aluminum alloy housing and high speed Intelligent cooling fan helps reduce heat . Aluminum alloy housing provides advanced protection from drops and bumps. Integrated cooling fan helps reduce heat and prevents shortages.(Note: It is normal for the metal shell to heat up when the inverter is working. This inverter uses a built-in fan and the metal shell to dissipate heat).

2. LED Green&Red Work Lights: When inverter work normal, the green LED Lights work, but when it is on protection status, the Red Led Lights will light up.

3. LED Voltage Screen display: LED Display shows the battery Input real-time voltage and remind you to charge your battery according to the low voltage.

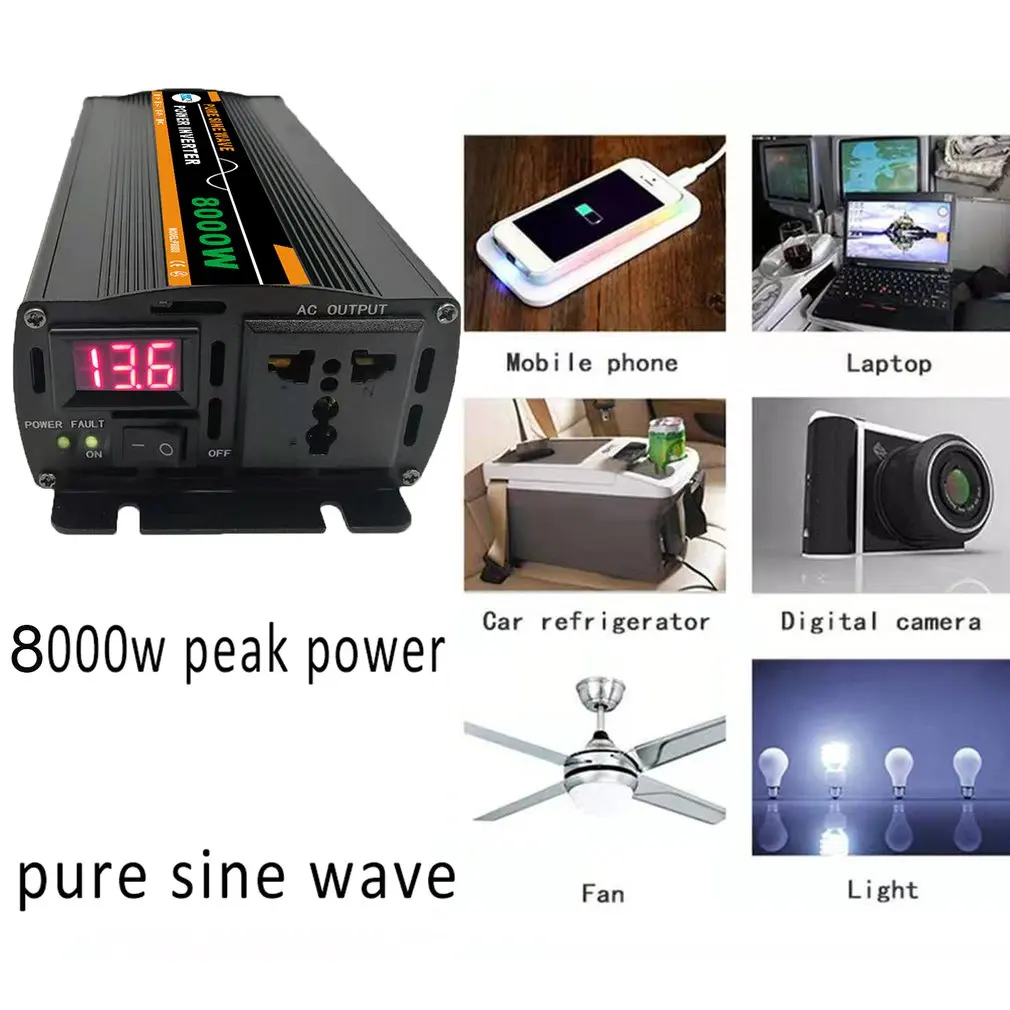

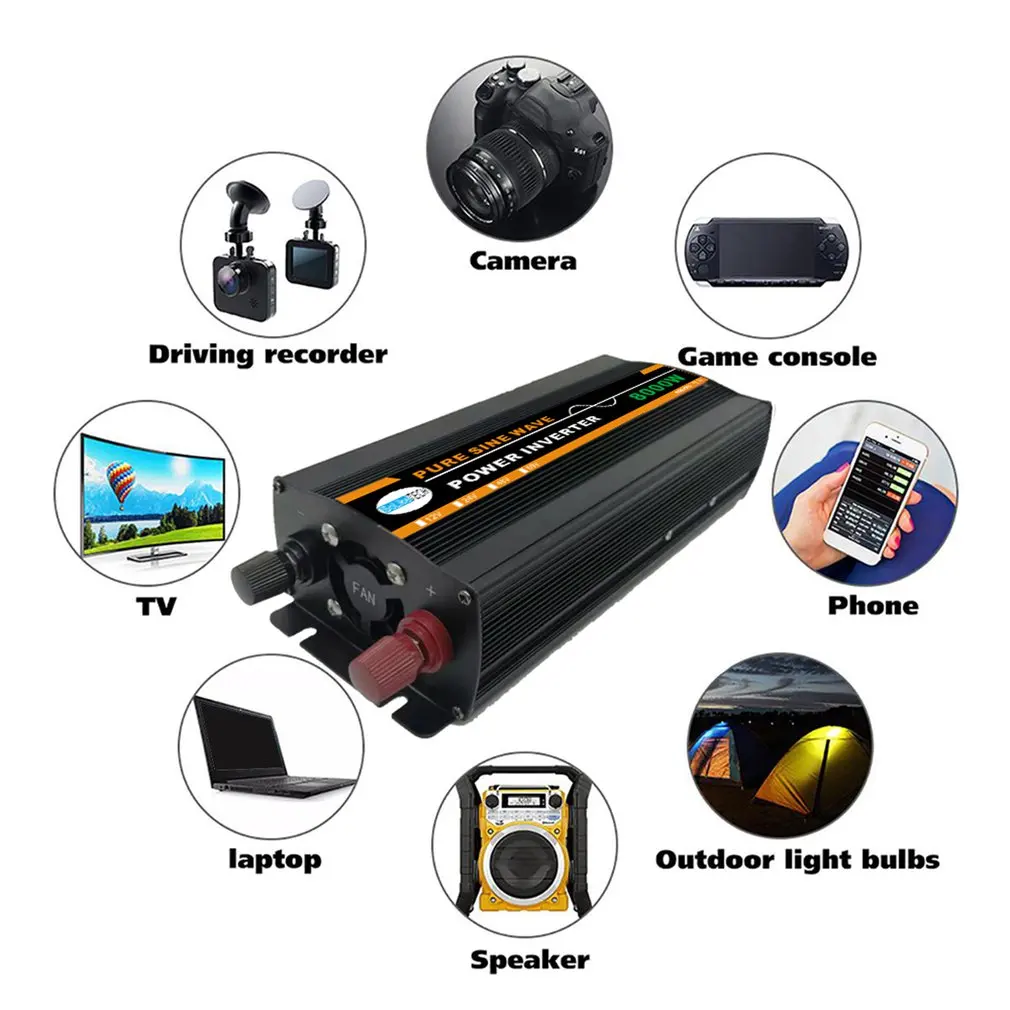

4. Widely Applications: Great for Christmas gift,charging TV, washing machine, air conditioner, refrigerant, Microwave and big power appliance. These can only operate a few 220V loads without interference. It can also use with in the car or solar system.

5. Solar system with inverter: Pure sine wave Power inverter + battery + solar charge controller+solar panel= one solar system. You can get power from solar panel, and the solar charge controller help to control the charging and discharging, battery help to storage energy, and power inverter help you to use the solar power to the AC appliance. Which is convenience and useful when there is no power or outdoor.

6. Multi Protection: Built-in fuses to protect your battery and devices, safe charging design, safe charging technology and cooling fan prevents the car power converter provides protection against overheating, under/over voltage charging, overload, short circuiting, over temperature shutdown and less voltage audible alarm, new designed DC terminals offer high current DC input.

7. Car Becomes RV: With our car power inverter, you can use most of home appliances in your car in the open air, such a watching TV, playing games, give you the experience like being in an RV.

8. Silent Intelligent Cooling Fan] Equipped with silent cooling fan, it will automatically runs at different speed according to power load (watt) load and temperature for dissipating heat and reducing working noise. There is a temperature sensor built in the inverter. When it is over 45℃, the fans will work automatically. When the temperature is over 75 ℃-80 ℃, the inverter will be shut down.

Description:

PURE SINE WAVE INVERTER – Converts 12V/24V/48V/60V DC to AC 220V household wall power with continuous 500W/800W/1000W/1300W/1500W/2000W output ( 3000W/4000W/6000W/8000W/10000W/12000W surge capability), LED Voltage display, high current DC terminals and two LED work lights. (Please make sure that the total rated power of the connected devices is ≤ continuous power of inverter).

Specifications:

Name: Pure sine wave power inverter
Input voltage: DC 12V/24V/48V/60V for your choice
Output voltage : AC 220V
Output frequency: 60Hz
Peaks Power : 3000W/4000W/6000W/8000W/10000W/12000W
(Maximum Active Surge Rating which is less than 1 second)
Rated power: 500W/800W/1000W/1300W/1500W/2000W
Maximum AC Current per socket :8.33Ampere
Output Waveform: True/pure sine wave (<3% THD)
Efficiency: 90≥%
No Load Current Draw (DC side) <0.6 A

Additional information

Color Name

DC 12V to AC 220v, DC 24V to AC 220v, DC 48V to AC 220v, DC 60V to AC 220v
