TMEZON 10 Inch Wif Video Door Phone Intercom Doorbell Home Security System Door Speaker Call Panel 3*7 inch Monitor

641 $669 $

SKU: 1005001499816689 Category: Tags: , , , ,


  • Brand Name: TMEZON
  • Connection Method: Wired
  • Origin: CN(Origin)
  • Answering Mode: Hands-free
  • Camera Sensor type: CMOS
  • Display Size: 10
  • Display Screen Type: Color Touch Screen
  • Material: Metal
  • Viewing Angle (°): 100
  • Size: 32x23x10.5cm
  • Plug Type: AU Plug
  • Plug Type: EU Plug
  • Plug Type: US Plug
  • Plug Type: UK Plug
  • Power: DC 12V
  • Model Number: MZ-IP-V142B-VDP-738EM*3-231B
  • IP Camera Interface: No
  • Zone Input: None
  • Samrt Home Interface: Yes
  • Kit Configuration: Three to One Video Doorphone
  • Installation: Wall Mounting
  • Resolution: 720p
  • Doorbell: Yes
  • Access Control: None
  • Sensor Size(Inch): 1/4
  • Technology: Digital
  • Camera: Color
  • Type: Intercom System
  • Power: 12v
  • Connection Type: Wireless
  • Waterproof: Yes
  • Outdoor Camera Resolution: 720P
  • SD Card Support: TF Card (Micro SD Card)
  • Record Mode: Screenshots / Video Record
  • Motion Detection: Support
  • Phone APP Multi-Language: Support
  • Internet Connection: Wifi / RJ45
  • Doorbell Camera Connection: Wired (4-Pin Cable)
  • Electronic Locks Connection: Support
  • Remote Control Support: Iphone,Android Phone,Ipad,PC
  • Multi-Monitor: Max Support 4 Indoor Monitor

10 Inch Touch Monitor and 720P Outdoor Camera:

10 inch TFT display touch monitor with easy operating system and advanced functions,leading four-channels display. Wifi/RJ45 port connect to internet.(Only work with 2.4GHZ router band). Outdoor doorbell with waterproof cover, built-in infrared sensor and 720P camera, 100º wide view angle,Night vision,Rainproof,Dustproof,and Anti-vandal and can connect all the electronic lock.

Monitor Specifications:

* Display: 10 inch TFT LCD Touch Monitor
* Resolution: 1024(H)x768(V)
* System:LINUX
* Channel:4 channels
* Unlock: Monitor,smartphone and tablet unlock
* Additional Memory: SD card (64GB max.)
* Network:WIFI/RJ45 port
* Power Supply:Built-in(AC 100~240V), DC12V
* Multiple Intercom:Up to 4 monitors((The slave monitor is MZ-VDP-738EM)
* Multiple Doorbell:Up to 2 doorbells
* Ringtone:16 ringtones optional
* Made Of High Acrylic wire drawing panel and TFT display
* Installation: Surface mount(Wall mount)

Doorbell Specifications:

* Camera sensor: 1/4 CMOS,720P
* Pinhole/100°wide angle camera
* Anti-oxidation aluminium alloy panel
* Simple 4-wire connection
* IR LED illumination for better night vision
* Keypad with blue LED backlight for night operation
* Rainproof,Dustproof,and Anti-vandal
* Power Supply: Supplied from indoor monitor

Answer the door in your hand:

Now you can see,hear and speak to anyone at your door,even remote unlock via your smartphone.

You can speak to courier,you don’t always go downstairs open the door.

Maybe one day you forgot your key but your phone is the key.

It is also convenient for elder or people with reduced mobility unlock the door via phone.

TMEZON Innovative Wifi IP video intercom system:

Your phone will receive the notification(APP:uCareHome) when visitor press the doorbell,you can see,hear and speak to anyone at your door,even remote unlock via the app in everywhere.You can answer the door in your hand!

About Wifi connection:

Please note the wifi video intercom system does not mean you don’t need wire any cables.The monitor support WIFI network,but the indoor monitor and doorbell is Wired, which make sure the power,the video work stable and you can extend longer distance for your front door,garden and second floor.

Automatically Snapshot or Recording:

When visitor press the doorbell or triggered motion detection, the camera will automatically snapshot or video recording and save in the Micro SD card(SD card need to purchase separately).

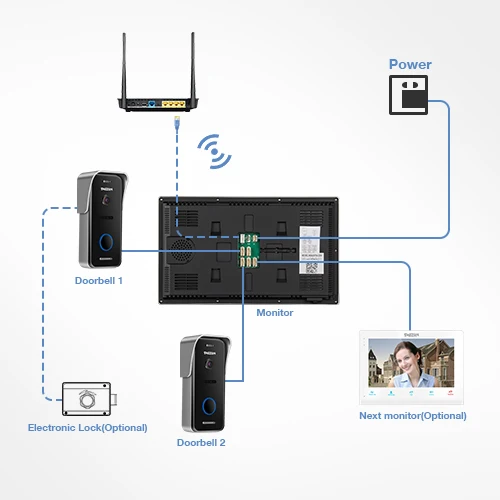

Multiple Intercom and Multi-device interconnection:

1x 10 inch IP monitor can connect more 3x 7 inch monitor and 2 doorbells. All the monitors can see,hear,speak to the outdoor camera and unlock the door. The monitors can call transfer and internal communication. Support connect additional 2x CCTV camera,2x PIR alarms,2x electronic locks,giving you more comprehensive protection for your home.

Package Included:

1x 10 inch Touch Screen Indoor Monitor
3x 7 inch Touch Screen Indoor Monitor
1x Doorbell
1x Power adapter
1x Mouse
5x 200mm 4 pin connector
1x Screw Bag
2x User Manual

* About the extension wire:

The extension wires is not included in the box,but we will provide the 4 pin connector for you connect the extension wires.

You can use RVV4/Cat5/Cat6/RG59 wires to extend the monitor to doorbell, or monitor to monitor according to your need, maximum distance can exceed 100M.

Note: The product supports to connect 720p or 960p surveillance camera
