Description
- Brand Name: CNSDPV
- Origin: CN(Origin)
- Foldable Solar Panel: No
- Number of Panels: 1
- Certification: CE
- Flexible Solar Panel: Yes
- Type: Solar Panel
- Nominal Capacity: 100W OR 200W
- Size: 1050MM*540MM*2.5MM
- Model Number: bps 32-100; etfe 32-100
- is_customized: Yes
- Number of Cells: 32

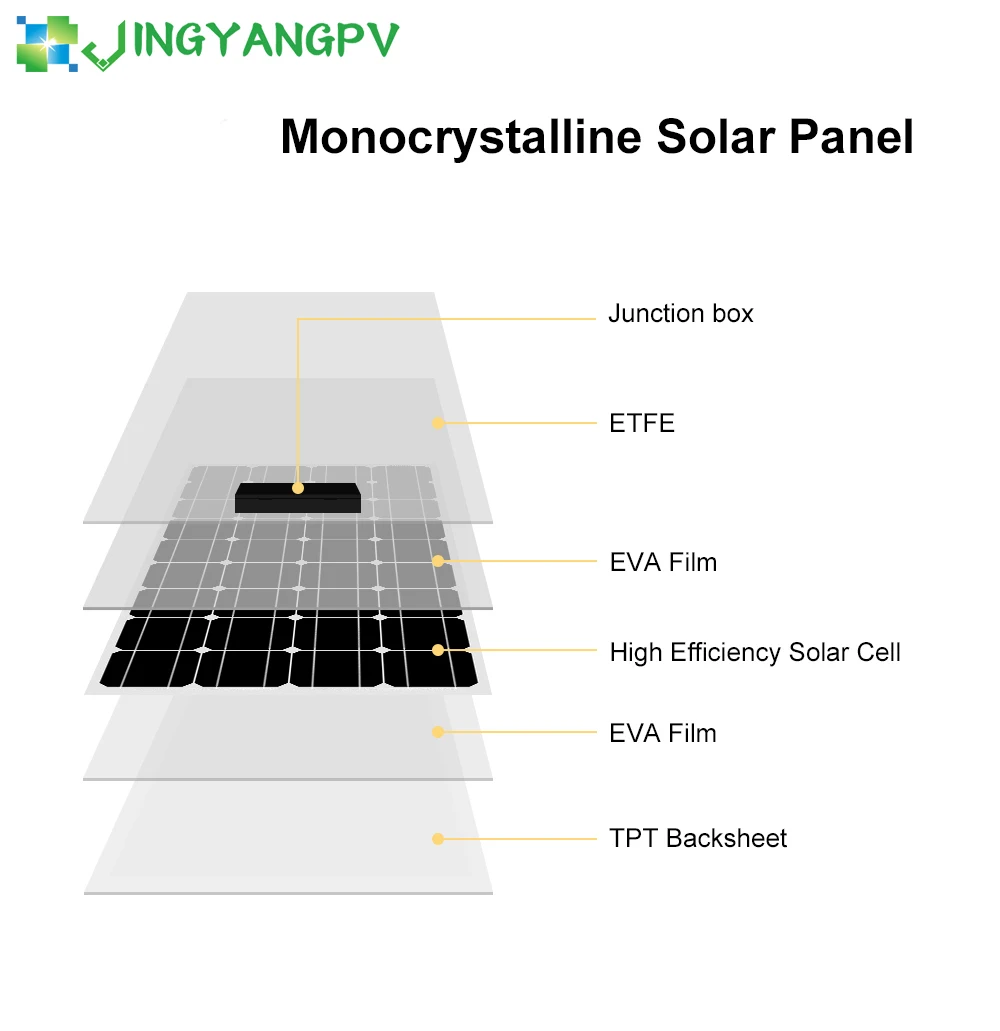

- Material: Monocrystalline Silicon
- Max. Power: 100W OR 200W
- 3M extra solar panel cable: 3M battery cable
- 10A lcd solar controller: 20A lcd solar controller
Package 1: ETFE 100W system DC
DO Not Include the Battery!!!!!!!!!!!!!
1, ETFE Flexible solar panel 100w,1pcs; size: 1050MM*540MM*2.5MM.
2, 10A, 12V/24V Auto lcd pwm solar charge controller; 1pcs
3, 1 Set 3M Extension Solar Cablefor rechargeable battery
4, 1 Set 3m solar battery cable with alligator

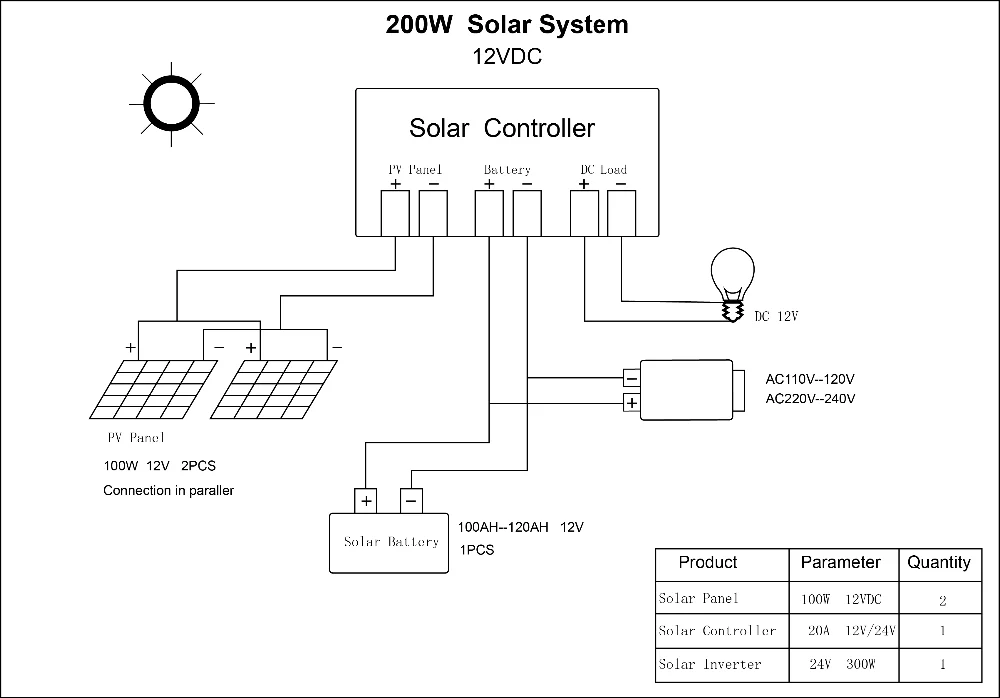

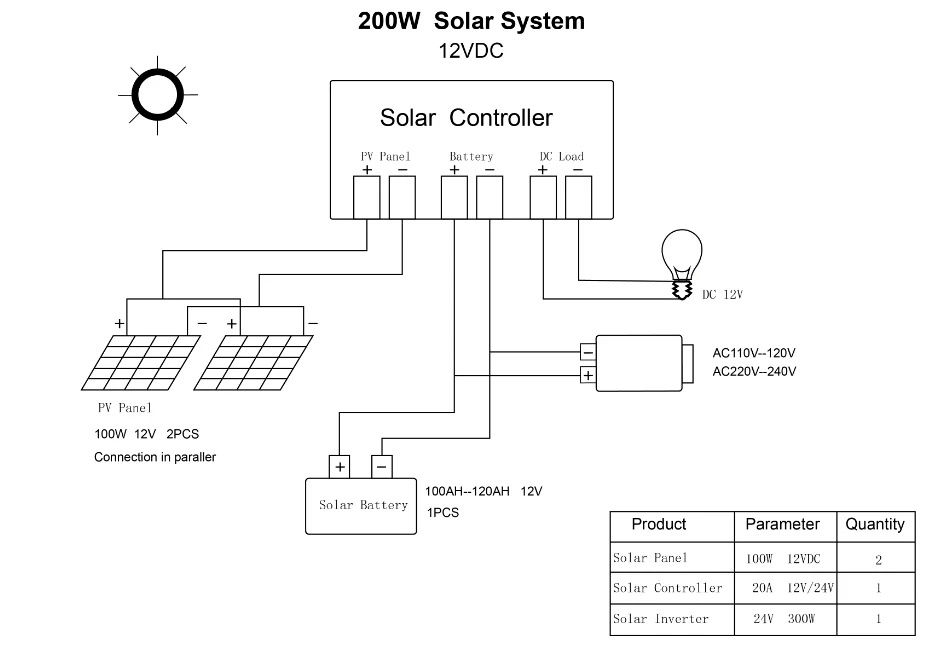

Package 2: ETFE 200W system DC
DO Not Include the Battery!!!!!!!!!!!!!
1, ETFE Flexible solar panel 100w,2pcs; size: 1050MM*540MM*2.5MM.
2, 20A, 12V/24V Auto lcd pwm solar charge controller; 1pcs
3, 1 Set 3M Extension Solar Cablefor rechargeable battery
4, 1 Set 3m solar battery cable with alligator
5， 1 set Y type connector: male and female
Package 3: PET 100W 1pc
1, PET Flexible solar panel 100w,1pcs; size: 1050MM*540MM*2.5MM.
Package 4: ETFE Solar Panel 100w; 1pcs
ETFE Flexible solar panel 100w,1pcs; size: 1050MM*540MM*2.5MM.
100W OR 200W Spare Part

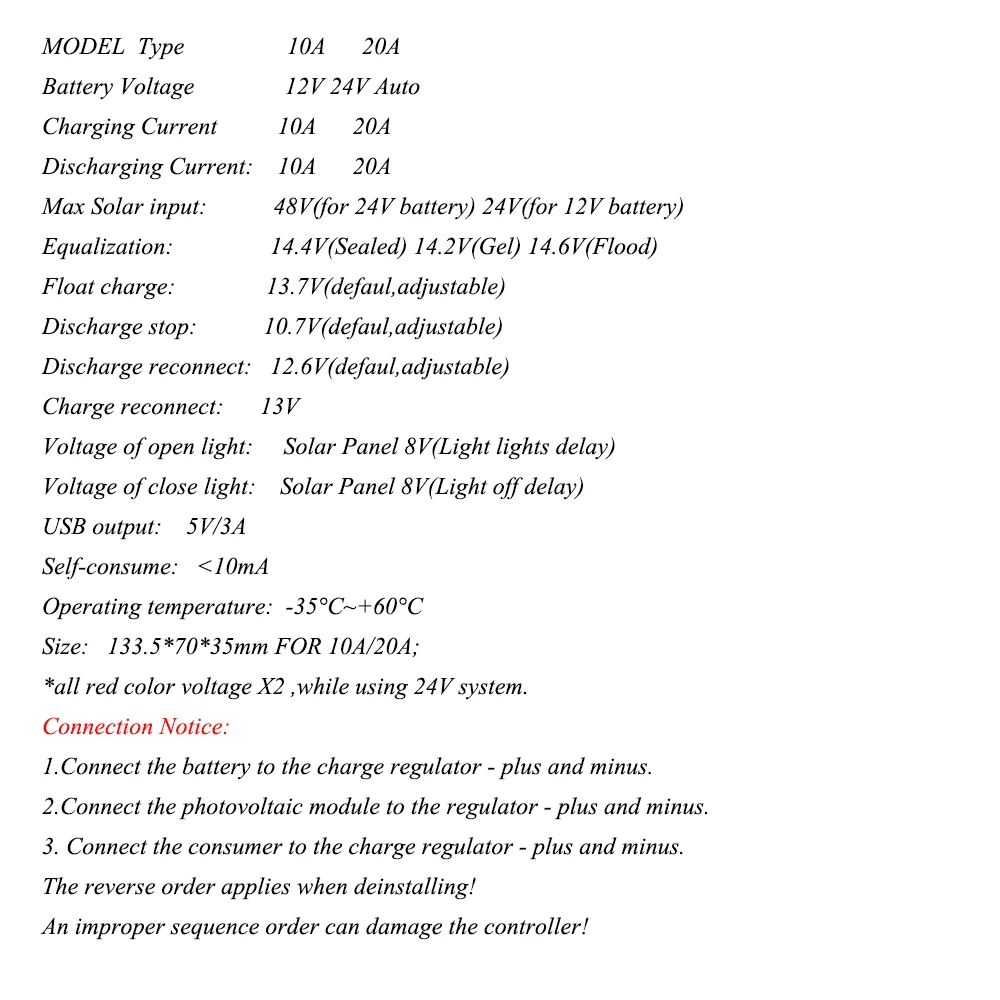

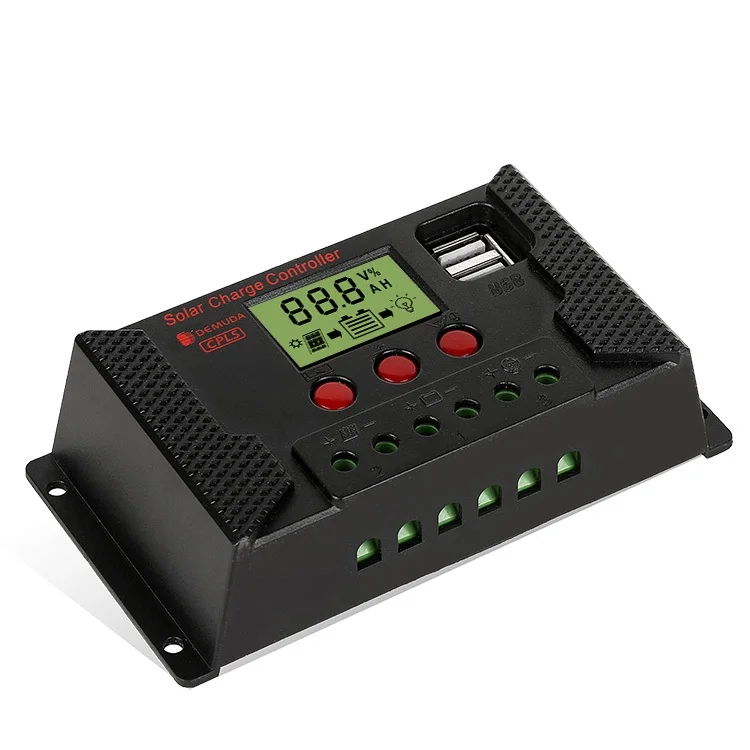

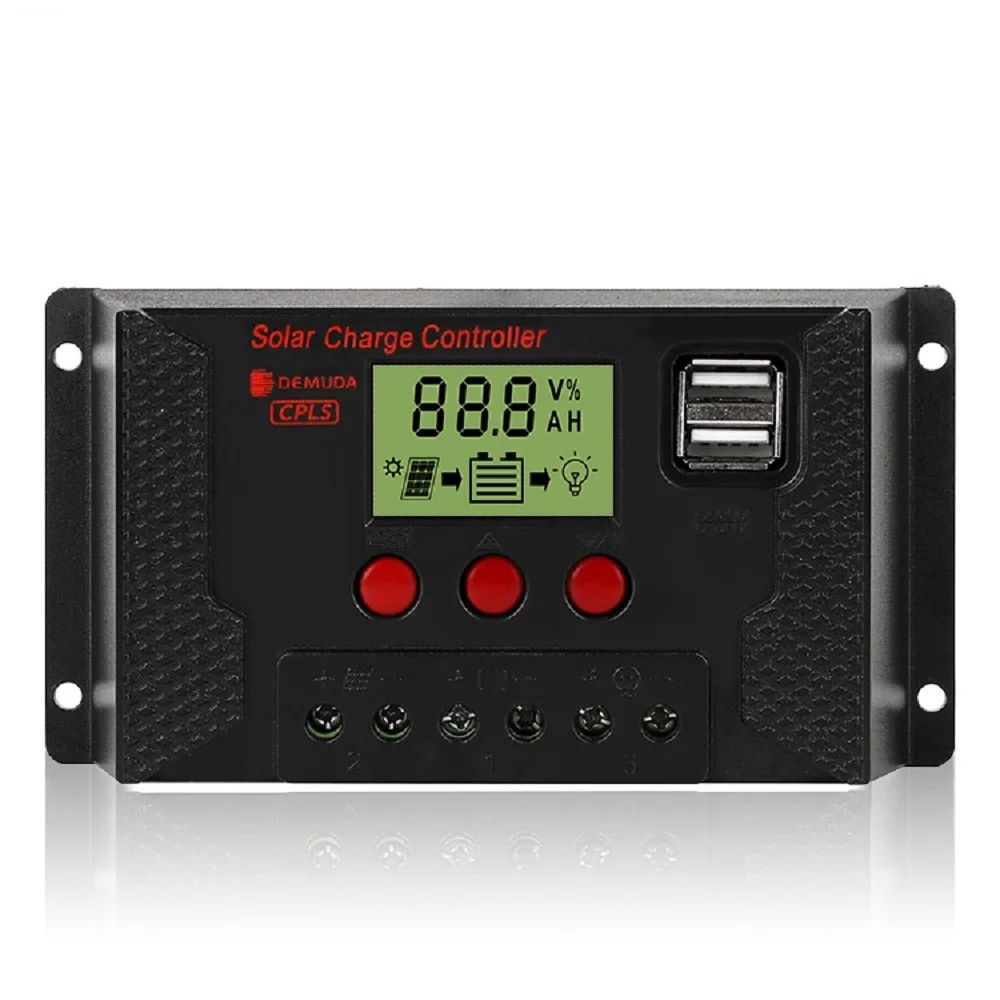

PWM Solar Controller 12V/24V, 10A For 100W Solar System; Controller Type Random
20A LCD Solar Charge Controller for 200W Solar System; Controller Type Random
Black or White Solar Charge Controller Randomly shipping.

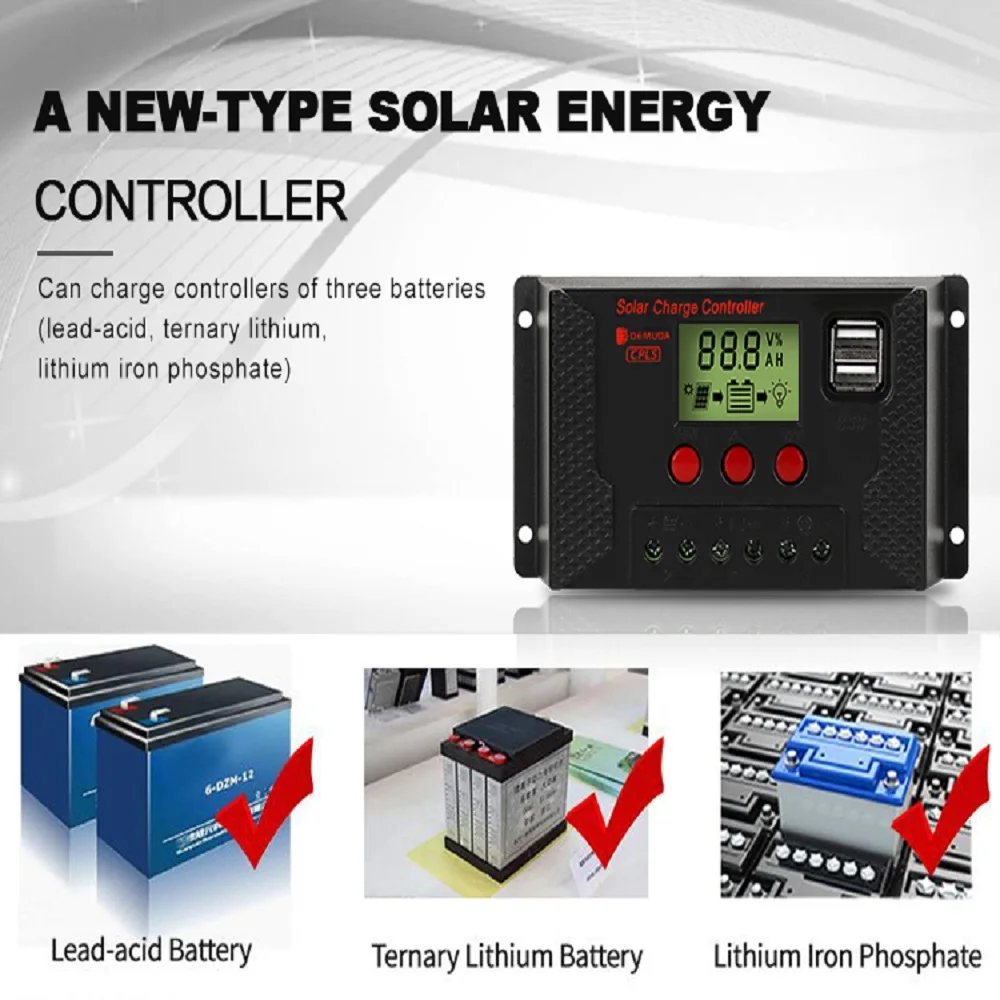

Auto(SupportLithium iron phosphate battery)

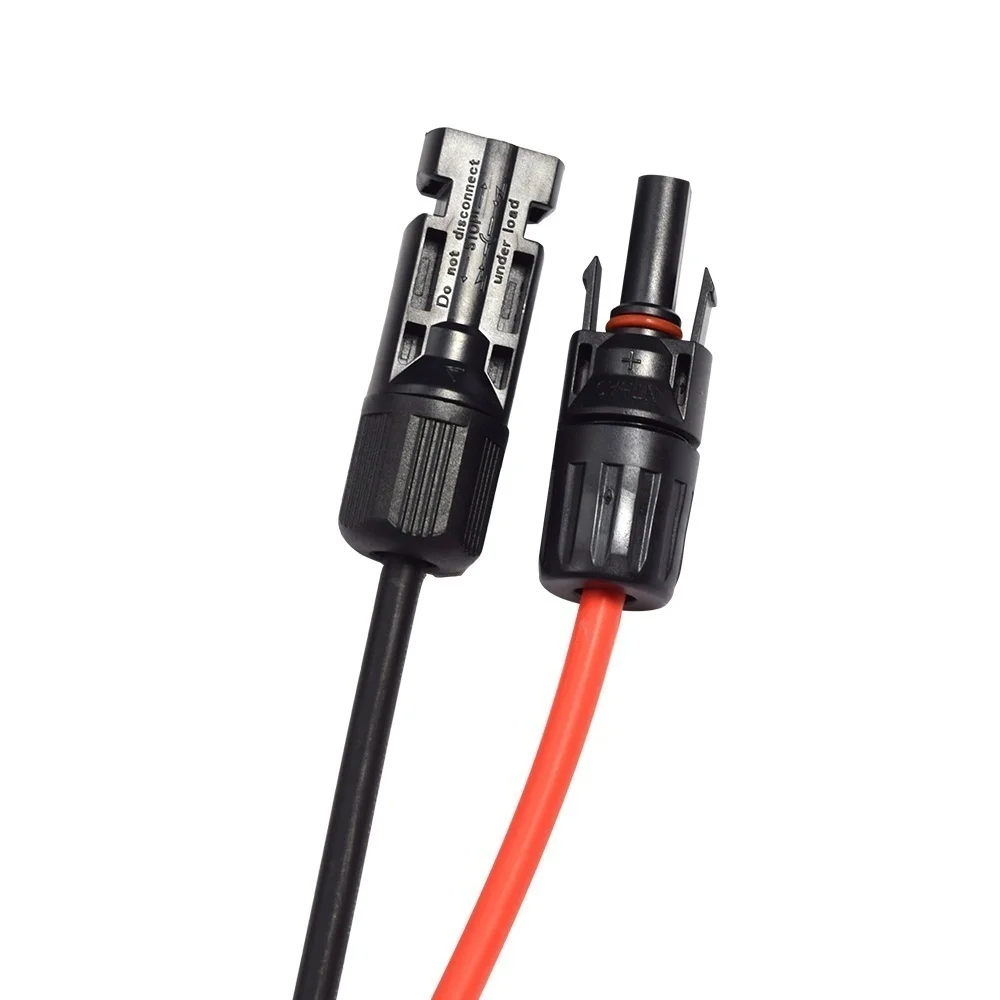

3M Solar Cable For Connecting Solar Panel and Battery Cable
1, this 100W or 200W solar system kits all include 3M solar cable for connecting solar panel to solar charge controller

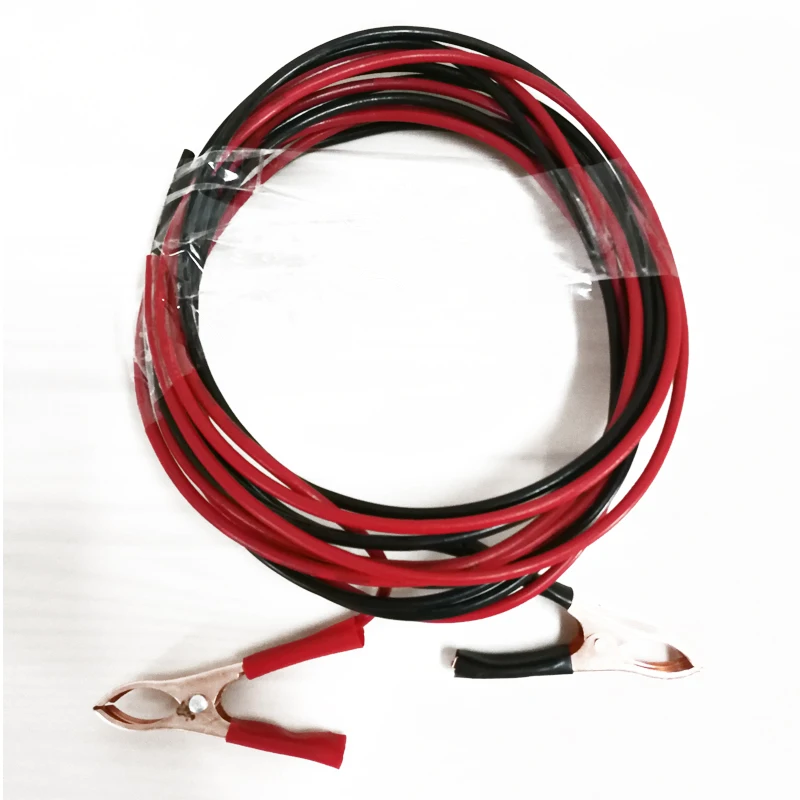

2, also the 100W or 200w Solar system kits include the 3M Battery Cable with Alligator for connecting solar controller to Battery

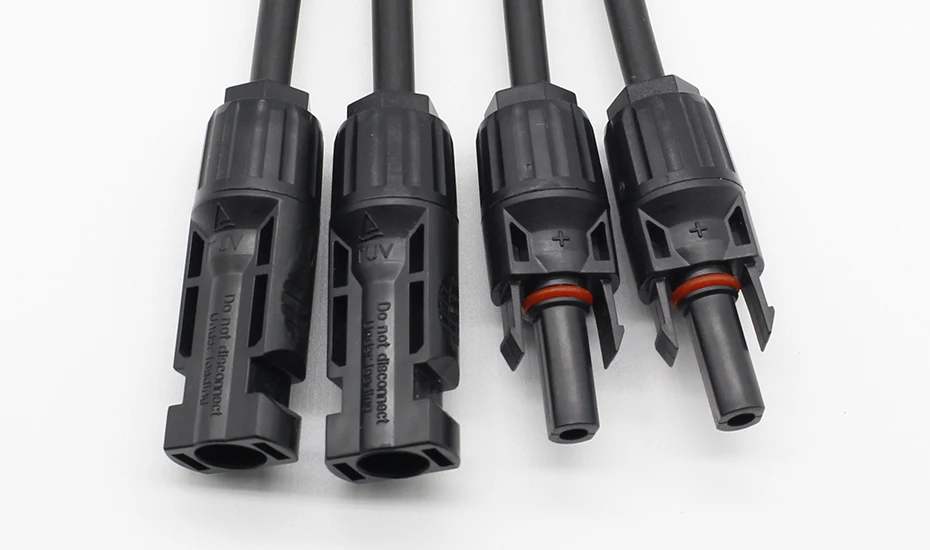

Y type Connectors are only for 200W solar system
Rated Voltage: TUV1000V DC/ UL 600V DC
Rated current: 20A~30A
Suitable cable corss sections
14 AWG~10AWG (2.5MM2,4.0MM2,6.0MM2)
Pin dimension: 4.0MM
Contact material: Copper,tin plated
Housing material: PPO
Degree of protection: IP 67 waterproof
Flame class: UL94V-0
Package
