Solar Panel 80W 12V Flexible Foldable Monocystalline Solar Cell 1M Conjunction Wire for Battery Charger System Kit

$150

SKU: 1005004179262226 Category:

Description

  • Brand Name: ABOUTROSE
  • Origin: CN(Origin)
  • Number of Panels: 1
  • Flexible Solar Panel: No
  • Foldable Solar Panel: No
  • Type: Solar Panel
  • Nominal Capacity: 80w
  • Model Number: BPS 32-80
  • Number of Cells: 32
  • Max. Power: 80
  • Size: 860MM*540MM*2.5MM
  • is_customized: Yes
  • Material: Monocrystalline Silicon

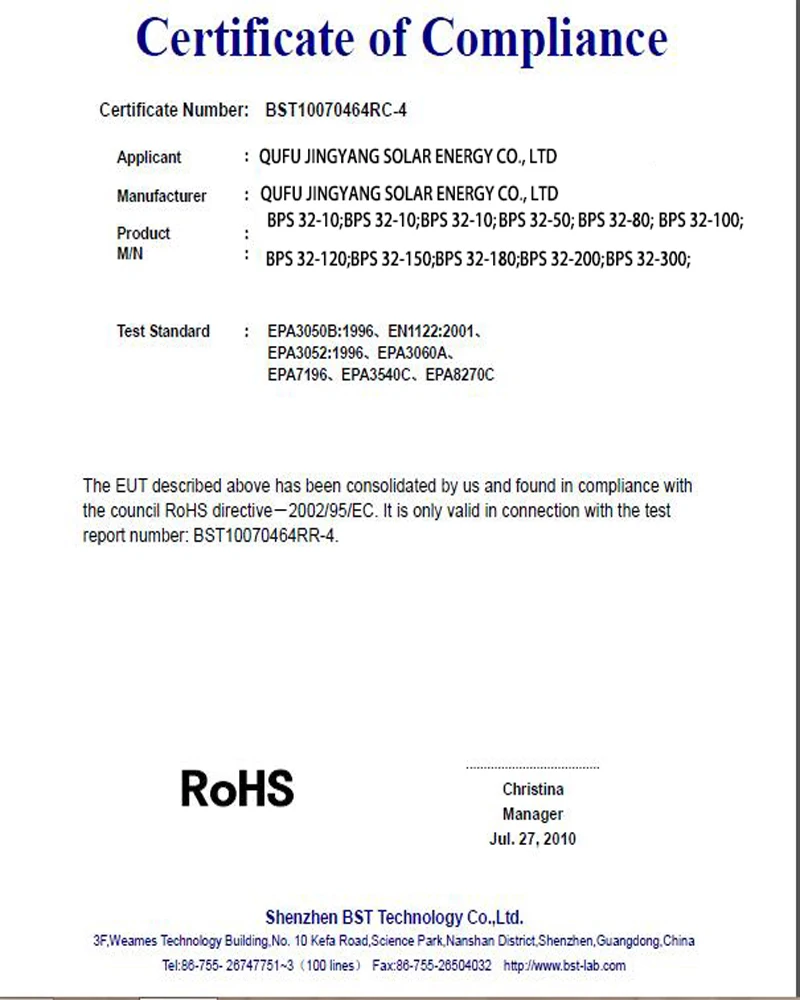

  • Certification: CE
  • semi flexible solar panel: sunpower solar cell
  • 80w flexible solar panel: 30 degree foldable
  • is_customized: Yes

Flexible Solar Panel 80W Semi Flexible Solar Panel 80w  cables on front or back of bracket 30 Degree Maximum

The Plastic cover On Solar Cell which is not for use and it is for protect the solar cell while transportation, so when you use the solar panel, pls remove it!!!

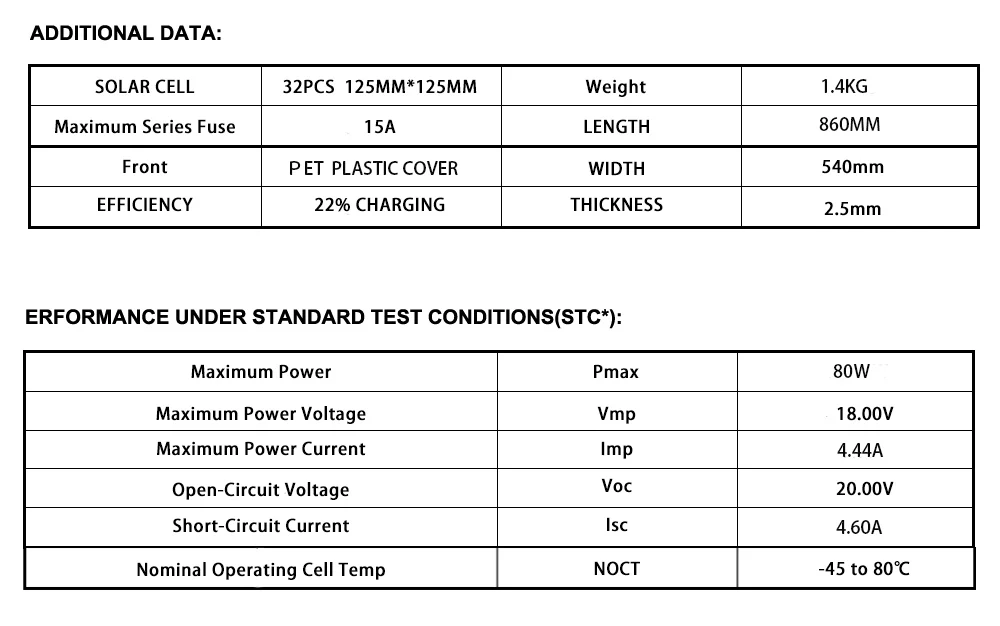

Model:BSP 32-80

Maximum Power(Pmax): 80W

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):4.44A

Open-Circuit Voltage (Voc): 20.00V

Short-Circuit Current (Isc):4.61A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80

Weight: 1.4KG

Dimensions:860mm*540mm*2.5mm

Diode: by-pass diode inside connection box

(The above data is based on the laboratory standard test environment) For field connections,use minimun No.13AWG copper wires insulated for a minimum 90

Standard Test Conditions: AM=1.5 IRRADIANCE=1000W/m2 Temp.=25 (The figures are manually measured and there is a certain error with +-5%.)

100% IP 67 waterproof

PET Plastic Cover For protecting Solar Cell

Bear Hailstorm

Additional information

Ships From

Brazil, China, GERMANY, Italy, Russian Federation, United States
