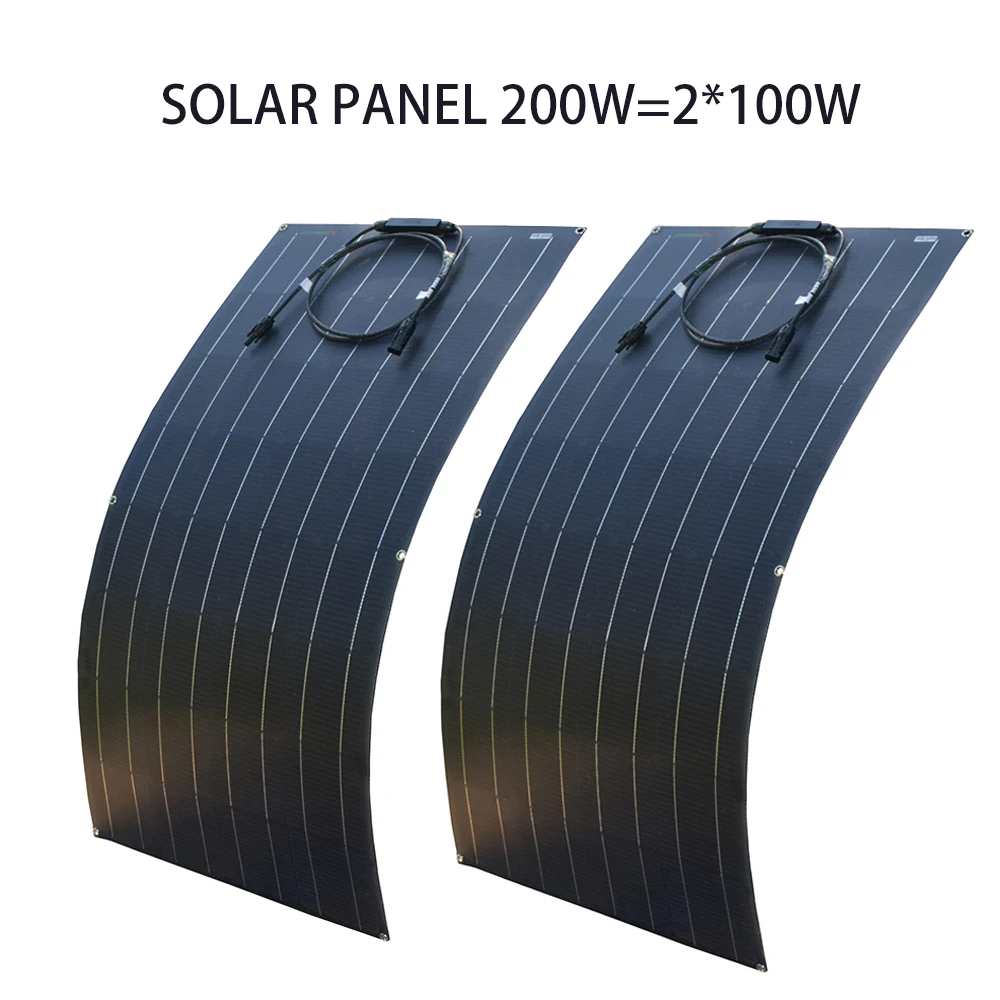

Solar Panel 300w 200w 100w 400w ETFE PET Flexible Panels Solar PV Monocrystalline Cell 12V 24V 1000w Battery Charger System Kit

$132$722

SKU: 32383195932 Category:

Description

  • Brand Name: CNSDPV
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 1
  • Certification: CE
  • Flexible Solar Panel: Yes
  • Type: Solar Panel
  • Nominal Capacity: 100w
  • Size: 1050MM*540MM*2.5MM
  • Model Number: ETFE 32-100
  • is_customized: Yes
  • Number of Cells: 32
  • Material: Monocrystalline Silicon
  • Max. Power: 100w
  • solar panel, solar panel 100w: flexible solar panel, Monocrystalline Silicon
  • solar panel solar cell, solar charger: solar panel 12v solar battery
  • solar panel solar cell: solar panel 100w

Shipping Information

1, For Europe Memeber Countries Client: Ship from Spain or Czech Or German Or France or Poland Warehouse, 2-7 Working days arrival via DHL or Correos or GLS or PPL.

2, For Russia: Ship from Moscow Warehouse, Fast arrival via Russia Post.

3, For Ukraine Client: Ship from Ukraine Warehouse, Fast Delivery

4, For Canada client: Ship from Canada Warehouse via UPS, Fast delivery

5, For Australia Client: Ship from Australia Warehouse, Fast Delivery

6, For Braizl Client: Our Brazil Warehouse will Open Very Soon.

More Oversea Warehouse will open later.

Advantages of JINGYANG ETFE Solar Panels:

Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.

With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.

Product description:

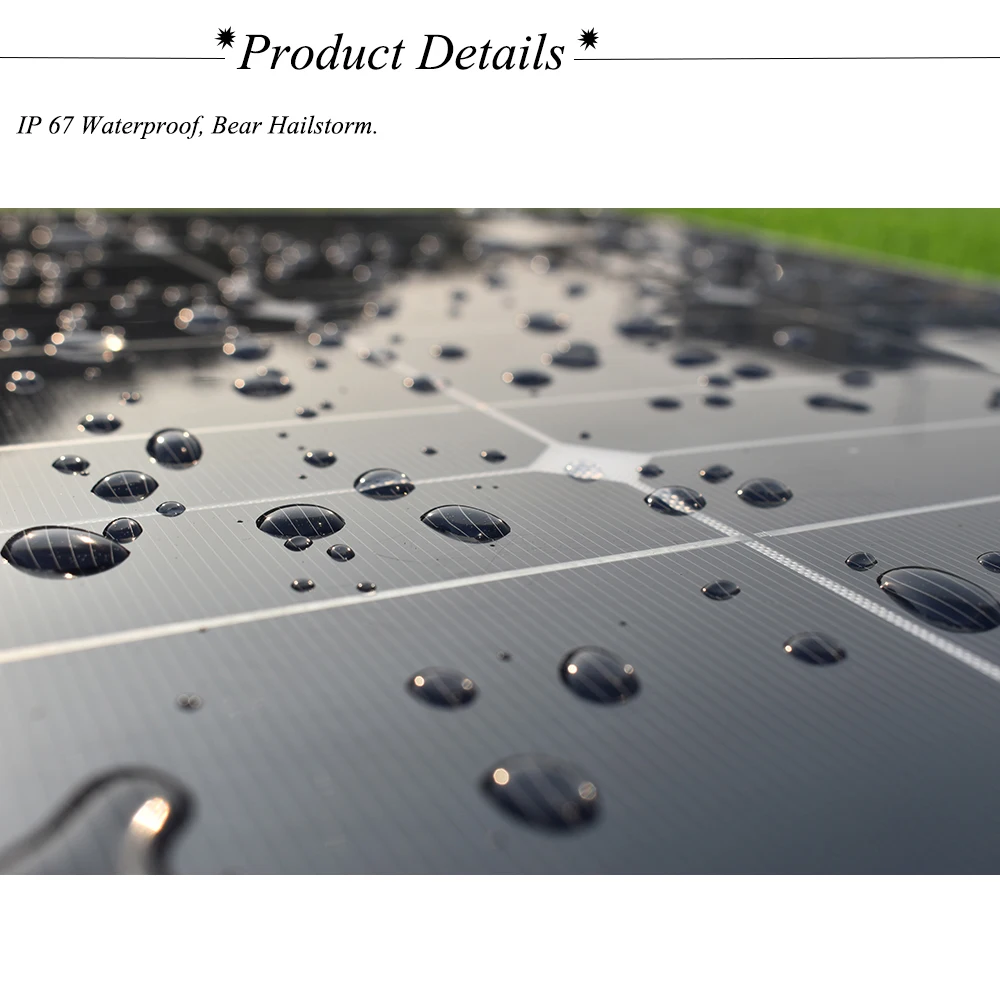

The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

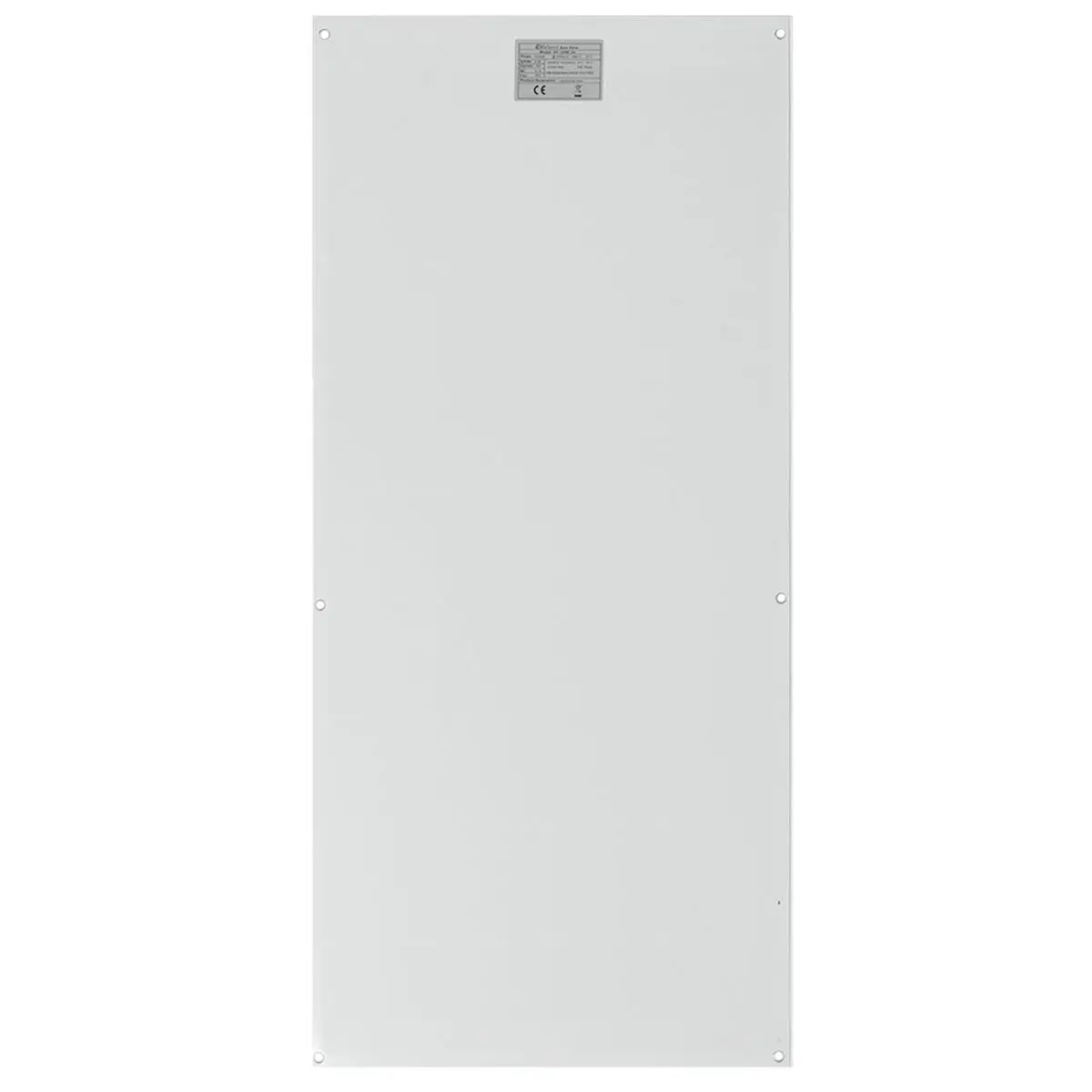

The back has 6 drill holes that can be quickly installed.

Model: ETFE 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)

1 Years Warranty, 8-10 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

PET Flexible Solar Panels

Advantages of JINGYANG ETFE Solar Panels:

Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.

Product description:

The surface is Plstic Cover Film Coating And Four EVA Layers, waterproof, snowproof, resistant to small hail.

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

The back Sidehas 6 drill holes that can be quickly installed.

Model: BSP 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.85kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)

1 Years Warranty, 8-10 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

Additional information

Ships From

Australia, China, Czech Republic, France, GERMANY, Poland, Russian Federation, Spain, United Kingdom

Color

100W ETFE Panel, 100W PET Panel, 200W ETFE Panels, 200W PET Panel, 300w ETFE panels, 300W PET PANEL, 400w ETFE panels, 400W PET PANEL
