Solar Panel 300w 200w 100w 400w ETFE PET Flexible Panel Solar PV Monocrystalline Cell 12V 24V 1000w Battery Charger System Kit

$241$811

SKU: 1005004122756057 Category:

Description

  • Brand Name: NEWCE
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 1
  • Certification: CE
  • Flexible Solar Panel: Yes
  • Type: Solar Panel
  • is_customized: Yes
  • Material: Monocrystalline Silicon
  • Nominal Capacity: 100w
  • Size: 1050MM*540MM*2.5MM
  • Model Number: BPS 32-100
  • Number of Cells: 32
  • Max. Power: 100w
  • solar panel, solar panel 100w: flexible solar panel, Monocrystalline Silicon
  • solar panel solar cell, solar charger: solar panel 12v solar battery
  • solar panel solar cell: solar panel 100w



Shipping Information

1, For Europe Memeber Countries Client: Ship from Spain or Czech or Beligum Or France or Poland Warehouse, 2-7 Working days arrival via DHL or Correos or GLS or PPL.

2, For Russia: Ship from Moscow Warehouse, Fast arrival via Russia Post.

3, For Ukraine Client: Ship from Ukraine Warehouse, Fast Delivery

4, For Canada client: Ship from Canada Warehouse via UPS, Fast delivery

5, For Australia Client: Ship from Australia Warehouse, Fast Delivery

6, For Braizl Client: Our Brazil Warehouse will Open Very Soon.

More Oversea Warehouse will open later.



1, Model:BSP 32-100
2, Maximum Power(Pmax): 100W
3, Maximum Power Voltage(Vmp):18.00V
4, Maximum Power Current (Imp):5.55A
5, Open-Circuit Voltage (Voc): 20.00V
6, Short-Circuit Current (Isc):6.10A
7, Maximum System Voltage: DC1000V
8, Maximum Series Fuse:15A
9, Nominal Operating Cell Temp.(NOCT):-45 to
80℃

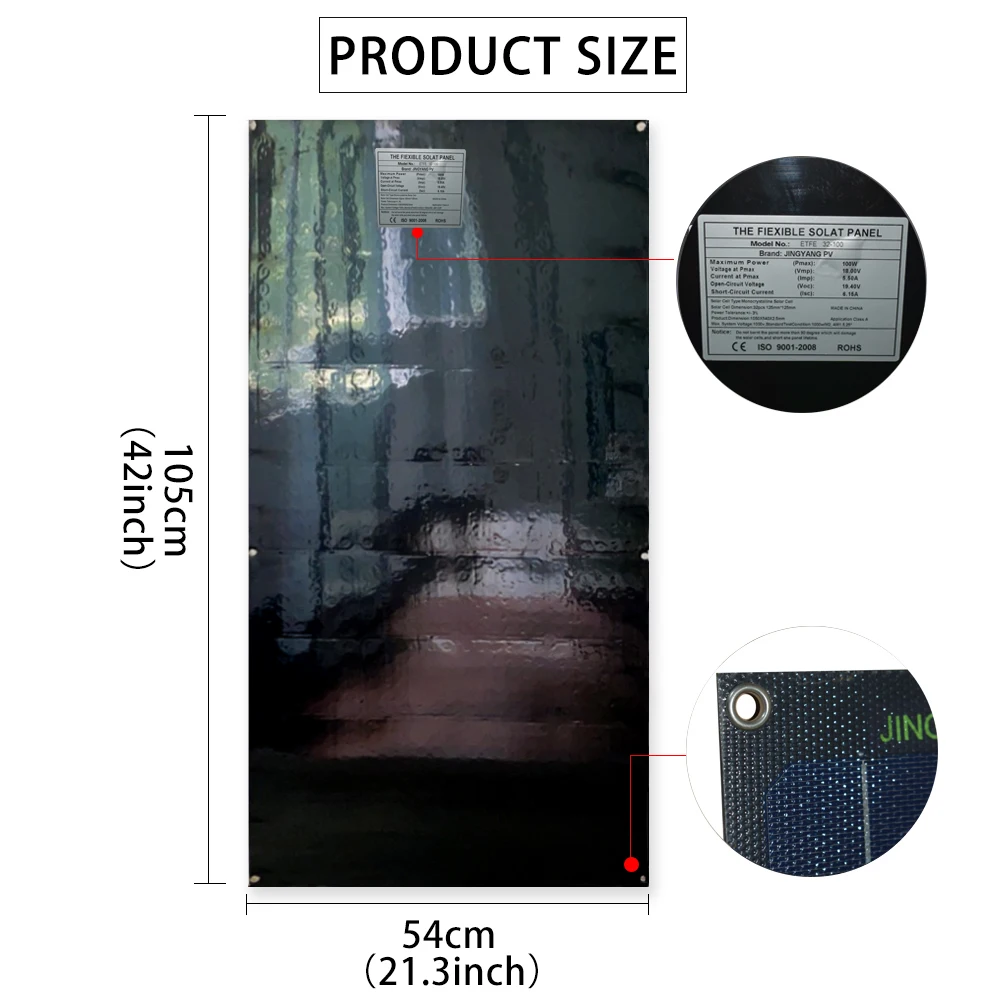

10, Dimensions:1050mm*540mm*2.5mm
11, Panel Weight: 1.85KG
11, Diode: by-pass diode inside connection box
(The above data is based on the laboratory standard test environment) For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃

Standard Test Conditions: AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃ (The figures are manually measured and there is a certain error with +-5%.)





Additional information

Ships From

Brazil, China, GERMANY, Italy, Russian Federation, United States

Color

100W ETFE Panel, 100W PET Panel, 200W ETFE PANEL, 200W PET Panel, 300W PET PANEL, 400W PET PANEL
