Solar Controller 12V/24V 30A 20A 20W 30W Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output


SKU: 1005004106040299 Category:


  • Certification: CE
  • Certification: RoHS
  • Certification: FCC
  • Origin: CN(Origin)
  • Model Number: Solar Charge Controller
  • Application: Thermal Controller
  • Application: Charger Controller
  • Application: Voltage Controller
  • Application: Collector Controller
  • Application: Lighting Controller
  • Application: Solar System Controller
  • Application: Solar Working Station
  • Maximum Current: 30A/20A
  • Solar Panels Battery Charge Controller: Solar Controller

30A/20A Solar Charge Controller 12V 24V Auto PWM Controllers LCD Display 5V Dual USB Output Controller 20W 30W

Bullet Points:

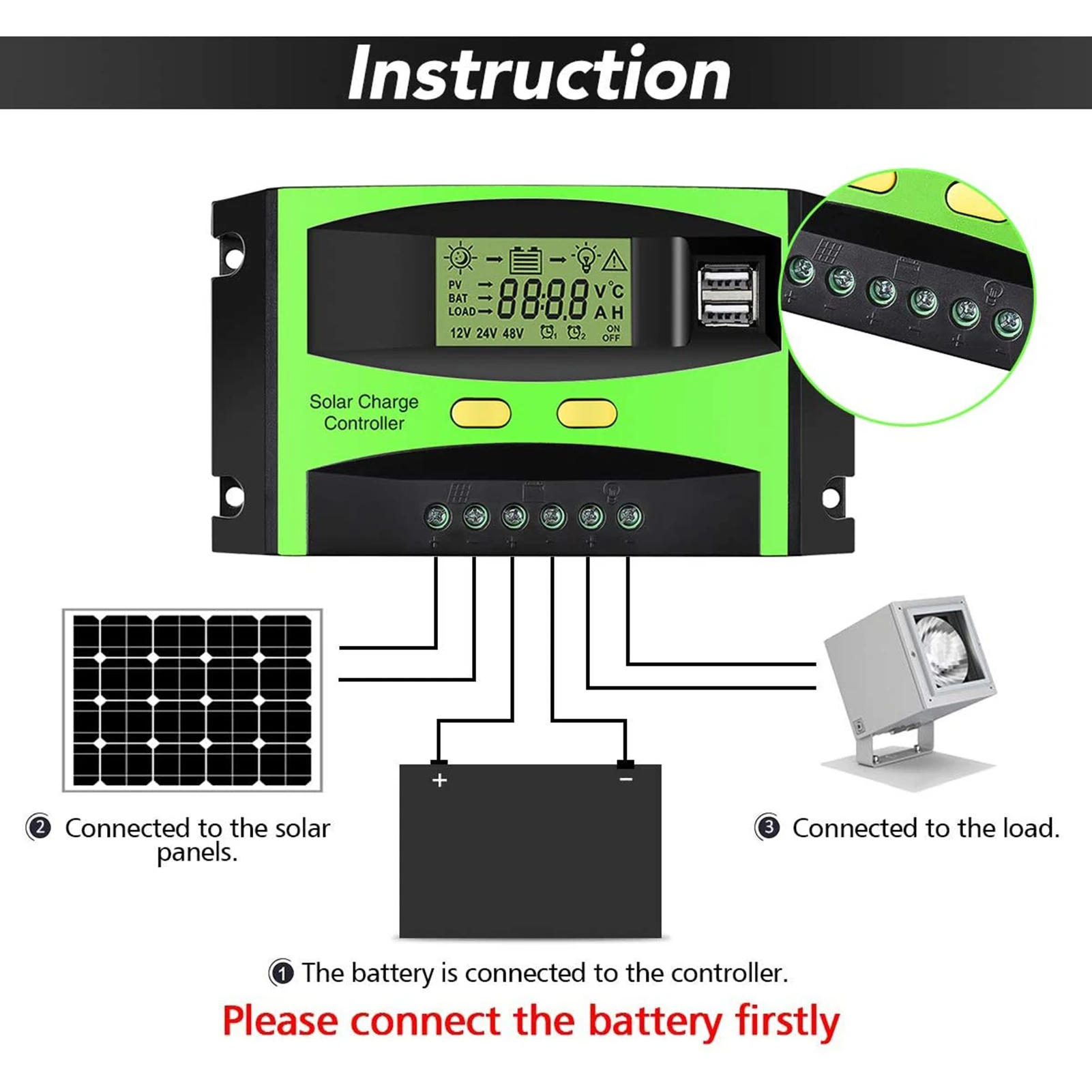

1、Easy to Use: The Solar Charge Controller should be installed as close as possible to the battery, to avoid voltage drop caused by too long wires, thus affecting the normal voltage judgment.
2、Good Heat Dissipation: All electronic components generate heat when operating, it is better to shade them for heat dissipation, avoid direct sunlight or damp places.
3、Reliable Protection: Charge Controller is equipped with overcurrent short circuit protection, reverse polarity protection, low voltage overcharge protection, and has full 3-stage PWM charging management.
4、Dual USB Port: The Solar Controller has dual USB ports, which can automatically recognize 12V/24V, and the charge and discharge current is 20A 30A. Suitable for lead-acid batteries, AGM, GEL, STD.
5、Wide Range of Applications: The Solar Panel Controller is versatile and suitable for solar power generation systems, solar street lights, smart homes, solar light box, etc.


This Solar Charge Controller can automatically manage the work of solar panels and batteries in a solar system. It is easy to set up and operate. Equipped with a liquid crystal display, it can display the status and data, and can easily switch modes and parameter configurations.


Model: BLS960
Application: Solar Panel Energy System
Solar panel type: monocrystalline silicon, polycrystalline silicon
Battery Type: Lead Acid
Controller Type: PWM
Load power (W): 20W/30W
Output Voltage (V): 14.4V/28.8V
Output frequency: DC 12V/24V
Working hours (hours): 24H
Certificate: CE FCC RoHS
Pre-sales project design: Y
Battery Type: Sealed Lead Acid Battery AGM GEL STD
USB output: 5V/2A USBx2

Packing list:

1 x Solar Charge Controller
1 x Instruction

Additional information

Ships From

CN, France, GERMANY, United States


20A, 30A
