Rigid Solid Temper Glass Solar Panel 280w 200W 140w 100w Monocrystalline Solar Cell 12V24V Battery Charger System Kit

$161$702

SKU: 4000583510644 Category:

Description

  • Brand Name: CNSDPV
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 1
  • Certification: CE
  • Flexible Solar Panel: Yes
  • Type: Solar Panel
  • Nominal Capacity: 100w or 140w
  • Size: 1165mm*550mm*30mm or 1025mm*670mm*30mm
  • Model Number: N/M
  • is_customized: Yes
  • Number of Cells: 36 or 24

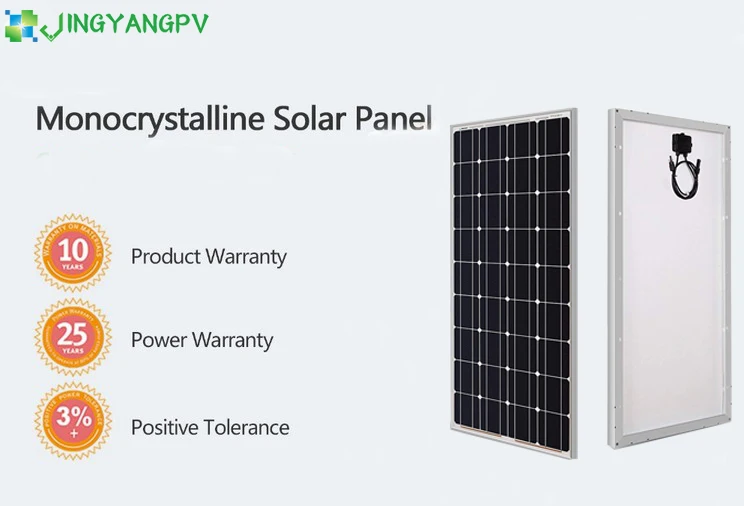

  • Material: Monocrystalline Silicon
  • Max. Power: 120w or 140w
  • solar panel, solar panel 100w or 140w: solar panel, Monocrystalline Silicon
  • solar panel solar cell, solar charger: solar panel 12v solar battery

Advantages of JINGYANG Tempered solar panels:

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.

Product description:

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically

The back has 4 drill hole that can be quickly installed.

Model:CNMYPV100(36)M125-30
Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.90V
Maximum Power Current (Imp):5.30A
Open-Circuit Voltage (Voc): 22.7V
Short-Circuit Current (Isc):5.69A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A
Dimension:1164*550*30mm
Package Weight:7.5kg
Package Dimension:1190*570*60mm
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)

5 Years Warranty, 25 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

Type 3: Solar Panel 140w

24PCS 156MM*156MM Solar Cell; 5.85W/PC

100% IP 67 waterproof

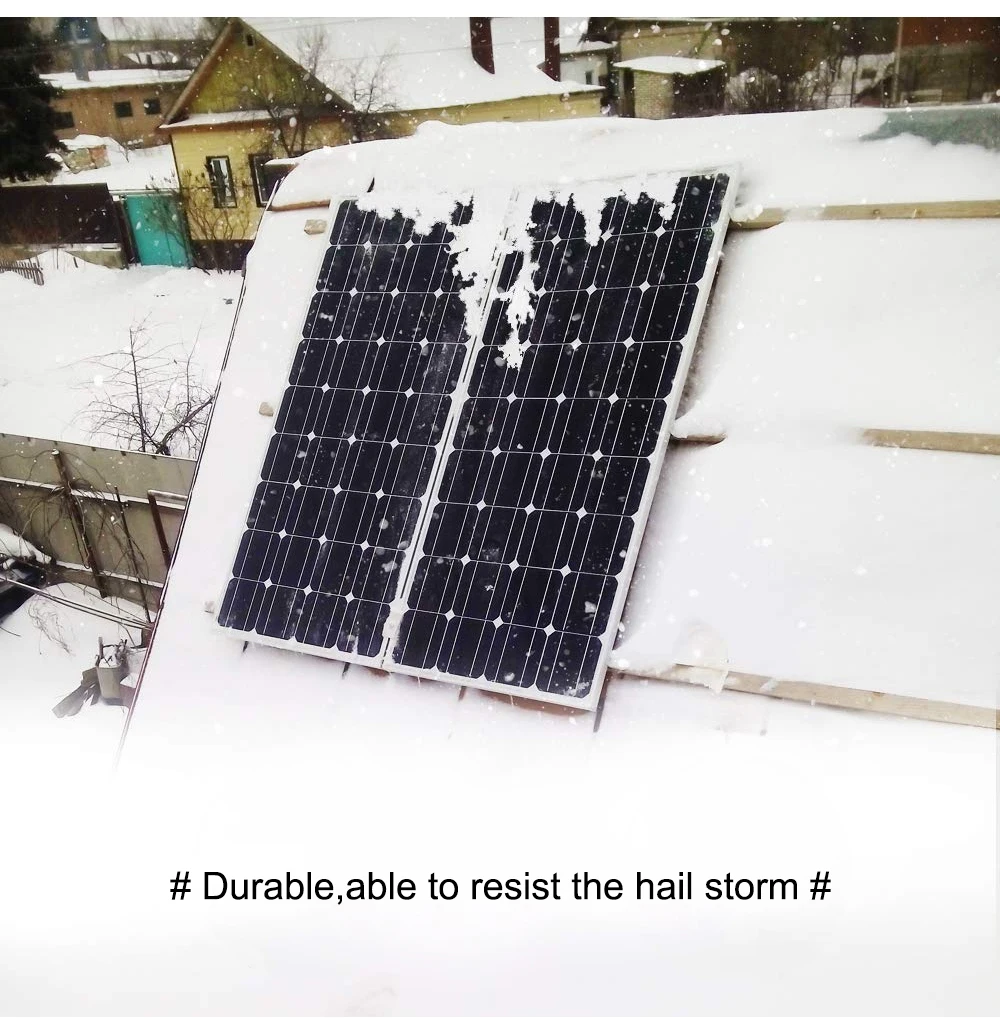

Bear Hailstorm

5 Years Warranty, 25 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

Jingyang Solar Energy is an international high-tech and growing group company, established in 2009, with 10 years’ experience of solar modules manufacturing and PV power generation systems supplying. Our factory covers an area of 10,000 square meters, employing 150 peoples, with an annual production of 500MW, about USD50 million of annual production value.

Jingyang Solar Energy is mainly engaged in crystalline silicon solar cells, modules, photovoltaic systems engineering and the research, manufacturing and sales of PV application products. In the past decades, Jingyang Energy built a wide sales network in global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside portable solar system,etc

Additional information

Ships From

Australia, China, Czech Republic, France, GERMANY, Poland, Russian Federation, Spain, United Kingdom

Color

100w, 140w, 200w, 280w
