MPPT 60A Solar Charge and Discharge Controller Backlight 12V 24V 36V 48V Auto for Vented Sealed Gel Nicd Li Solar Cells Panel


SKU: 1005003298424584 Category:


  • Brand Name: EASUN POWER
  • Origin: CN(Origin)
  • Certification: CE
  • Model Number: ICharger-MPPT-60A
  • Is Smart Device: Yes
  • Application: Lighting Controller
  • Application: Charger Controller
  • Application: Voltage Controller
  • Application: Solar System Controller
  • Application: Solar Working Station
  • Maximum Current: 60A
  • is_customized: Yes
  • Battery System Voltage: 12V 24V 36V 48V
  • Enclosure: IP21
  • Gross weight (Kg): 1.2KG
  • Max Solar Input Voltage: 190VOC
  • Quality: 100% Genuine
  • Rated Solar Charge Current: 60A
  • The maximum PV input power: 12V system (720W) 24V system(1440W)36V system(2100W)48V system(2880W)
  • The maximum PV input voltage (Voc): DC190V
  • Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery
  • Application 1: Charger Controller
  • Application 2: Solar System Controller
  • Application 3: Lighting Controller
  • Application 4: Voltage Controller
  • Model: mppt solar charge controller
  • Name: mppt solar charge controller 60a
  • Type 1: MPPT 60A
  • Type 2: mppt 60a
  • Type 23: controlador de carga mppt

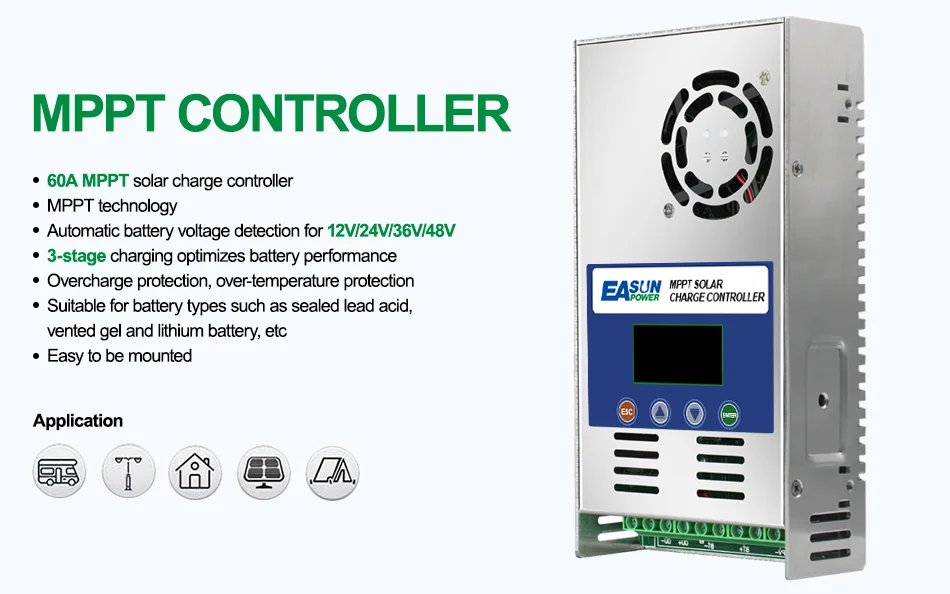

MPPT 60A Solar Charge and Discharge Controller Backlight LCD 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery

100% MPPT controller

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V

Three-stage charging optimizes battery performance

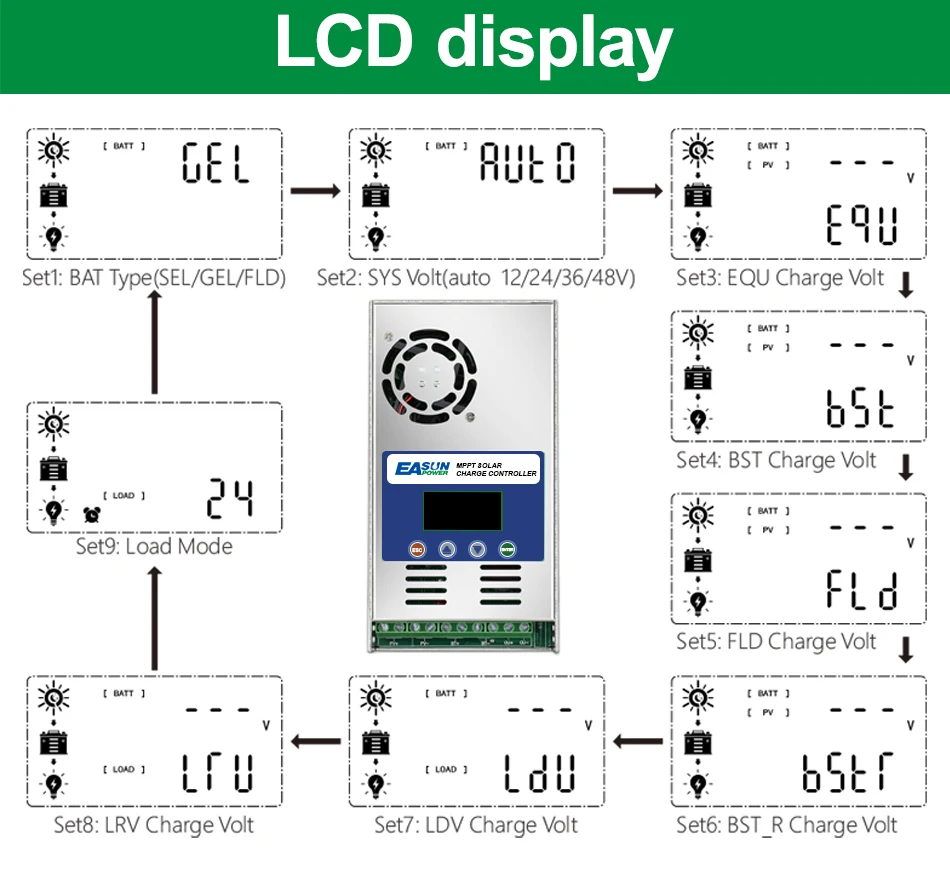

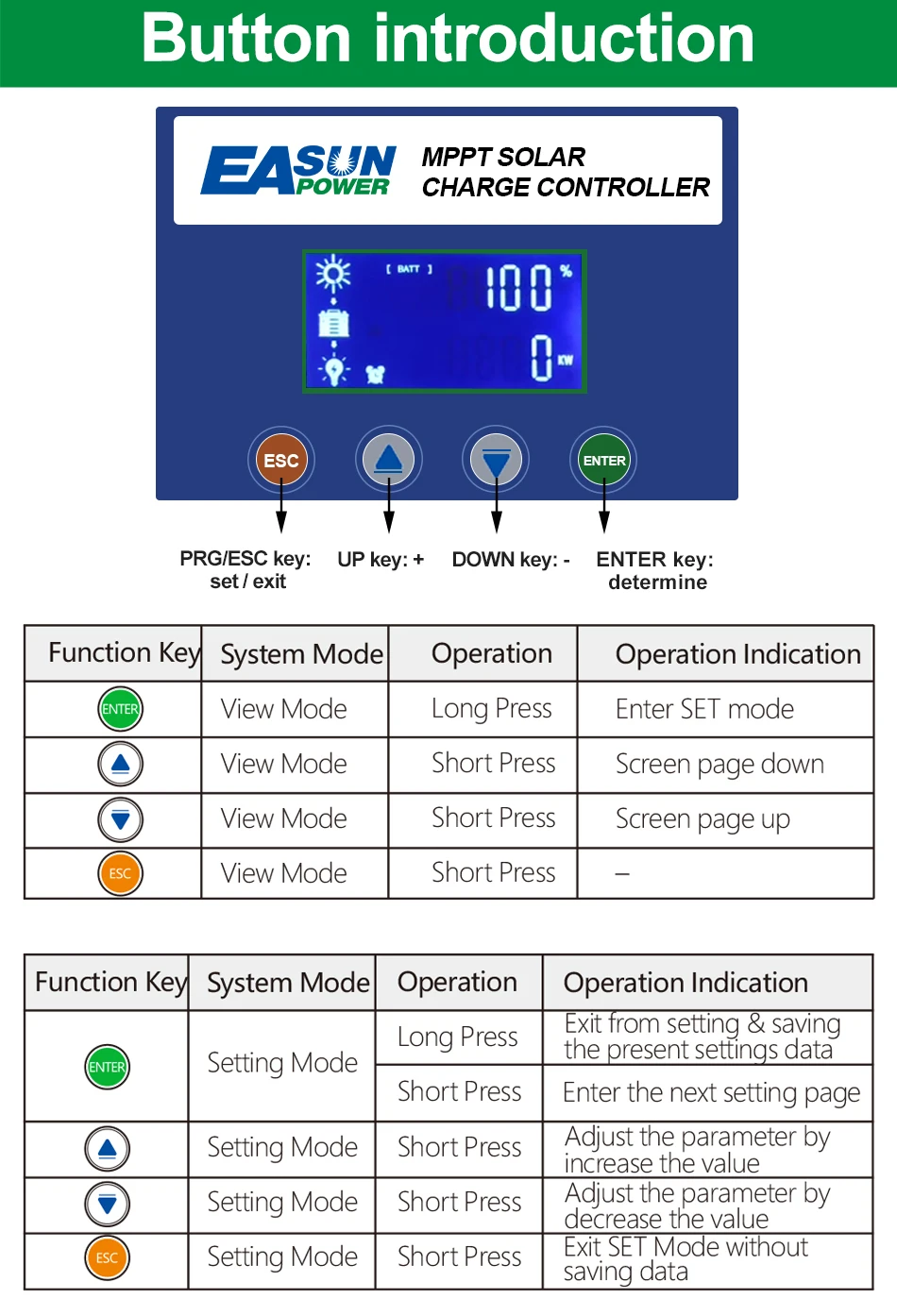

Multi-function LCD displays

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

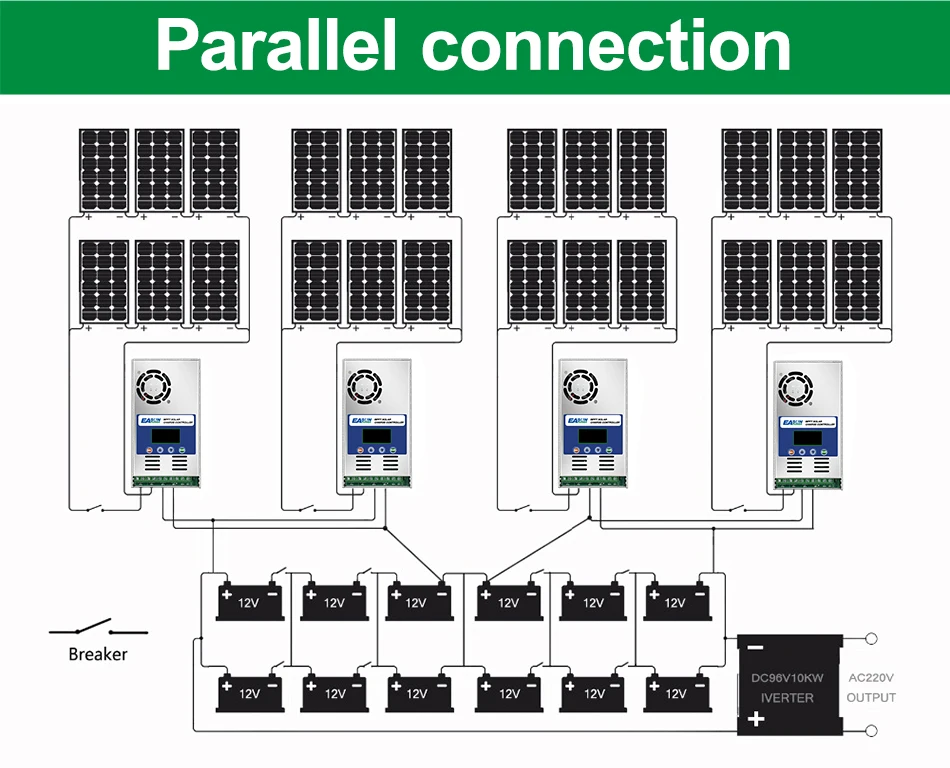

Maximum reach 60A, continuous 40A,!You can Put two pieces 60A in parallel ,So total is MPPT 120A,Support unlimited parallel connection

Free Returns:
We support free local returns within 15 days after receipt in 24 countries. If you are dissatisfied with our product, contact us and you can return the product without paying any shipping costs. We will give you full refund immediately after receiving the goods in the warehouse.
24 Free Local returns countries : Russia, Spain, France, Poland, United Kingdom, Germany, Italy, Netherlands, United States, Canada, Brazil, Australia, Israel, South Korea, Saudi Arabia, United Arab Emirates,Chile, Ukraine, Japan, Mexico, Belgium, Czech Republic, Switzerland, Portugal.

Additional information

Ships From

China, GERMANY, Poland, Russian Federation



Rated Voltage

12V 24V 36V 48V
