Flexible Solar Panel 300w Fotovoltaic Panel Solar 100w 12V Kit 200w Complete for Charge Battery/Motorhome/Camper Van

$193$705

SKU: 1005004088102193 Category:

Description

  • Brand Name: NEWCE
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 4
  • Certification: CE
  • Certification: RoHS
  • Flexible Solar Panel: Yes
  • Type: Solar Panel
  • is_customized: Yes
  • Material: Monocrystalline Silicon
  • Nominal Capacity: 100w
  • Size: 1050*530*2.5mm
  • Model Number: RGN32-100
  • Number of Cells: 32PCS
  • Max. Power: 100W,200W,300W,400W
  • Max Power: 100w/pcs
  • Max Power voltage: 16V
  • Max Power Current: 6.25A
  • Open Circuit Voltage: 19.2V
  • Short Circuit Current: 6.68A
  • Cell size: 125*125MM

Flexible Solar Panel 300w Fotovoltaic Panel Solar 100w 12V Kit 200w Complete for Charge Battery/Motorhome/Camper Van

Shipping information

1, For Europe Memeber Countries Client: Ship from Spain /Czech /Beligum Warehouse, 7-15 Working days arrival via DHL /Correos /GLS / PPL.

2, For Russia: Ship from Moscow Warehouse,
Fast arrival via Russia Post.

However,these area is no service :
Spain:the zip code starts with 35, 38, 51, 52.
France:the zip codestarts with 97
Portugal:the zip code starts with 9
pls not place order with above address,thanks

Packaging List

About 100w/200w/300w Solar panel (solar panel only)

100w solar panel= 1pcs 100w 12v flexible solar panel
200w solar panel= 2pcs 100w 12v flexible solar panels
300w solar panel= 3pcs 100w 12v flexible solar panels
400w solar panel= 4pcs 100w 12v flexible solar panels

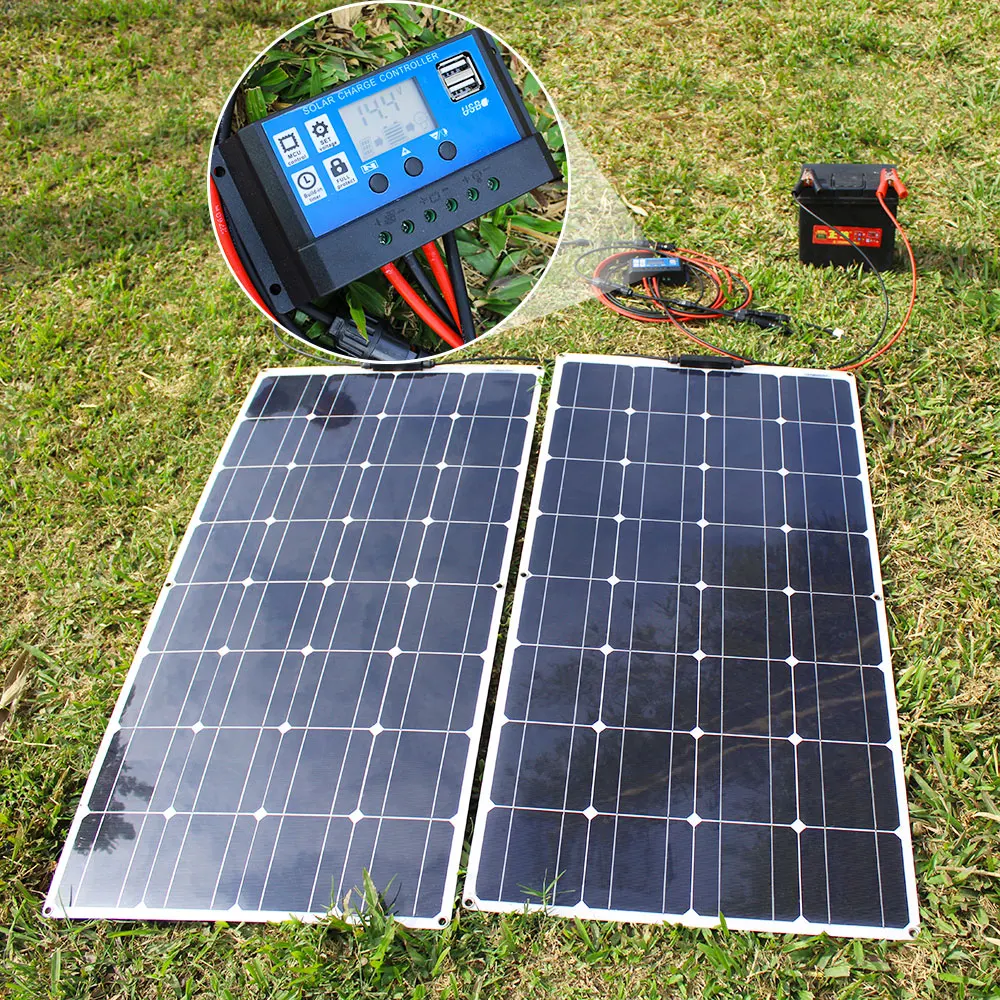

100W solar panel system packing listing

※ 1pcs 100w 12v flexible solar panel
※ 1set 3 meter cable with waterproof connector
※ 1set 1 meter cable with battery clips
※ 1pcs 12V/24V 10A PWM solar charge controller
※ 1 user’s manual

200W solar panel system packing listing

※ 2pcs 100w 12v flexible solar panel
※ 1set 3 meter cable with waterproof connector
※ 1set 1 meter cable with battery clips
※ 1pair 2 in 1 parallel solar adapter
※ 1pcs 12V/24V 20A PWM solar charge controller
※ 1 user’s manual

300W solar panel system packing listing

※ 3pcs 100w 12v flexible solar panel
※ 1set 3 meter cable with waterproof connector
※ 1set 1 meter cable with battery clips
※ 1pair 3 in 1 parallel solar adapter
※ 1pcs 12V/24V 30A PWM solar charge controller
※ 1 user’s manual

Solar Panel Advantages

●Perfect for 12 volt battery charging:
Multiple panels can be wired in parallel for 12v
batteries charging,in series for 24 volt batteries.It is better to use with a controller to protect the battery, The attached cable compatible with Connector, the solar panel can be connect to the solar controller/regulator easily.

●Good bendability:
The solar panel can be curved to a maximum 20 degree arc, allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers, yacht, motorhome, Roofs, or any other irregular surface.

●Lightweight and easy installation:
Only 0.1 inch thick . this solar panel is easy to transport, hang, and remove, 6 stainless eyelets at the edges for easy installation. Fast and inexpensive mounting, easy to transport and mount. It can be affixed by double sticky tapes, zip ties or Velcro, perfect for non-permanent installations.

Specifications:

Material: Monocrystalline
Maximum Power(Pmax): 100W
Maximum Power Voltage (Vmp): 16V
Maximum Power Current (Imp): 6.25A
Open-Circuit Voltage (Voc): 19.2V
Short-Circuit Current (Isc): 6.68A
Maximum System Voltage: DC600V
Net Weight: 1.91kg
Dimension: 1050*530*2.5mm

Material structure:

1 floor: PET
2 floor: EVA Film
3 floor: Monocrystalline Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet
waterproof level:IP67(Junction Box)
The length of the cable is 90cm

●Anti-reflective PET to absorb more sunlight keeping higher output.
●0.5mm EVA keep the solar panel more durable.
●21% high conversion efficiency solar cell.
●TPT to keep the solar panel to get longer lifetime

100W 200W 300W flexible solar panel kit going with your RV, it can power your 12v/24v lead acid battery, portable power station.
Our solar panels are equipped with stainless steel eyelet all around. The back of the solar panels is flat and smooth. You can fix the solar panels to your RV, roof or windows by glue or rope or screw.

Dear buyers, please kindly notice:

The controller in our 100w/200w/300w solar panel kit is PWM type,can only charge lead-acid batteries.

Application

It is widely used to Boats/Sailboats, Yachts, Marine, Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication places.
