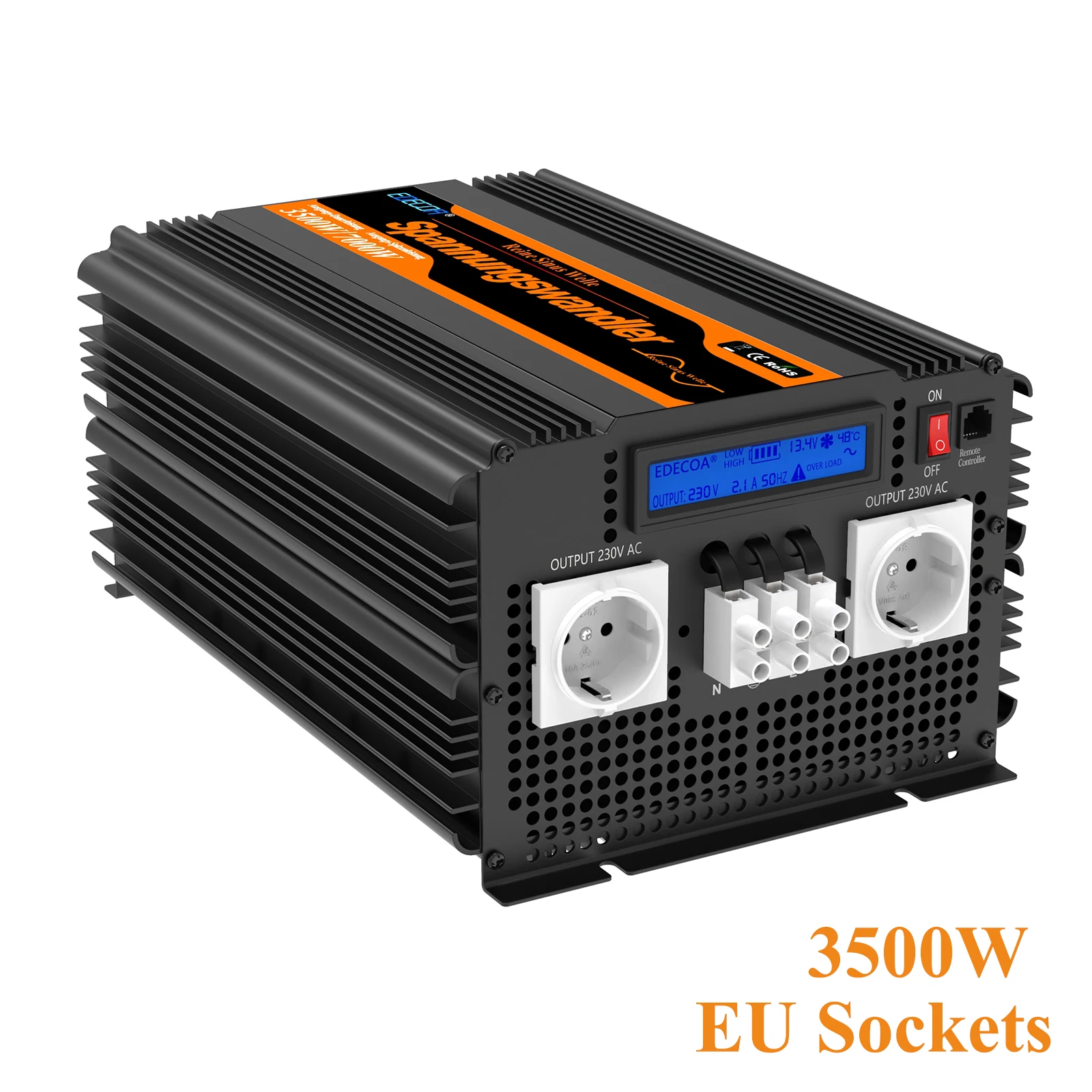

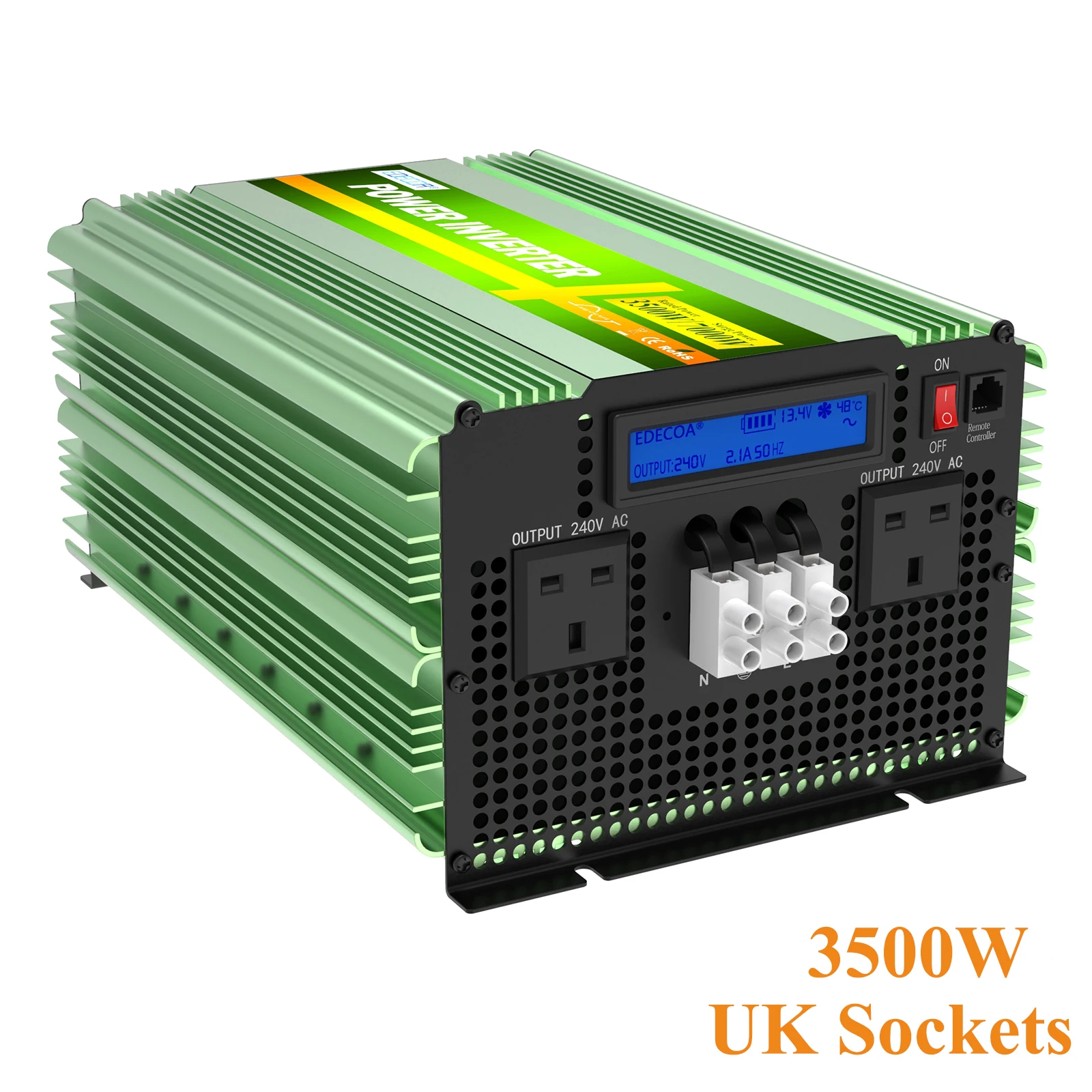

EDECOA 3500W 7000W Power Inverter DC 12V 24V AC 220V 230V 240V Pure Sine Wave Power Inverter 24v 230v


SKU: 4000318956407 Category:


  • Brand Name: EDECOA
  • Type: DC/AC Inverters
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • Size: 35x22x16 cm
  • Model Number: 1922103500L-V3
  • Output Frequency: 50 Hz
  • Output Type: DUAL
  • Output Power: 3500W
  • Weight: 7.2 kg
  • is_customized: Yes
  • Output Current: /
  • Continuous Power: 3500W
  • Surge Power: 7000W
  • DC Input Voltage: 12V
  • AC Output Voltage(EU Plug): 220V 230V 240V
  • AC Output Voltage(USA Plug): 110V 120V
  • Frequency (USA Socket): 60 HZ
  • Frequency(EU Socket): 50Hz
  • AC Output Waveform: Pure Sine Wave
  • Efficiency: >90%
  • DC Input Voltage Range: 10.5V~15V
  • Input Low Voltage Alarm: 10.5V±0.3V
  • Input Low voltage Shutdown Voltage: 10V±0.3V
  • Input High voltage Shutdown Voltage: 15V±0.3V
  • No Load Current: <0.8A
  • Surge Power Duration: 0.1S
  • Battery Cable: (16m㎡x600mm)x2
  • Fan Starting Temperature: ≥ 45 ℃
  • Temperature Protection: 75 ℃
  • Certificate: CE, ROHS
  • Network Cable (RJ45 standard): 4 meters long

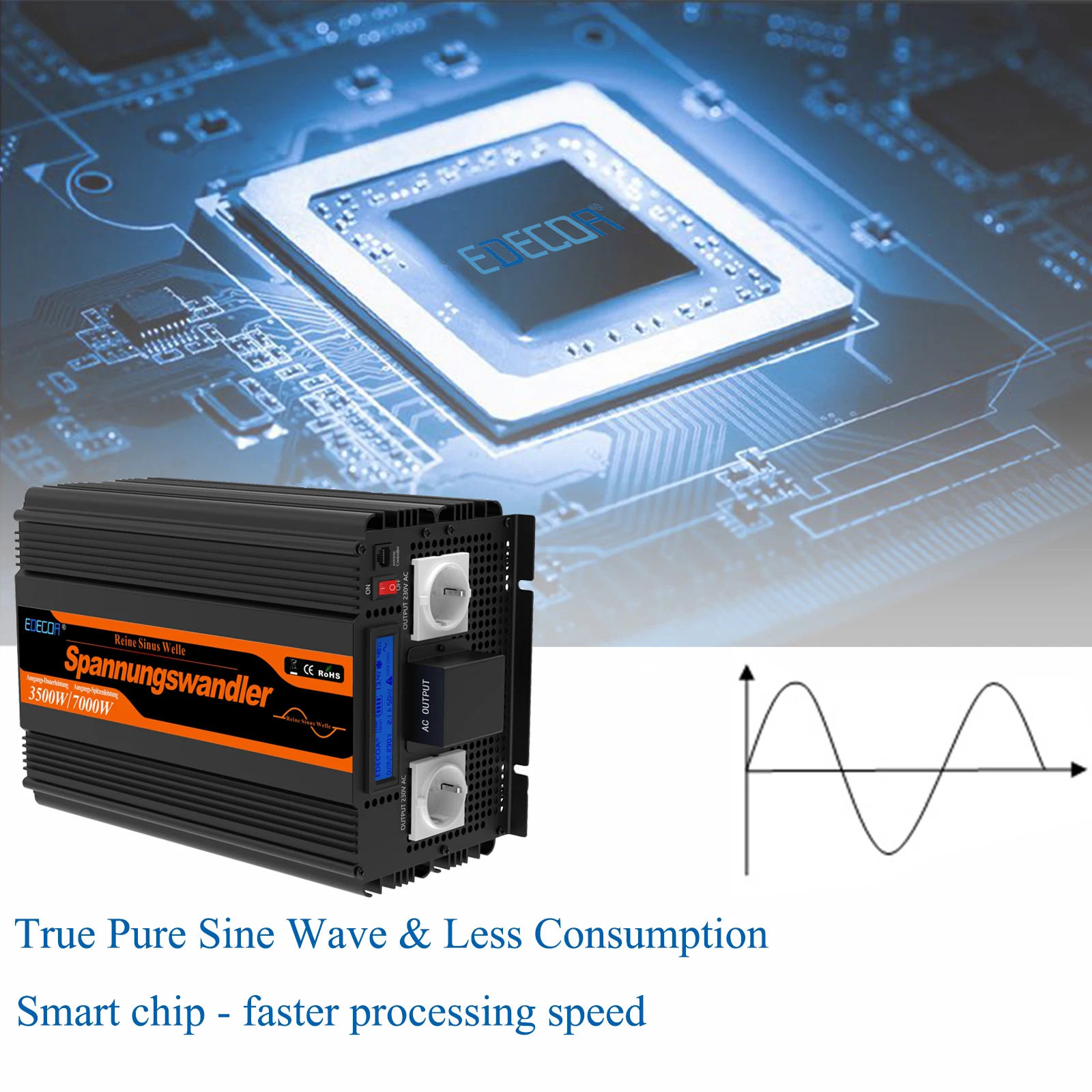

True Pure Sine Wave Inverter

DC to AC Power Inverter 12V 230V can deliver 3500W continuous power /7000W max peak power.
Driven by unipolar SPWM, the output sinusoidal waveform is purer, THD<3%, lower electromagnetic interference.

The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.

High Compatible Power Inverter & Safety Isolation

Pure Sine Wave Inverter 50Hz for inductive, capacitive and Resistive load. 12V off-grid Inverter 230V for RV, solar system, emergency power, garden work, caravan, vessel.

Dual EU Sockets (220V /230V /240V) for coffee machine, fridge, microwave, ice cream machine, vacuum cleaner, electric bicycle, laptop, pool filter, water-pump and more.

Input and output isolation,extra protection for household appliances.

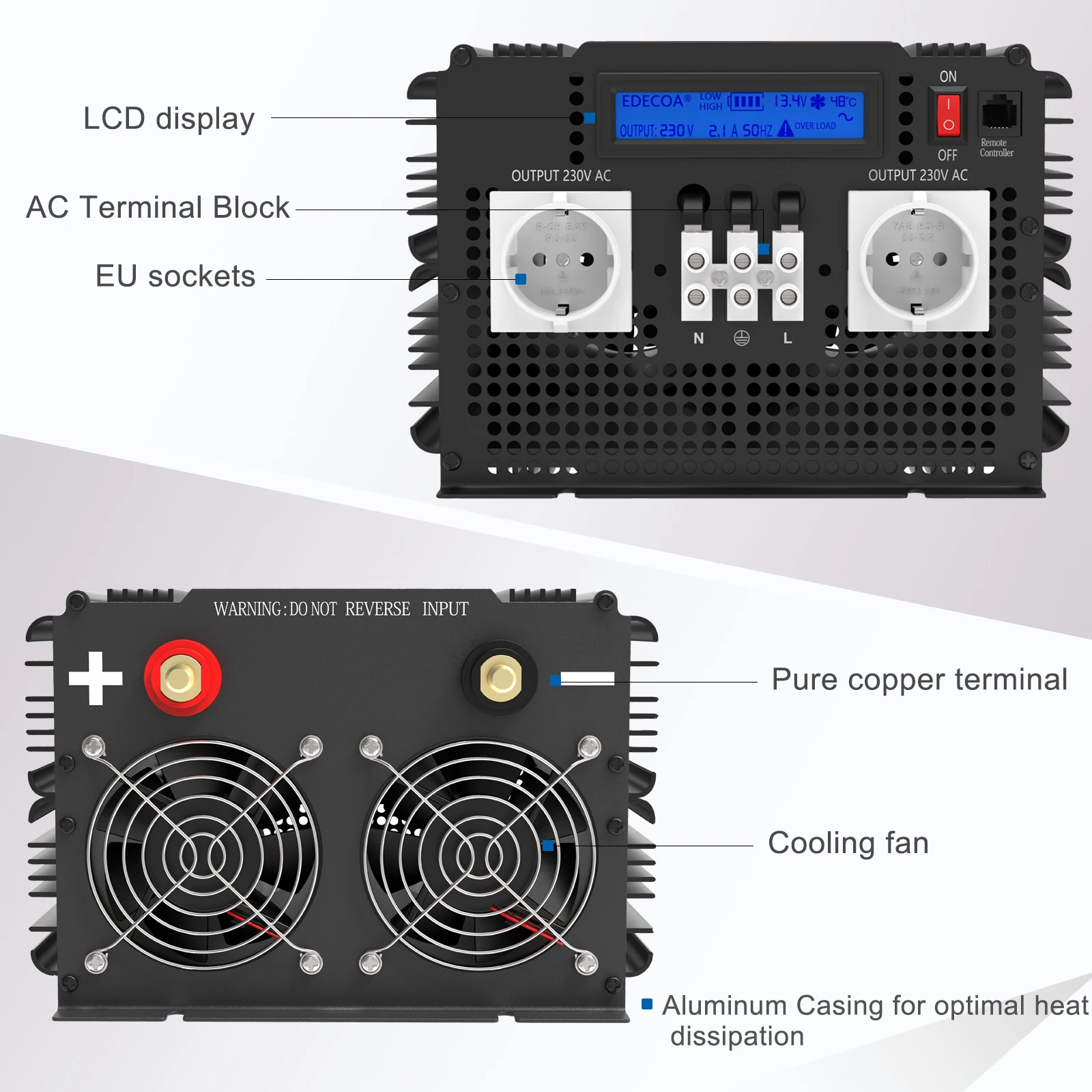

A More Lighter and quieter Inverter

-Anodized Aluminum Casing
Excellent heat dissipation performance and good appearance.
Not easy to scratch or leave marks.
Compared to other metal materials, anodized aluminum is good at corrosion resistance.

-Smart fans design.
To reduce unnecessary waste of battery power and keep quiet, the fan won’t start until the internal temperature is 45℃+.
Above 75℃, the power inverter will stop working to protect the off-grid inverter.

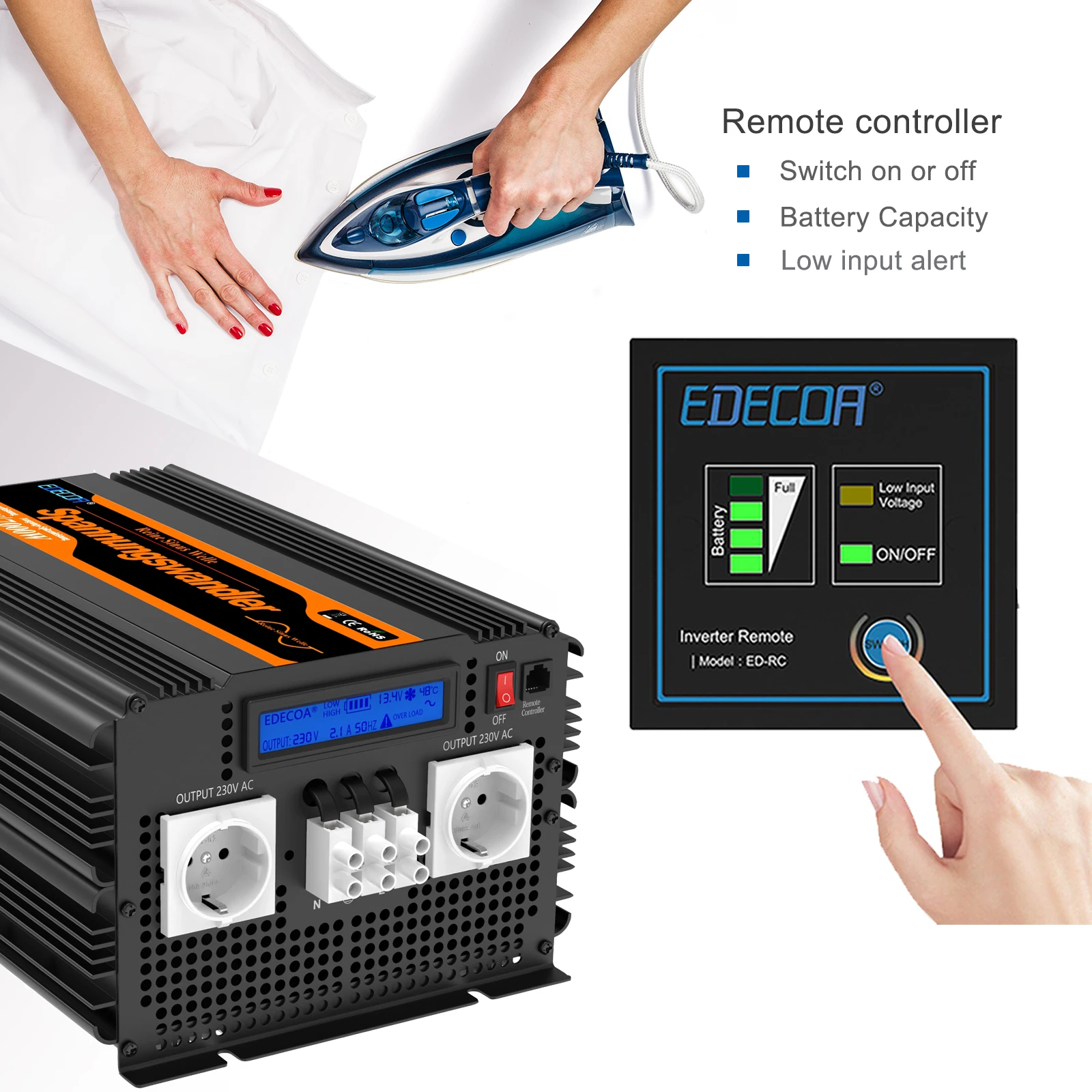

Smart LCD Display & Remote Controller

-Real-time monitoring and beginner-friendly. New version 2.0 multi-function LCD screen.
LCD Display will show input & output voltage, battery capacity, alarm code, and working status.

-86 x 86 cms fixable board with standard RJ45 port and 4 meters cable, you can replace the longer cable to increase remote control distance. For on /off and monitoring battery voltage.

Multi-Protection & Intelligent Alarm

Under voltage, over-voltage, overload, over current, short circuit, over-temperature, and galvanized isolation.
SPWM chips and low resistance MOSFET reduce the interruption of the solar inverter. Work continuously with 90% load pressure.

Smart buzzer designs to provide 5 alarm models for different situations.
More easily find out what is going on for your system.


How to choose a Pure Sine Wave Inverter or Modified Sine Wave Inverter

•If your appliances are resistive loads, such as: bulbs, kettle, it will be ok to choose a modified wave inverter. But if it is inductive loads or capacitive loads, a pure sine wave inverter is the only option. Here are some inductive loads for your reference: precision instruments, air conditioner, fridge, coffee machine, computer, etc.

•The modified sine wave inverter is not suitable to run inductive loads, such as microwave oven, coffee machine, water pump, refrigerator, electric drill, etc

How to choose the battery capacity based on the usage time of the appliance?

Work hours = battery capacity * battery voltage *0.8/load power (H= AH*V*0.8/W)
The electricity loss and battery condition are not considered, so the value is only for reference.
