EDECOA 1500W 2000W 2500W 3500W Off Grid Converter 12V 24V DC AC 220V 230V 240V Pure Sine Wave Power Inverter

$350$620

SKU: 4000483939143 Category:

Description

  • Brand Name: EDECOA
  • Type: DC/AC Inverters
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • Size: 43x15x12.5 cm
  • Model Number: 1922102500L-V3
  • Output Frequency: 50 Hz
  • Output Type: DUAL
  • Output Power: 2500W
  • Weight: 4.72 kg
  • is_customized: Yes
  • Output Current: /
  • Continuous Power: 2500W
  • Surge Power: 5000W
  • DC Input Voltage: 12V
  • AC Output Voltage: 220V 230V 240V
  • AC Output Frequency: 50Hz
  • AC Output Waveform: Pure Sine Wave
  • Efficiency: >90%
  • DC Input Voltage Range: 10.5V~15V
  • Input Low Voltage Alarm: 10.5V±0.3V
  • Input Low voltage Shutdown Voltage: 10V±0.3V
  • Input Over voltage Shutdown Voltage: 15V±0.3V
  • No Load Current: < 0.8A
  • Surge Power Duration: 0.1S
  • Battery Cable: 25m㎡x600mm
  • Network cable (RJ45 standard): 4 meters long
  • Fan Starting Temperature: ≥ 45 ℃
  • Temperature Protection: 75 ℃
  • Certificate: CE, ROHS

LCD DISPLAY

Real-time monitoring and beginner-friendly. New version 2.0 multi-function LCD screen.
LCD Display will show input & output voltage, battery capacity, alarm code, and working status.

SOFT START and 90% EFFICIENCY

The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.

TRUE PURE SINE and LESS ELECTROMAGNETIC INTERFERENCE

DC to AC Power Inverter 12V 230V can deliver 2500W continuous power /5000W max peak power. Driven by unipolar SPWM, the output sinusoidal waveform is purer, THD<3%, lower electromagnetic interference.

ANODIZED ALUMINUM CASING

Excellent heat dissipation performance and good appearance. Not easy to scratch or leave marks. Compared to other metal materials, anodized aluminum is good at corrosion resistance.

Details

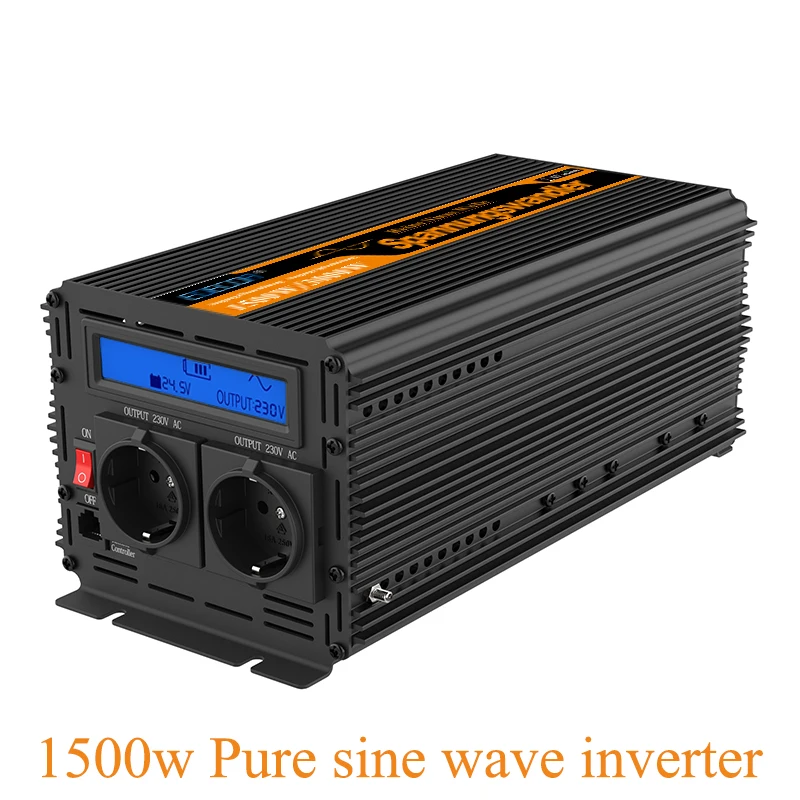

1500w DC to AC Pure sine wave inverter

Dimension: 30x15x12.5 cm
Weight:3.2 kg
Continuous power:1500w
Peak power:3000w (0.1s duraction)
DC input voltage: 12v / 24v
AC outpur voltage: 220V 230V 240V
Battery Cable(cross section*length):16m㎡x750MM

2000w DC to AC Pure sine wave inverter

Dimension: 35 x 15 x 12.5 cm
Weight:3.9 kg
Continuous power: 2000w
Peak power: 4000w (0.1s duraction)
DC input voltage: 12v / 24v
AC outpur voltage: 220V 230V 240V
Battery Cable(cross section*length):25mm²*600MM

2500w DC to AC Pure sine wave inverter

Dimension: 43 x 15 x 12.5 cm
Weight:4.72 kg
Continuous power: 2500w
Peak power: 5000w (0.1s duraction)
DC input voltage: 12v / 24v
AC outpur voltage: 220V 230V 240V
Battery Cable(cross section*length):25m㎡x600MM

3500w DC to AC Pure sine wave inverter

Dimension: 35 x 23.5 x 17 cm
Weight:7.2 kg
Continuous power: 3500w
Peak power: 7000w (0.1s duraction)
DC input voltage: 12v
AC outpur voltage: 220V 230V 240V
Battery Cable(cross section*length):(16mm²*600MM)*2 pairs

Additional information

Ships From

CN, GERMANY

Color

1500W, 2000W, 2500W, 3500W

Input Voltage

12V, 24V

Output Voltage

220-240V NO USB

Socket Type

Germany
