Easun Power 5000VA 4000W 220VAC 48V Hybrid Solar Inverter Pure Sine Wave Output Built-in PWM 50A Solar Charge Controller

$650$796

SKU: 1005002976525643 Category:

Description

  • Brand Name: EASUN POWER
  • Type: DC/AC Inverters
  • Certification: CE
  • Origin: CN(Origin)
  • Size: 140 x295 x540 mm
  • Model Number: ISolar SPL 5K
  • Output Frequency: 50hz/60hz
  • Output Type: Single
  • Output Power: Other
  • Weight: 11.0kg
  • is_customized: Yes
  • Output Current: load
  • Model: ISolar SPL 5K
  • Grid Type: off-Grid Inverter
  • Circuit Topologies: Half-Bridge Type
  • Type: DC/AC Inverters
  • Usage A: Solar Inverter 48V
  • Usage B: pure sine wave inverter
  • Usage C: Hybrid Inverter
  • Feature: Inverter Charger
  • Input Voltage: 220~240Vac
  • Output Voltage: 220~ 240V AC
  • Battery Voltage: 48 VDC
  • Maximum Charge Current: 60A
  • Maximum PV Array Power: 2400W
  • PV Array Open Voltage: 105VDC
Note to EU customers:

We opened a new European store,NO VAT!!NO TAX!!The price drops by 30-300 Euros!Click on the picture to enter the EU Store.

If you have other questions, please contact us.


Easun Power 5000VA 4000W 220VAC 48V Hybrid Solar Inverter Pure Sine Wave Output Built-in PWM 50A Solar Charge Controller

Logistics Notice:
1) Shipping from Poland/Germany :
For All European Union Country, Send by DHL, No custom duty, delivery time is about 3-5 days;
Selling price is a little expensive than price Shipping from China.
2) Shipping from China :
Need to pay for 50-80 Euro for custom duty.
( For Europe buyer, all parcel with Value more than 19 Euro,need to pay import tax duty.)
Our selling price is not including custom duty.
Kindly check the best shipping way before place the order.
Thanks for your attention.
ISolar SPL 5KVA is a Competitive Cost 5KVA Continuous Surge, 48Vdc input Pure Sine Wave Inverter Charger.
It is PWM Solar Inverter 5KVA 4000W Off Grid Inverter 48V to 220V 50A PWM Inverters Pure Sine Wave Inverter Hybrid Solar Inverter With 60A AC Charger Battery Charger For Home Use.
Design with ac input /output 220-240vac single phase only. ( not Split phase 110/220vac)

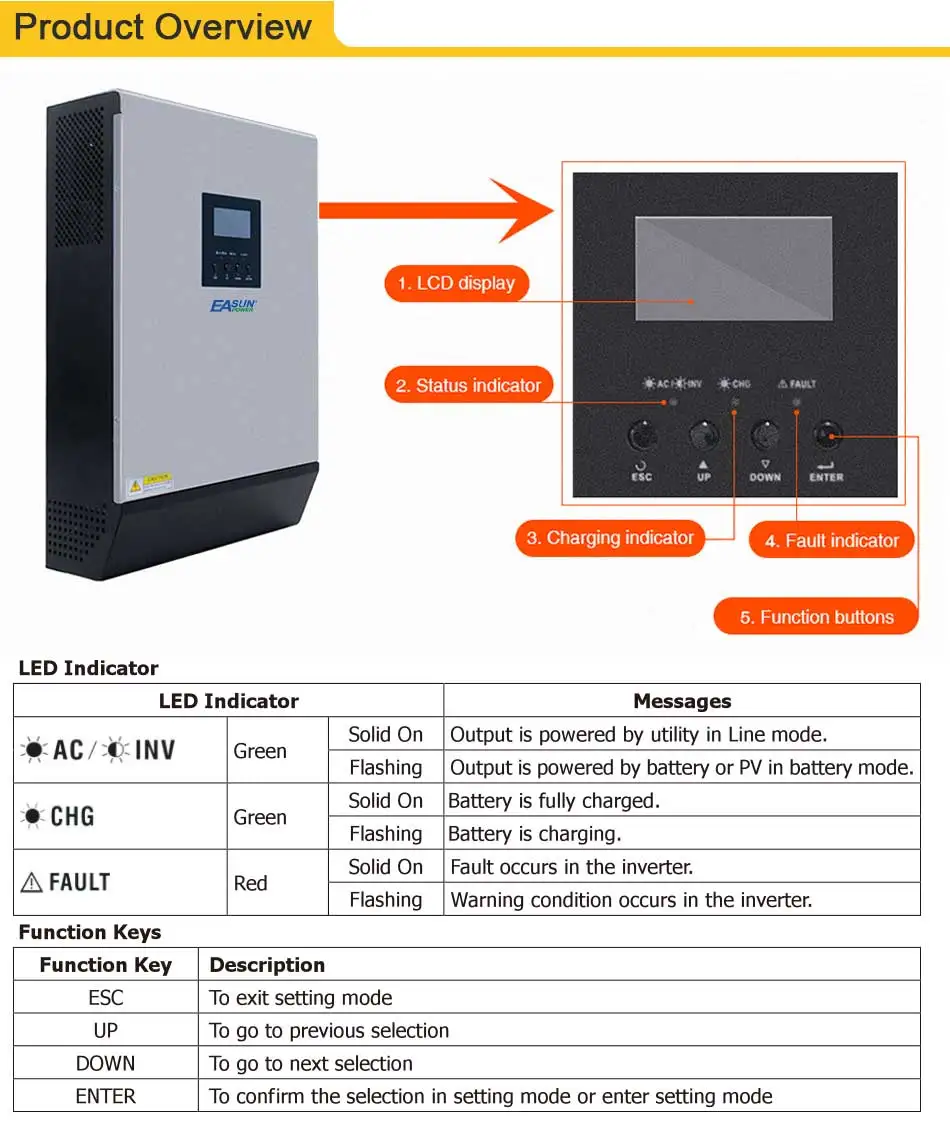

This is multi-function inverter/charger ,combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
Features:
Pure sine wave inverter
Built-in PWM solar charge controller
Configurable input voltage range for home applicances and personal computers via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/over temperature/ short circuit protection
Smart charging system optimizes battery performance
Cold start function
MODEL
ISolar SPL 5K
Rated Power
5000VA/4000W
INPUT
Voltage
230VAC
Selectable Voltage Range
170-280 VAC(For Persongl Computers) ; 90-280 VAC(For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensig)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Sutge Power
10000VA
Efficiency(Peak)
93%
Transfer Time
10 ms (For Personal Computers) ; 20 ms (For home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER
Battery Voltage
48 VDC
Floating Charge Voltage
54 VDC
Overcharge Protection
60 VDC
Maximum Charge Current
60A
SOLAR CHARGER(OPTION)
Charging Current
50A
Maximum PV Array Power
2400W
Maximum PV Array Open Voltage
105 VDC
Standby Power Consumptio
2 W
PHYSICAL
Dimension,D×W×H (mm)
128×272×355
Net Weight(kgs)
9.8

Package Including :

  • The unit x 1

  • User Manual(English) x 1

  • Communication cable x 1

  • Software CD x 1


PAYMENT/SHIPPING:
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are Buyer’s responsibility.
Please check with your country customs office to determine what these additional costs will be prior to bidding/buying.
For custom clearance procedure, If you need help, please let us know
Shipping Notice:
Remote area addition fee (FedEx & DHL)
A Remote Area is defined as a post code or in the absence of post code, a suburb /town name that is difficult to serve. A delivery to one of the following post codes and towns would attract a Remote Area surcharge.
For Import Express shipments, a pickup from one of the same post codes and towns would attract a Remote Area surcharge. Please refer to your service guide for the surcharge amount in local currency
WARRANTY/QUALITY:
CE certified.
100% QC before shipment.
Standard 1 year product warranty
Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable
we will provide free pcb board during the warranty,but buyer need to pay for the shipment fee.
Contact us directly for warranty issues
Buyer is responsible for warranty return shipping.

Additional information

Ships From

China, GERMANY, Russian Federation

Color

SPL 5K

Input Voltage

48V

Output Voltage

220-240V
