Dokio 16V 100W Portable Flexible Solar Panel For Home Monocrystalline Waterproof Solar battery Charge 12V Solar panel China 300W

$146$636

SKU: 1005001867636624 Category:

Description

  • Brand Name: DOKIO
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 1
  • Certification: CE
  • Flexible Solar Panel: Yes
  • Type: Solar Panel
  • Nominal Capacity: NONE
  • Size: 105x54mm
  • Model Number: 16VDFSP-100M
  • is_customized: Yes
  • Number of Cells: 32Cell
  • Material: Monocrystalline Silicon
  • Max. Power: 100W

Dokio 12V 16V 100W Monocrystalline Flexible Solar Panel Portable 100W Panel Solar For Car/Boat/Home Panel Solar 100w China

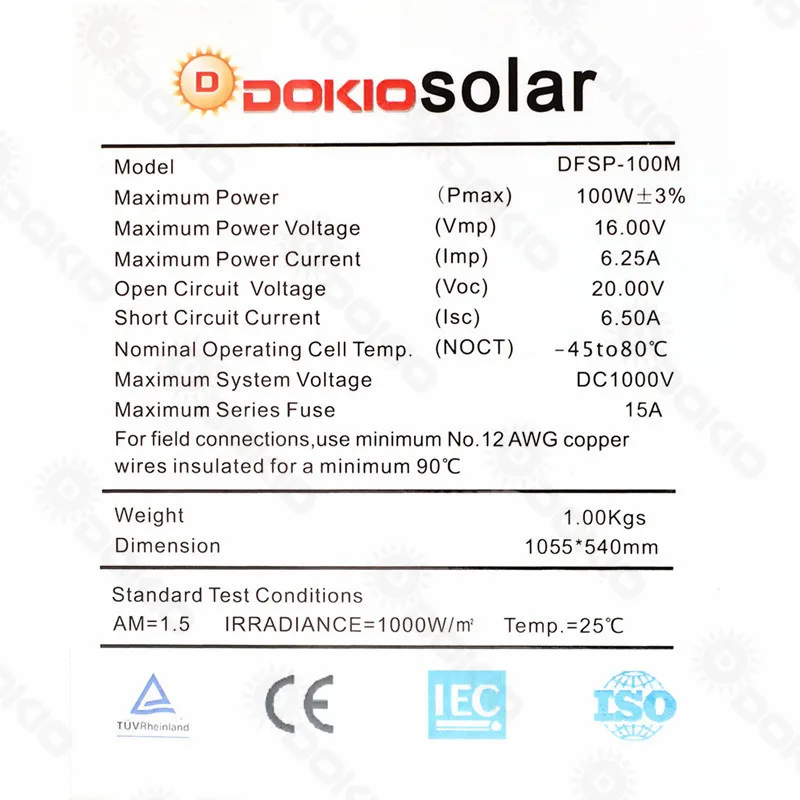

Specifications:

Model:16VDFSP-100M
Material:Monocrystalline Silicon
Maximum Power(Pmax):100W
Maximum Power Voltage (Vmp):16V
Maximum Power Current (Imp):6.25A
Open-Circuit Voltage (Voc):20V
Short-Circuit Current (Isc):6.5A
Nominal Operating Cell Temp.(NOCT):-45to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Net Weight:1.1kg
Dimension:1055*540mm
Package Weight:2.8kg
Package Dimension:1100*580*60mm
Package List:100W 16V Flexible Solar panels(The length of the cable is 60-70cm)
Material structure:
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet

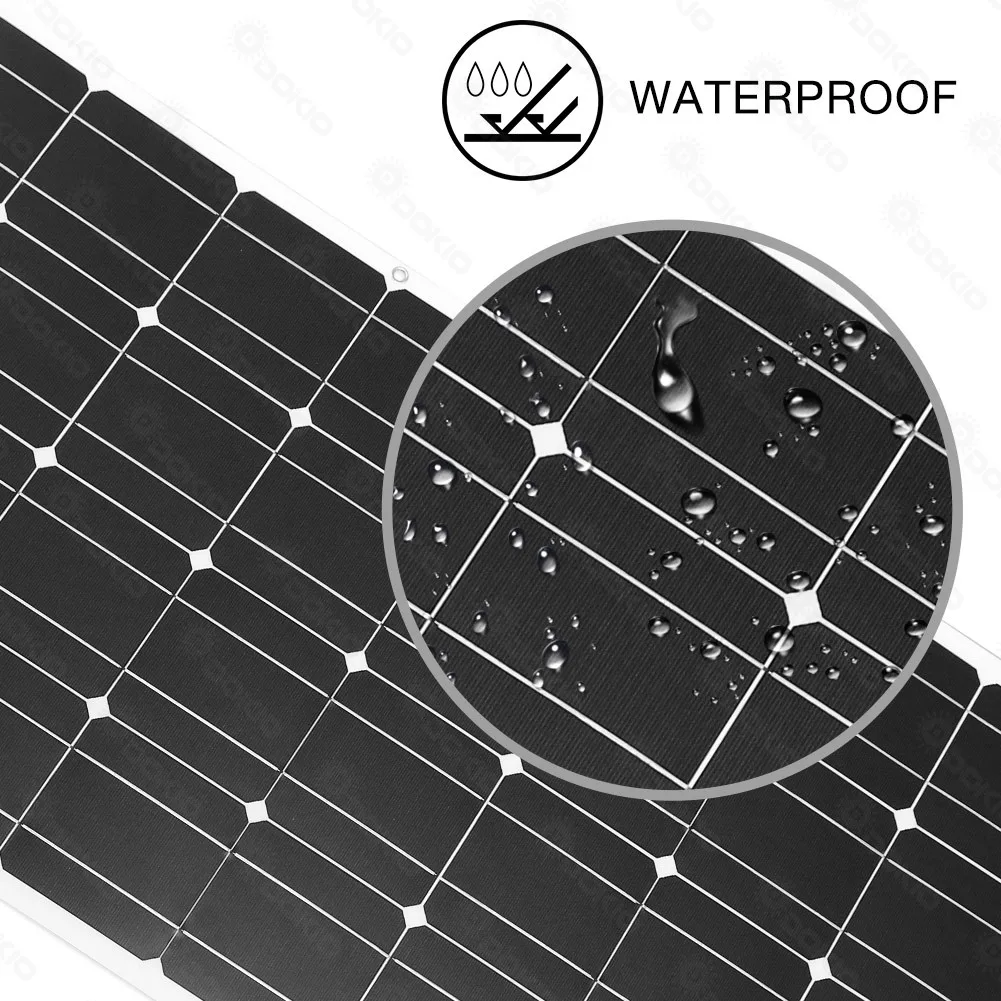

waterproof level:IP67(Junction Box)
(The size is manually measured and there is a certain error. Customers who want accurate size please don’t buy,thank you)

16V 100W VS 18V 100W

18v100W, 4*9,36Cells.
16v100W, 4*8, 32Cells. When the 16v solar panel is electrically conductive, the requirements for sunlight intensity are higher than 18v.
