500w Solar Panel de Complete Kit 100w 12v Photovoltaic Flexible Battery Portable 300w Controller Set Power Generator Charger

$272$1,006

SKU: 1005004082198961 Category:

Description

  • Brand Name: NEWCE
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • is_customized: Yes
  • Application: home
  • Specification: Normal
  • Work Time (h): 8
  • Solar Power (W): 400w
  • Output Voltage (V): 12v/24v
  • power: 100w
  • Max Power voltage: 16V
  • Max Power Current: 6.25A
  • Open Circuit Voltage: 19.2V
  • Short Circuit Current: 6.87A
  • Controller: 12V/24V 30A solar controller
  • Junction: IP 67 waterproof
  • cable: 0.9 meter 2X2.5mm
  • Weight: 1.91kg/pcs









Connect Video



































500w Solar Panel de Complete Kit 100w 12v Photovoltaic Flexible Battery Portable 300w Controller Set Power Generator Charger

1,For Europe Client:
This product is Fast shipping without high import tax and ready to ship from our Belgium/Spain-based Warehouse via DHL fast delivery.

2,For Russia Client:
This product is Fast shipping without high import tax and ready to ship from our Moscow-based Warehouse via Russia Post fast delivery.

Description

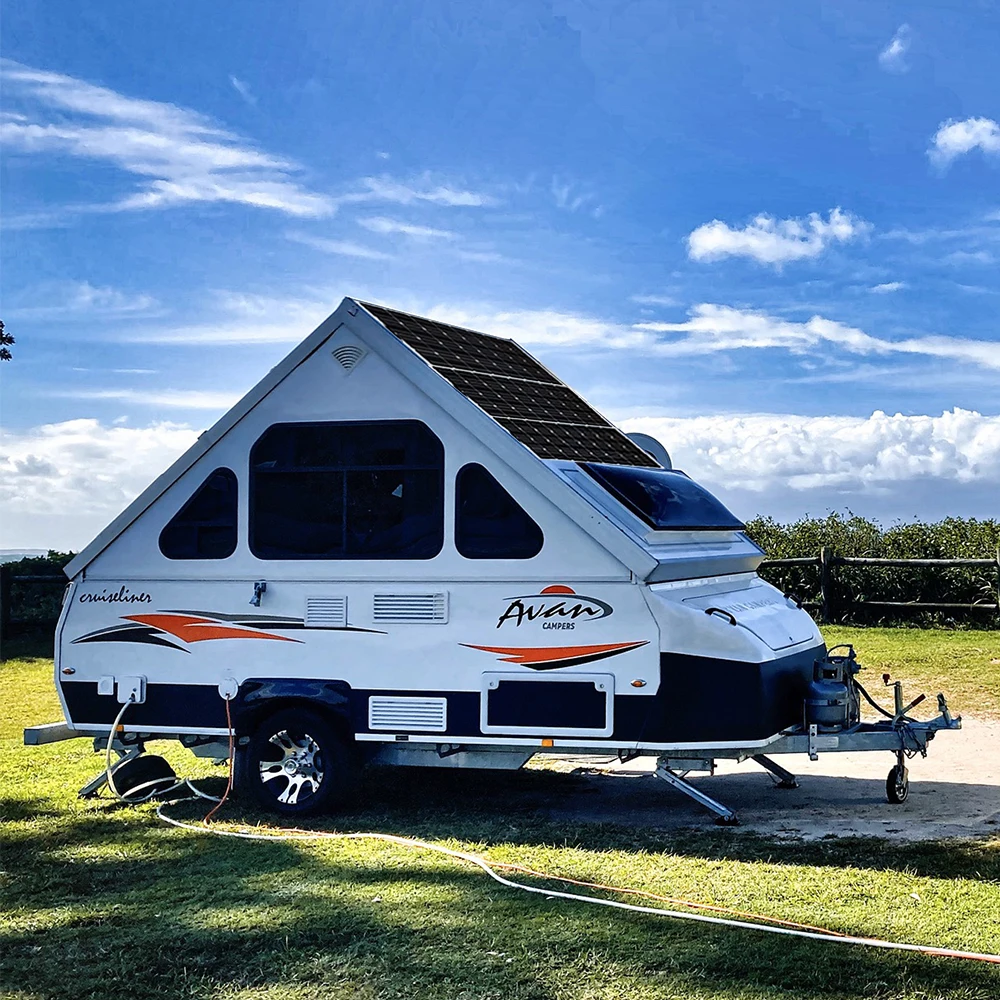

Flexible solar panels are increasingly being used in various settings including homes, RVs, boats, camping, trucks, and trailers.

The first thing is the 100W flexible solar panel’s immense efficiency of up to 21%, which dwarfs most panels in its class with 17% to 19% efficiencies.

Another core element of this panel is water resistance. This makes it ideal for use in unpredictable weather.

Pre-drilled holes on each corner of the panel make for quick mounting and securing, thus ideal for temporary installations. The lightweight and frameless construction also ensures easy hanging and take down as well as effortless transportation. The item weighs 4.21 lbs precisely, yet it packs a generous 100 watts of power.

PACKAGE LIST

List A: 100W Solar System
▶100W 16V solar panel *1
▶10A 12V/24V solar charger regulator *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List B: 300W Solar System
▶100W 16V solar panel *3
▶30A 12V/24V solar charger regulator *1

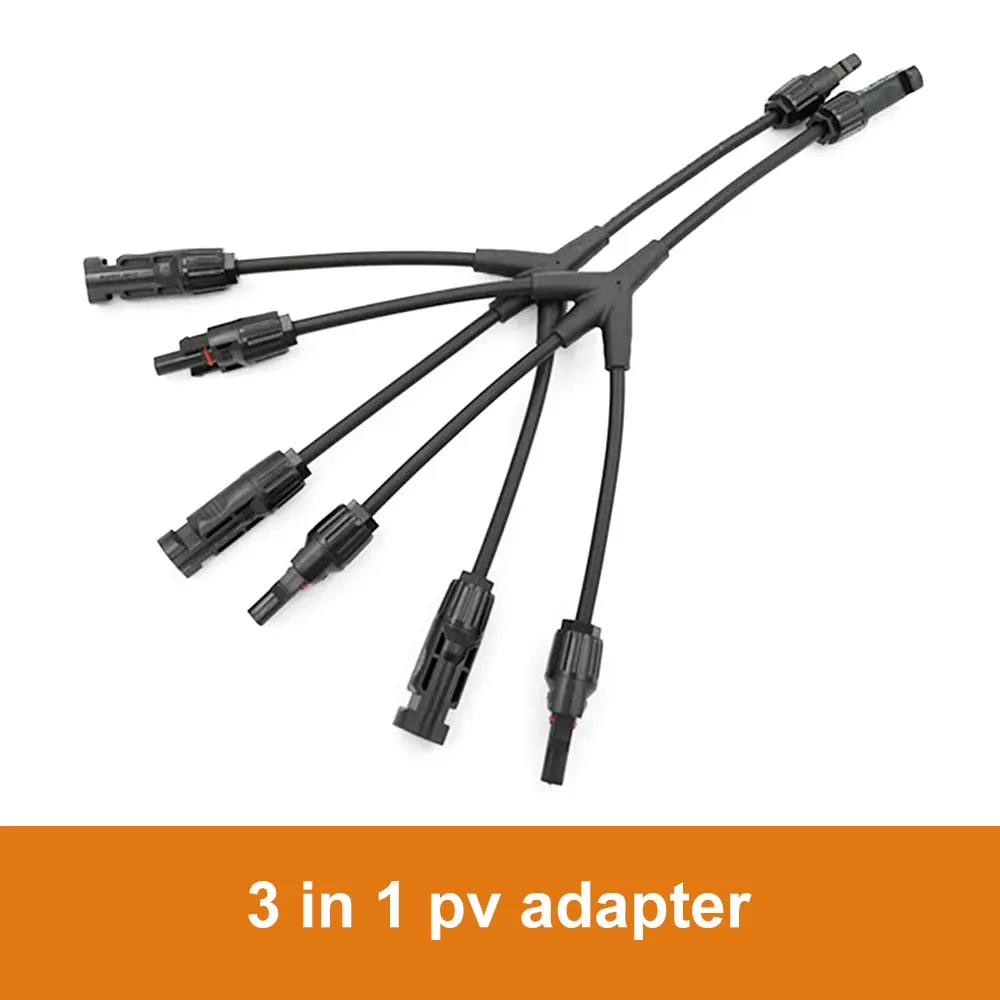

▶3-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List C: 500W Solar System
▶100W 16V solar panel *5
▶50A 12V/24V solar charger regulator *1

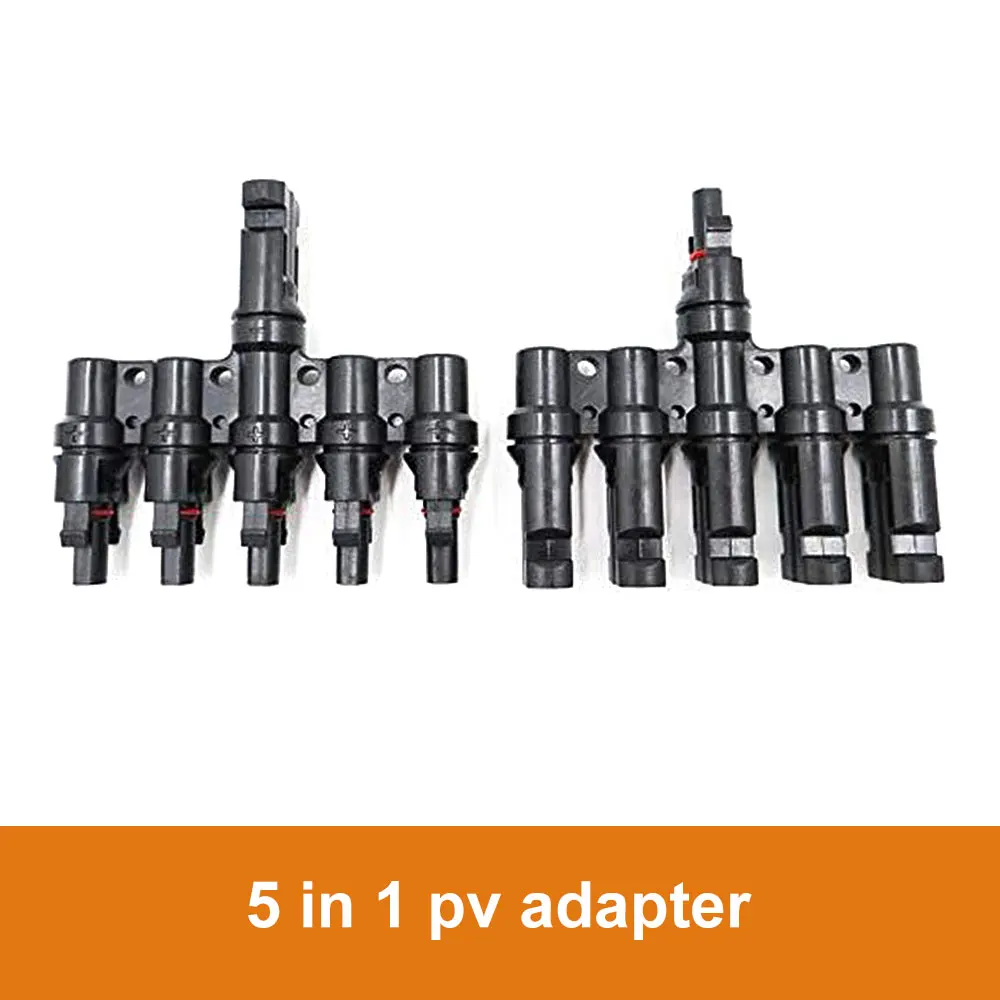

▶5-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

Advantages

Super Lightweight:
With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

High Efficient:
High efficiency solar cell: Monocrystalline 21%.

Extremely Flexible:
This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

Super Thin:
Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Protection:
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

Highly Durable:
Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.

Easy to install:
Metal holes in the corners of the product for fixing screws and mounting.

Products Parameter at Standard Test Conditions

Electrical Characteristics

Max Power Pmax 100W
Max Power voltage Vmp 16V
Max Power Current Imp 6.25A
Open Circuit Voltage Voc 19.2V
Short Circuit Current Isc 6.875A
Maximum System Voltage 600V
Number of cells in Series 32
Cell size 125X125mm
Max Power tolerance ±3%

Mechanical Characteristics

Dimension 1050X530X2.5mm
Weight 1.91kg
Cable 0.9 meter 2X2.5mm

















Additional information

Ships From

Australia, Brazil, China, GERMANY, Italy, Russian Federation, Ukraine, United States

Color

100W Solar System, 300W solar system, 500W Solar System
