500w Portable Solar Energy Systems 16v 300w 200w Power Flexible Solar Panel 12v Solar Panels Complete Charger Kit 24v For Home

$425$1,212

SKU: 1005004099141942 Category:

Description

  • Brand Name: NEWCE
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • is_customized: Yes
  • Application: home
  • Specification: Normal
  • Work Time (h): 8
  • Solar Power (W): 400w
  • Output Voltage (V): 12v/24v
  • power: 100w
  • Max Power voltage: 16V
  • Max Power Current: 6.25A
  • Open Circuit Voltage: 19.2V
  • Short Circuit Current: 6.87A

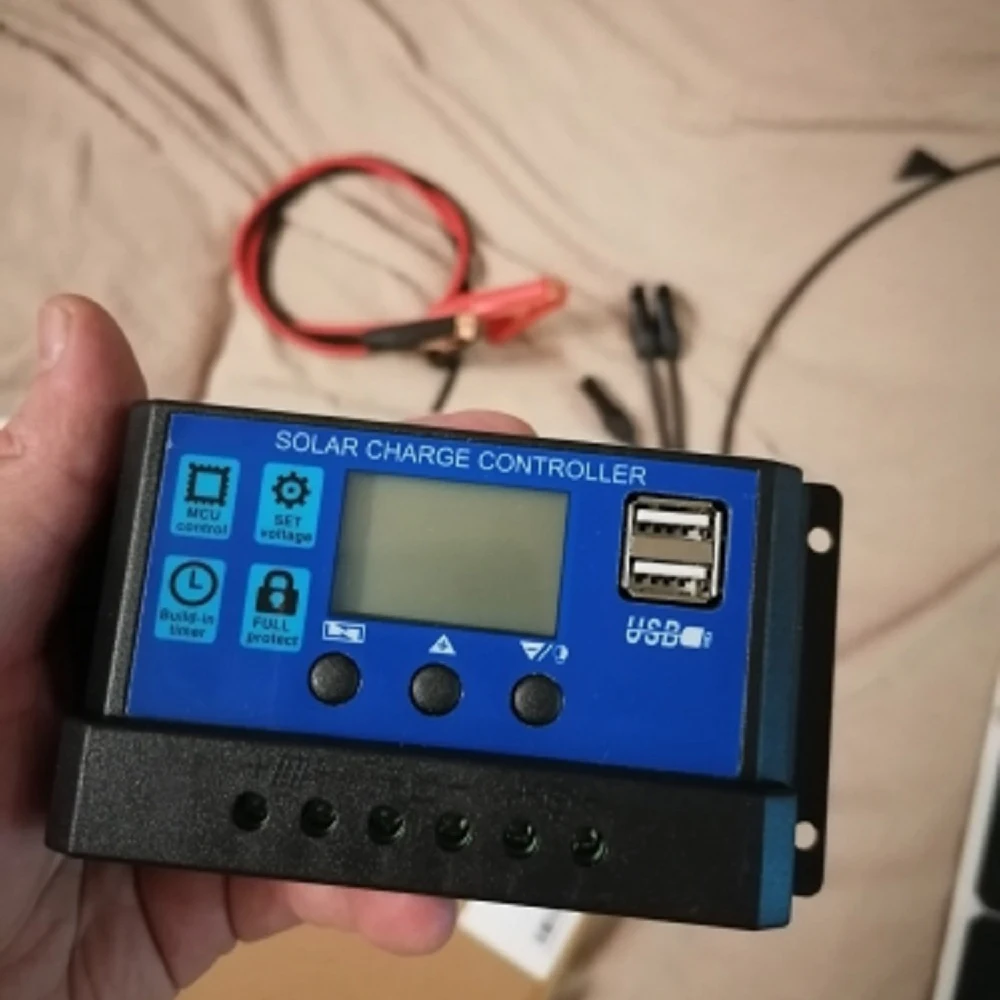

  • Controller: 12V/24V 20A solar controller

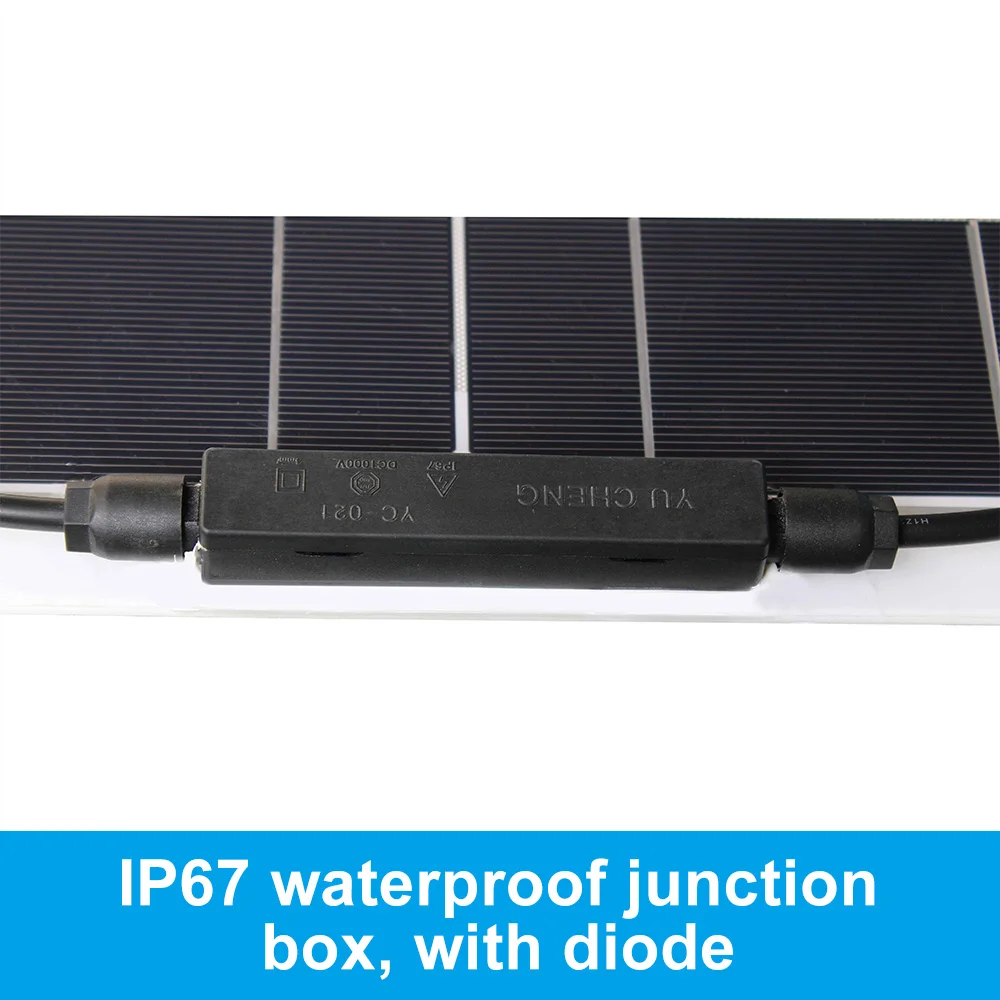

  • Junction: IP 67 waterproof
  • cable: 0.9 meter 2X2.5mm
  • Weight: 2kg/pcs

500w Portable Solar Energy Systems 16v 300w 200w Power Flexible Solar Panel 12v Solar Panels Complete Charger Kit 24v For Home

This product is ready to ship from our China/Russia/Spain/Belgium-based warehouse.

1,For Europe Client:
This product is Free shipping without high import tax and ready to ship from our Belgium/Spain-based Warehouse via DHL fast delivery.

2,For Russia Client:
This product is Free shipping without high import tax and ready to ship from our Moscow-based Warehouse via Russia Post fast delivery.

Note: Please make sure the contact name, mobile number and address were written clearly. Missing or wrong information may cause delay, additional charge, or lost.

Advantages

Super Lightweight: With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

High Efficient: High efficiency solar cell: Monocrystalline 21%.

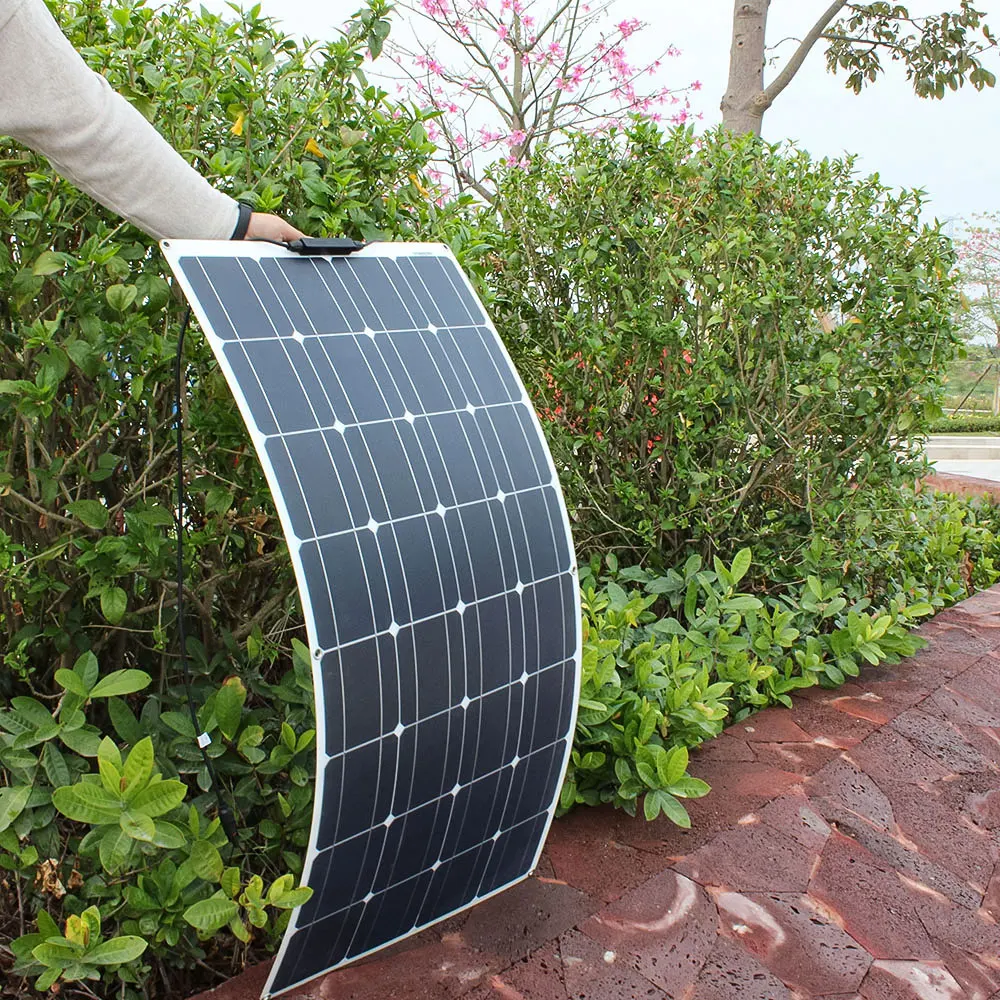

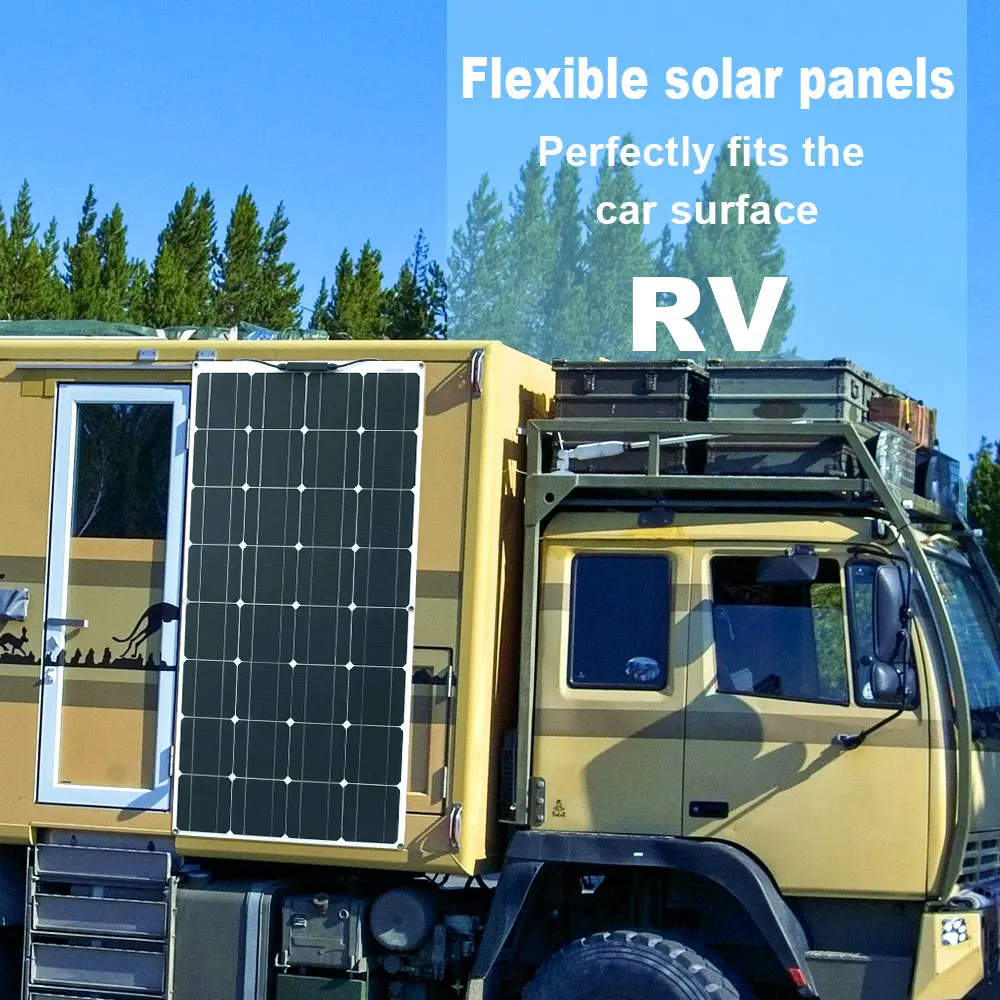

Extremely Flexible: This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

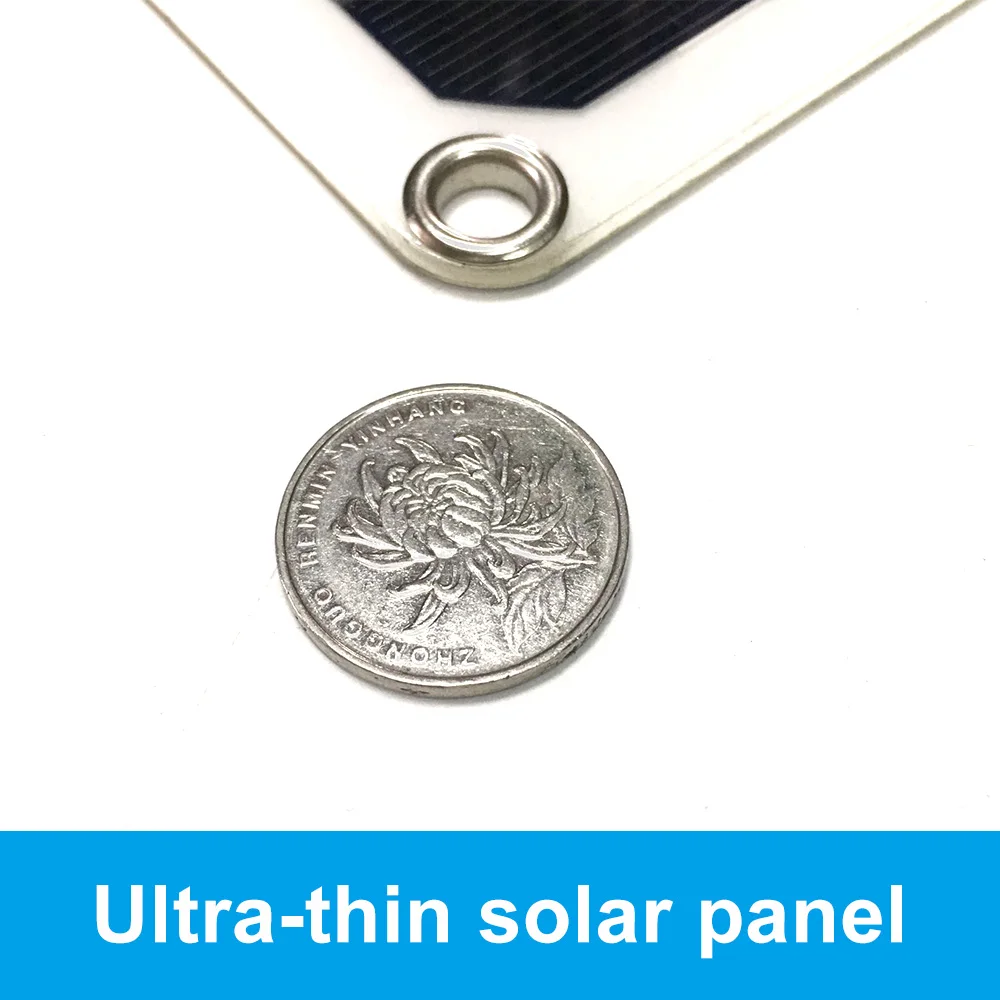

Super Thin: Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Protection: Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

Highly Durable: Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

Products Parameter at Standard Test Conditions

Electrical Characteristics

Max Power Pmax 100W
Max Power voltage Vmp 16V
Max Power Current Imp 6.25A
Open Circuit Voltage Voc 19.2V
Short Circuit Current Isc 6.875A
Maximum System Voltage 600V
Number of cells in Series 32
Cell size 125X125mm
Max Power tolerance ±3%

Mechanical Characteristics

Dimension 1050X530X2.5mm
Weight 2.04kg
Cable 0.9 meter 2X2.5mm

PACKAGE LIST

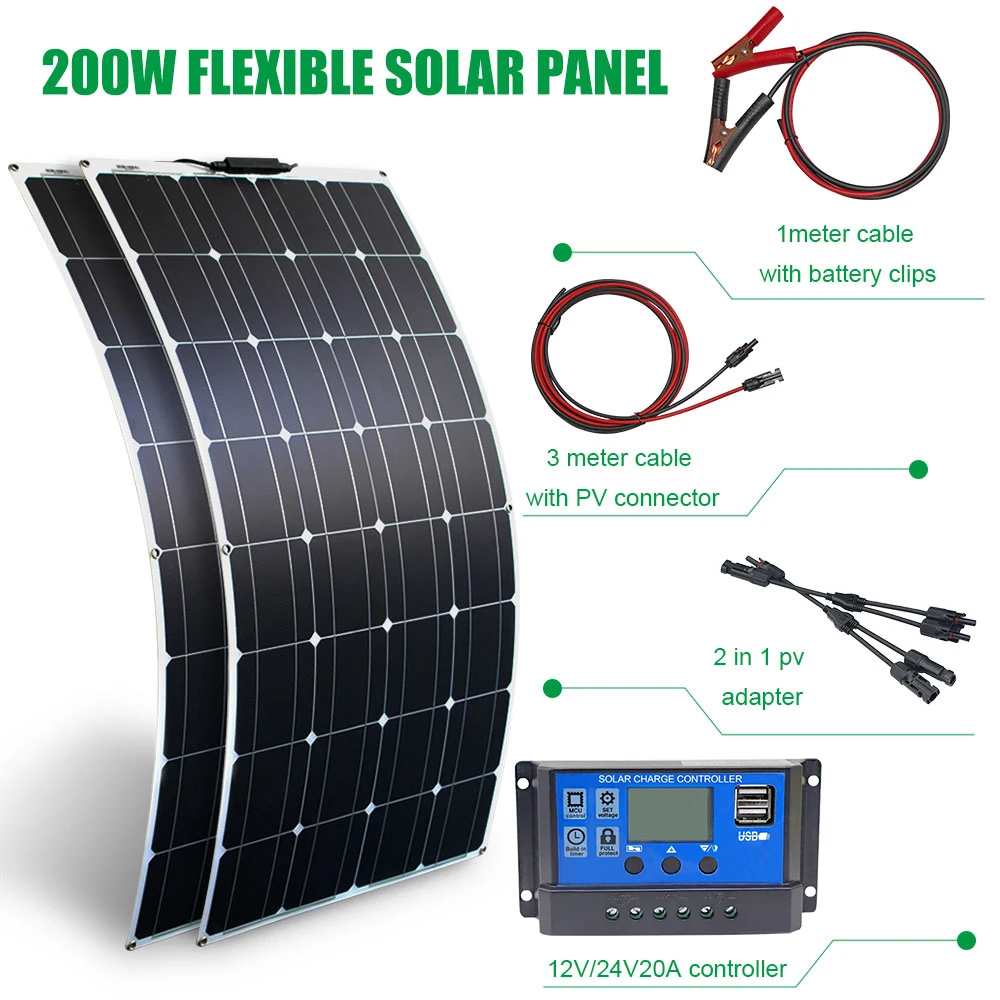

List A: 200W Solar System
▶100W 16V solar panel *2
▶20A 12V/24V solar charger regulator *1

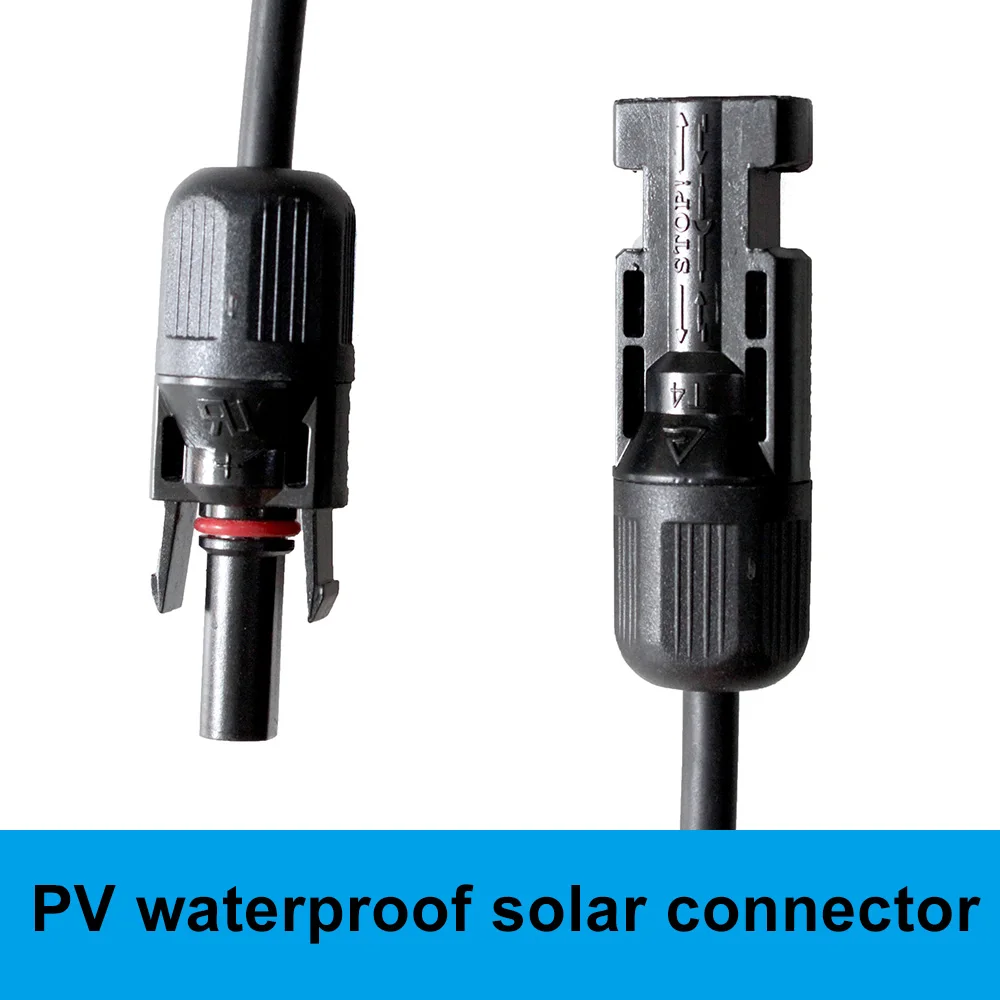

▶2-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List B: 300W Solar System
▶100W 16V solar panel *3
▶30A 12V/24V solar charger regulator *1
▶3-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List C: 500W Solar System
▶100W 16V solar panel *5
▶50A 12V/24V solar charger regulator *1
▶5-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

System Connection:

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.



FEEDBACK

EVERY customer is important to us and we will do our best to ensure that your experience with us is nothing less than excellent. Sometimes, though very rarely, we can make a mistake – we are human after all. If you feel we deserve less than 5 stars for any reason, please let us know before you leave your feedback so we can address your concern.

Please send message to us via Aliexpress.You will usually receive a reply within one business day. During Double 11/Black Friday sales, it may take longer to receive a reply due to the increased volume of customer enquiries.





Additional information

Ships From

Australia, Brazil, China, GERMANY, Italy, Russian Federation, Ukraine, United States

Color

200W Solar System, 300W solar system, 500W Solar System
