500w 600w 400w 300w 200w 100w Solar Panel de Complete Energy Kit Photovoltaic Flexible Portable Set Battery Motorhome Charger

$278$1,357

SKU: 1005004099332539 Category:

Description

  • Brand Name: NEWCE
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 1

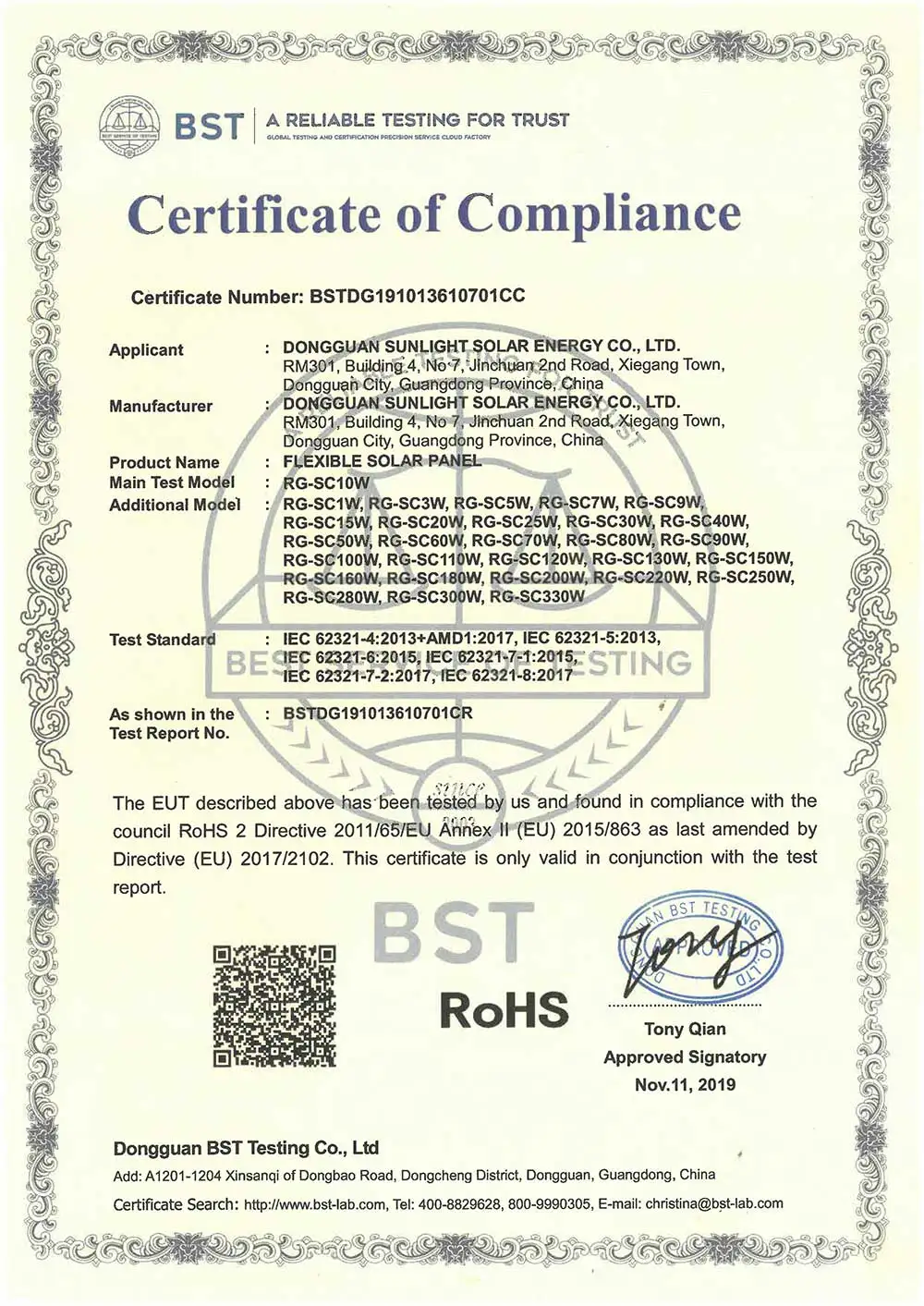

  • Certification: CE
  • Certification: RoHS
  • Flexible Solar Panel: Yes
  • Type: Solar Panel
  • is_customized: Yes
  • Material: Monocrystalline Silicon
  • Nominal Capacity: 100W
  • Size: 1050*530*2.5mm
  • Model Number: RG-32N100
  • Number of Cells: 32
  • Max. Power: 100W
  • Max.Peak Power: 100W
  • Voltage at Max. Power: 16.0V
  • Current at Max. Power: 6.25A
  • Open Circuit Voltage: 19.2V
  • Short Circuit Current: 6.68A





Video of Connection















500w 600w 400w 300w 200w 100w Solar Panel de Complete Energy Kit Photovoltaic Flexible Portable Set Battery Motorhome Charger

1,For Europe Client:
This product is Fast shipping without high import tax and ready to ship from our Belgium/Spain/Czech-based Warehouse via DHL fast delivery.

2,For Russia Client:
This product is Fast shipping without high import tax and ready to ship from our Moscow-based Warehouse via Russia Post fast delivery.



Advantages

Super Lightweight: With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

High Efficient: High efficiency solar cell: Monocrystalline 21%.

Extremely Flexible: This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

Super Thin: Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Protection: Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

Highly Durable: Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

Products Parameter at Standard Test Conditions

Electrical Characteristics

Max Power Pmax 100W
Max Power voltage Vmp 16V
Max Power Current Imp 6.25A
Open Circuit Voltage Voc 19.2V
Short Circuit Current Isc 6.875A
Maximum System Voltage 600V
Number of cells in Series 32
Cell size 125X125mm
Max Power tolerance ±3%

Mechanical Characteristics

Dimension 1050X530X2.5mm
Weight 2.04kg
Cable 0.9 meter 2X2.5mm

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

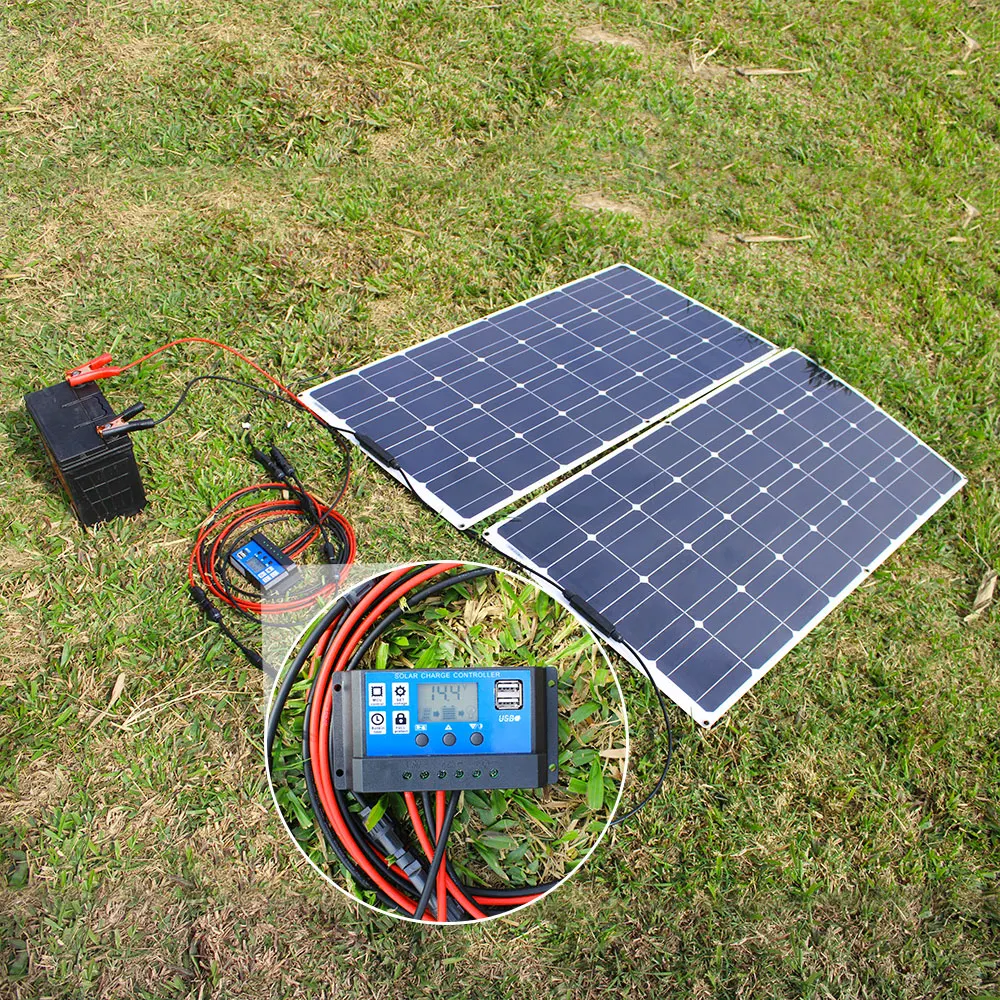

System Connection:

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.

APPLICATION

PACKAGE LIST

List A: 600W Solar System
▶100W 16V solar panel *6
▶50A 12V/24V PWM solar charger regulator *1

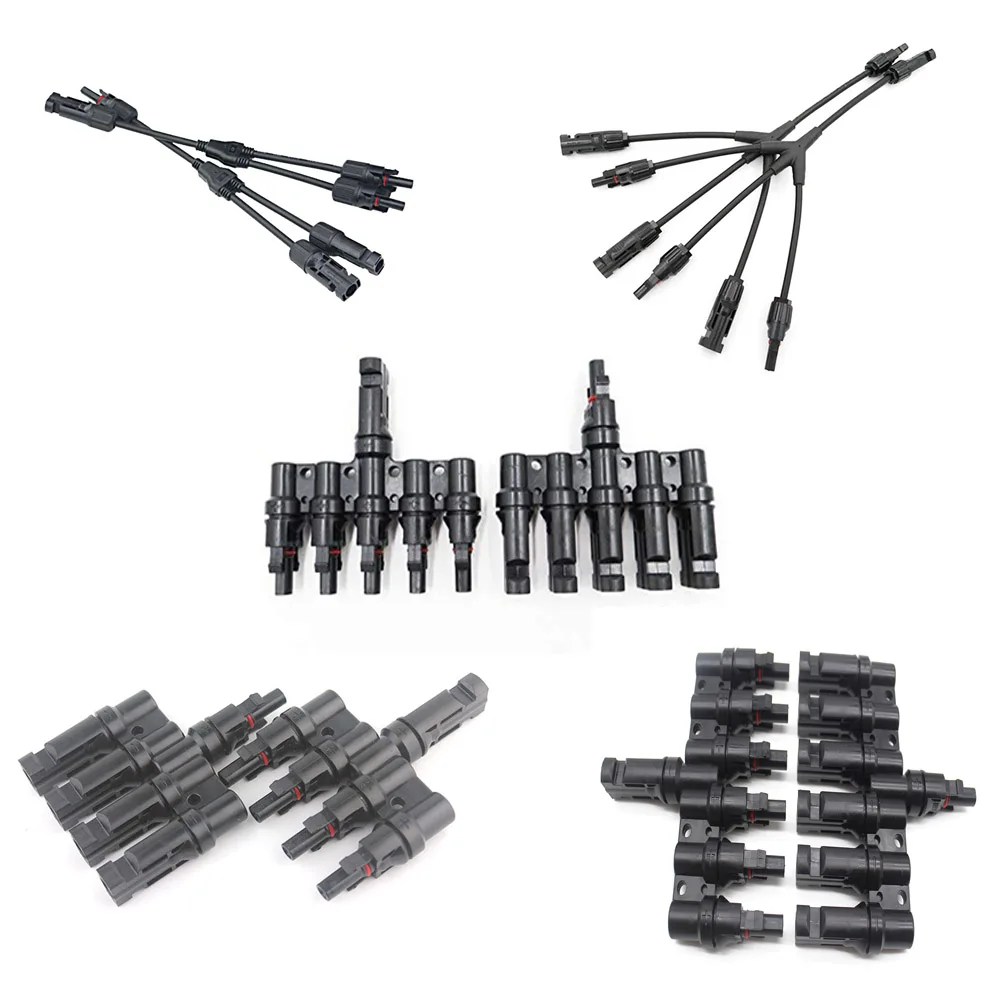

▶6-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List B: 500W Solar System
▶100W 16V solar panel *5
▶50A 12V/24V PWM solar charger regulator *1
▶5-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List C: 400W Solar System
▶100W 16V solar panel *4
▶40A 12V/24V PWM solar charger regulator *1
▶4-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List D: 300W Solar System
▶100W 16V solar panel *3
▶30A 12V/24V PWM solar charger regulator *1
▶3-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List E: 200W Solar System
▶100W 16V solar panel *2
▶20A 12V/24V PWM solar charger regulator *1

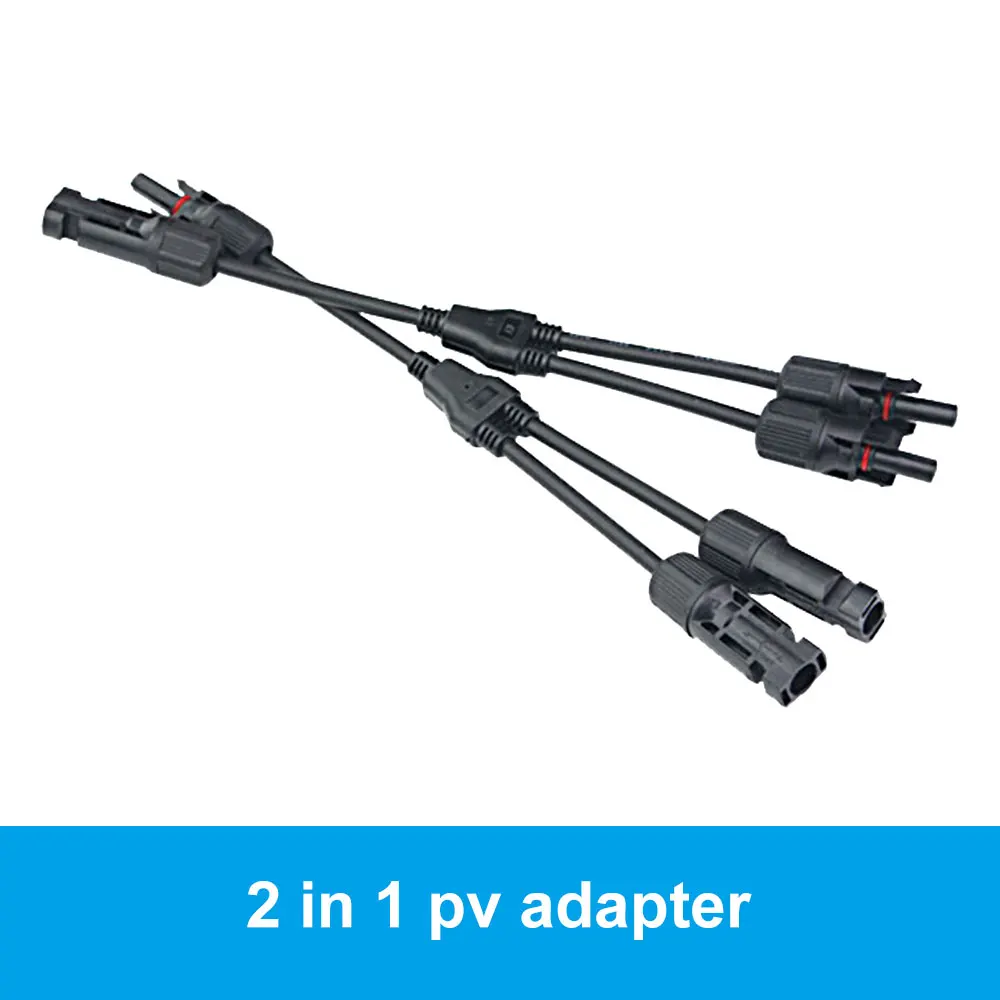

▶2-in-1 PV adapter *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1

List F: 100W Solar System
▶100W 16V solar panel *1
▶10A 12V/24V PWM solar charger regulator *1
▶39.37″cable with alligator clips *1
▶118.11″extend cable *1







Additional information

Ships From

Australia, Brazil, China, GERMANY, Italy, Russian Federation, Ukraine, United States

Color

100W Solar System, 200W Solar System, 300W solar system, 400W Solar System, 500W Solar System, 600w solar system
