3500W Pure Sine Wave Power Inverter 7000W DC 12V To AC 220V Off Grid Truck Pure Wave Edecoa Car Inverter 12V 230V


SKU: 4000336309551 Category:


  • Brand Name: EDECOA
  • Type: DC/AC Inverters
  • Certification: CE
  • Certification: RoHS
  • Origin: CN(Origin)
  • Size: 35×23.5×17 cm
  • Model Number: 1922103500NR-V3
  • Output Frequency: 50 Hz
  • Output Type: DUAL
  • Output Power: 3500W
  • Weight: 7.1 kg
  • is_customized: Yes
  • Output Current: /
  • Continuous Power: 3500W
  • Surge Power: 7000W
  • Surge Power Duration: 0.1S
  • DC Input Voltage: 12V
  • AC Output Voltage: 220V 230V 240V
  • AC Output Frequency: 50Hz
  • AC Output Waveform: Pure Sine Wave
  • USB Output: DC 5V 2.1A
  • Efficiency: >90%
  • DC Input Voltage Range: 10.5V~15V
  • Input Low-Voltage Alarm: 10.5V±0.3V
  • Input Low voltage Shutdown Voltage: 10V±0.3V
  • Input High voltage Shutdown Voltage: 15V±0.3V
  • No Load Current: <1A
  • Battery Cable: (16m㎡x600mm)x2
  • Fan Starting Temperature: ≥ 45 ℃
  • Temperature Protection: 75 ℃
  • Certificate: CE, ROHS

True Pure Sine Wave Inverter

DC to AC Power Inverter 12V 230V can deliver 3500W continuous power /7000W max peak power.
Driven by unipolar SPWM, the output sinusoidal waveform is purer, THD<3%, lower electromagnetic interference.

The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.

High Compatible Power Inverter & Safety Isolation

Pure Sine Wave Inverter 50Hz for inductive, capacitive and Resistive load. 12V off-grid Inverter 230V for RV, solar system, emergency power, garden work, caravan, vessel.

Dual EU Sockets (220V /230V /240V) for coffee machine, fridge, microwave, ice cream machine, vacuum cleaner, electric bicycle, laptop, pool filter, water-pump and more.

Input and output isolation,extra protection for household appliances.


New version 3.0 multi-function remote controller, LCD that shows battery capacity, load pressure, input and output voltage and current, output frequency, inverter temperature, and alarm code. Dual 5V 2.1A USB ports for mobile phones and tablets.

80 x 86 cms fixable board with standard RJ45 port and 4 meters cable. Customers can replace the longer cables to increase remote control distance.

A More Lighter and quieter Inverter

-Anodized Aluminum Casing
Excellent heat dissipation performance and good appearance.
Not easy to scratch or leave marks.
Compared to other metal materials, anodized aluminum is good at corrosion resistance.

-Smart fans design.
To reduce unnecessary waste of battery power and keep quiet, the fan won’t start until the internal temperature is 45℃+.
Above 75℃, the power inverter will stop working to protect the off-grid inverter.

Multi-Protection & Intelligent Alarm

Under voltage, over-voltage, overload, over current, short circuit, over-temperature, and galvanized isolation.
SPWM chips and low resistance MOSFET reduce the interruption of the solar inverter. Work continuously with 90% load pressure.

Smart buzzer designs to provide 5 alarm models for different situations.
More easily find out what is going on for your system.


Continuous Power: 3500W
Surge Power: 7000W
Surge Power Duration: 0.1S
DC Input Voltage: 12V
AC Output Voltage: 220V~240V
AC Output Frequency: 50Hz
AC Output Waveform: Pure Sine Wave
Waveform distortion: THD<3% (Linear load)
Efficiency (>90% Load): >90%
DC Input Voltage Range: 10.5V~15V
Input Low Voltage Alarm: 10V±0.3V
Input Low Voltage Shutdown Voltage: 10V±0.3V
Input High Voltage Shutdown Voltage: 15.5V±0.3V
No Load Current: < 1A
NetWeight: 7.1kg

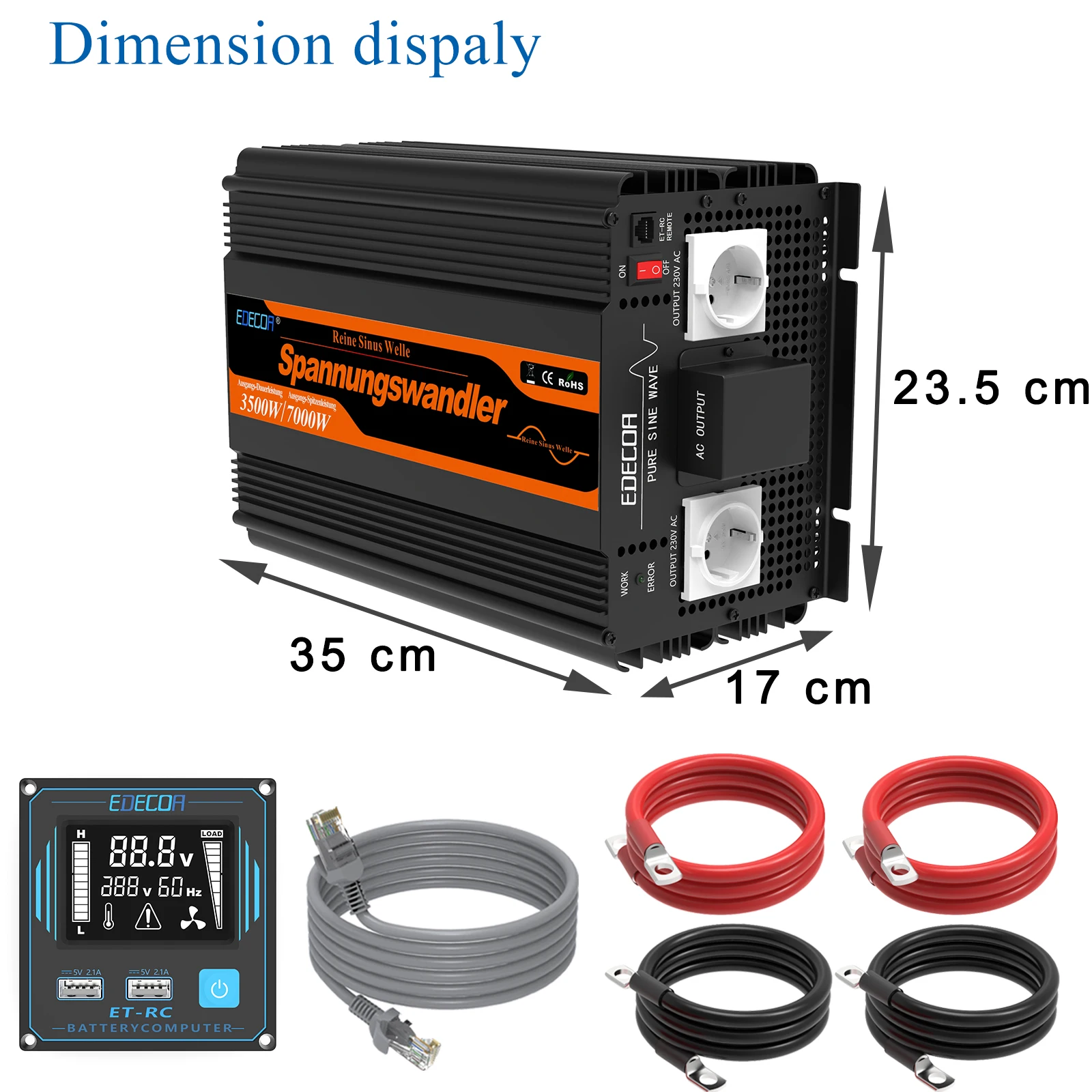

Dimensions (L x W x H): 35×23.5×17 cm
Battery Cable (Cross-sectional area*length): (16mm2*600MM)*2



How to choose a Pure Sine Wave Inverter or Modified Sine Wave Inverter

If your appliances is resistive loads, such as: bulbs,kettle, it will be ok to choose a modified wave inverter. But if it is inductive loads or capacitive loads, pure sine wave inverter is the only option. Here is some inductive loads for your reference: precision instruments, air conditioner, fridge, coffee machine, computer etc.

The modified sine wave inverter is not suitable to run inductive loads, such as microwave oven, coffee machine, water pump, refrigerator, electric drill etc.
