- Brand Name: EDECOA
- Type: DC/AC Inverters
- Certification: CE
- Certification: RoHS
- Origin: CN(Origin)

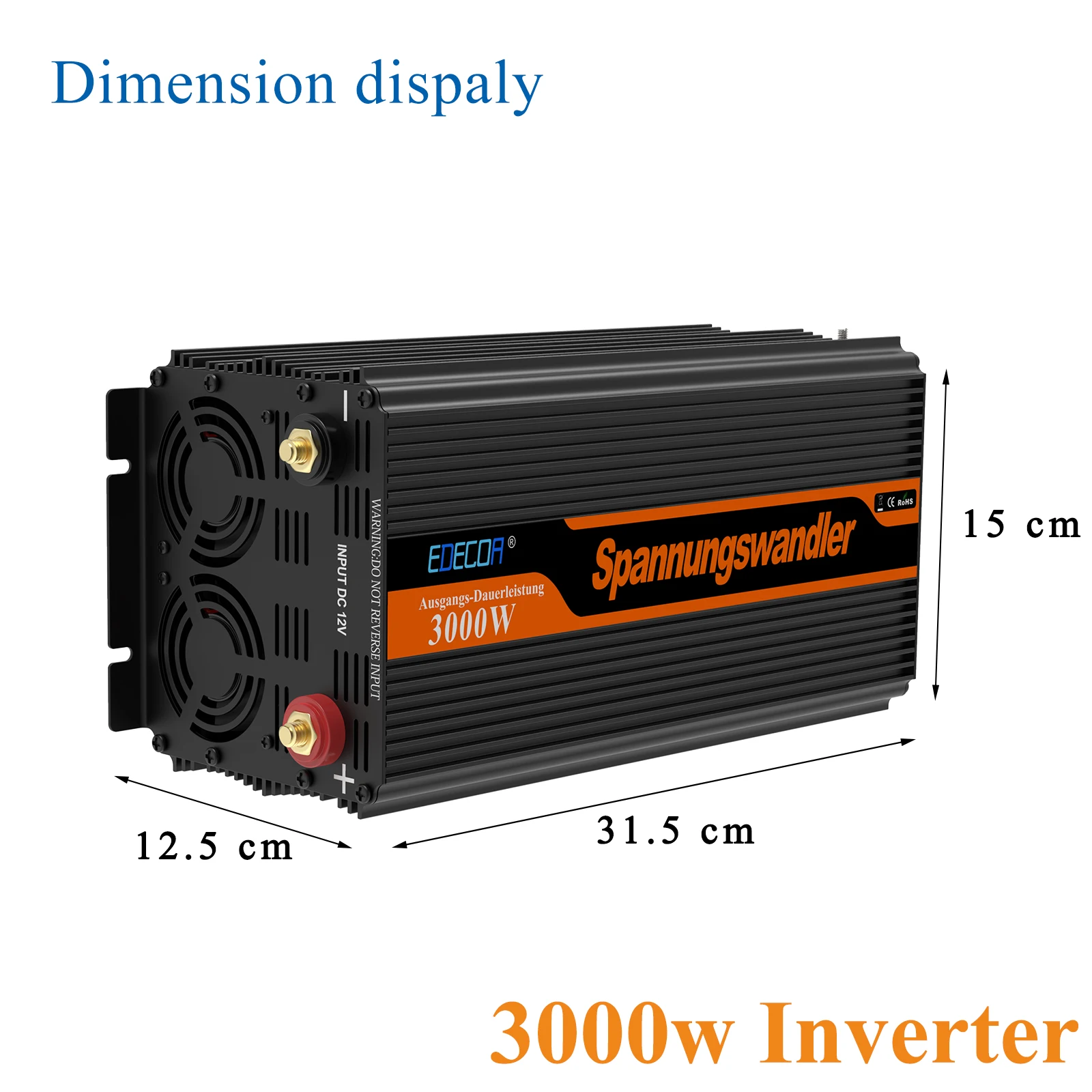

- Size: 31.5x15x12.5 cm
- Model Number: 1932203000NR-V3
- Output Frequency: 50 Hz
- Output Type: DUAL
- Output Power: 3000W
- Weight: 3.9 kg
- is_customized: Yes
- Output Current: /
- DC Input Voltage Range: 21V~30V
- Input Under-Voltage Alarm: 21V±0.5V
- Input Under voltage Shutdown Voltage: 20V±0.5V
- Input High voltage Shutdown Voltage: 31V±0.5V
- No Load Current: <0.8 A
- Battery Cable: (25m㎡x750mm)x2
- Fan Starting Temperature: ≥ 45 ℃
- Temperature Protection: 75 ℃
- Network Cable(RJ45 standard): 4 meters long
- Waveform: Modified Sine Wave
- Continuous Power: 2000W
- Surge Power: 4000W
- Surge Power Duration: 0.1s
New LCD REMOTE CONTROLLER
New version 3.0 multi-function remote controller, LCD that shows battery capacity, load pressure, input and output voltage and current, output frequency, inverter temperature, and alarm code. Dual 5V 2.1A USB ports for mobile phones and tablets.
80 x 86 cms fixable board with standard RJ45 port and 4 meters cable. Customers can replace the longer cables to increase remote control distance.
ANODIZED ALUMINUM OUTCASE
Excellent heat dissipation performance and good appearance. Not easy to scratch or leave marks. Compared to other metal materials, anodized aluminum is good at corrosion resistance.
Under voltage, over-voltage, overload, over current, short circuit, over-temperature, and galvanized isolation. SPWM chips and low resistance MOSFET reduce the interruption of the solar inverter. Work continuously with 90% load pressure.
INTELLIGENT VARIABLE SPEED FAN
Smart fans design. To reduce unnecessary waste of battery power and keep quiet, the fan won’t start until the internal temperature is 45℃+. Above 75℃, the power inverter will stop working to protect the off-grid inverter.
Modified Sine Wave Inverter
The modified sine wave inverter is not suitable to run inductive loads, such as microwave oven, coffee machine, water pump, refrigerator, electric drill, Fluorescent lamp, Induction cooker, welding machine, electric motor etc.
