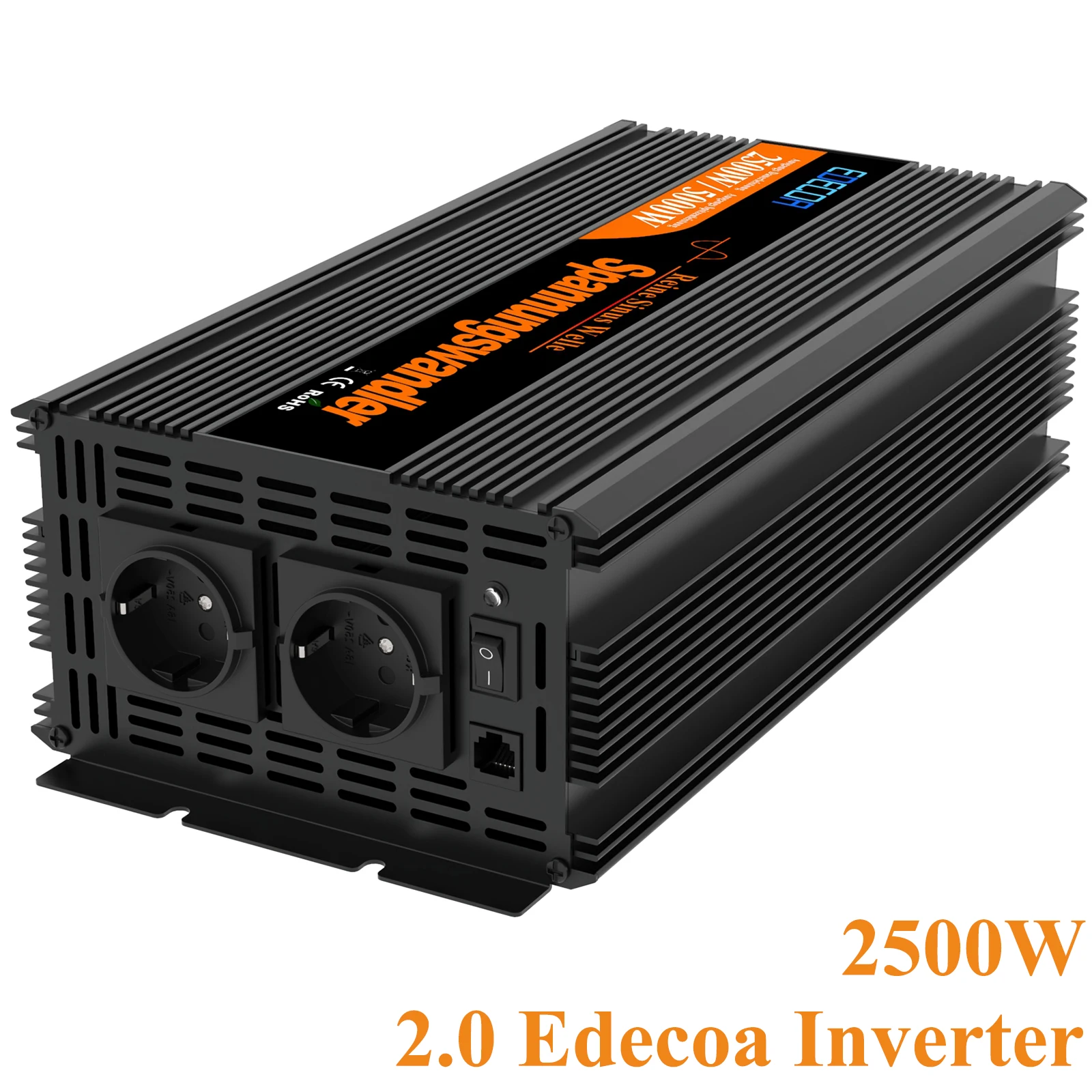

2500W Pure Sine Wave Inverter EDECOA Off Grid Power Converter DC 12V 24V To AC 220v 230v 2500 Watt Car Inverter 12v 230v


SKU: 4000336089844 Category:


  • Brand Name: EDECOA
  • Type: DC/AC Inverters
  • Origin: CN(Origin)
  • Size: 34×16.5×8.5 cm
  • Output Frequency: 50 Hz
  • Output Type: Single
  • is_customized: Yes
  • Output Current: /
  • Model Number: 1422102500R-V1
  • Output Power: 2500W
  • Certification: CE
  • Certification: RoHS
  • Weight: 3.6 kg
  • Continuous Power: 2500W
  • Surge Power: 5000W
  • DC Input Voltage: 12V
  • AC Output Voltage: 220V 230V 240V
  • AC Output Frequency: 50Hz
  • AC Output Waveform: Pure Sine Wave
  • USB Output: DC 5V 2.1A
  • Efficiency: >90%
  • DC Input Voltage Range: 10V~15V
  • Input Low voltage Shutdown Voltage: 10.5V±0.3V
  • Input High voltage Shutdown Voltage: 15V±0.3V
  • No Load Current: <1.9A
  • Surge Power Duration: 0.1S
  • Battery Cable: (16m㎡x500mm)x2
  • Network cable (RJ45 standard): 4 meters long
  • Fan Starting Temperature: ≥ 45 ℃
  • Temperature Protection: 75 ℃
  • Certificate: CE, ROHS


DC to AC Power Inverter 12V 230V can deliver 2500W continuous power /5000W max peak power. Driven by bipolar SPWM, the output sinusoidal waveform is purer, THD<3%, lower electromagnetic interference.


The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.


Smart fans design. To reduce unnecessary waste of battery power and keep quiet, the fan won’t start until the internal temperature is 45℃+. Above 75℃, the power inverter will stop working to protect the off-grid inverter.


Under voltage, over-voltage, overload, over current, short circuit, over-temperature, and galvanized isolation. SPWM chips and low resistance MOSFET reduce the interruption of the solar inverter. Work continuously with 90% load pressure.


How to choose a Pure Sine Wave Inverter or Modified Sine Wave Inverter

If your appliances is resistive loads, such as: bulbs,kettle, it will be ok to choose a modified wave inverter. But if it is inductive loads or capacitive loads, pure sine wave inverter is the only option. Here is some inductive loads for your reference: precision instruments, air conditioner, fridge, coffee machine, computer etc.

The modified sine wave inverter is not suitable to run inductive loads, such as microwave oven, coffee machine, water pump, refrigerator, electric drill etc.


None delivery are:Spain: Canary Island (35000-35999,38000-38999), Balearic Islands (07000-07999), Ceuta (51000-51999), Melilla (52000-52999)France: 20001-20999,97100-97699,98400-98899 You may contact us before placing orders.

International shipping company will request a English address. Please provide a valid address and corresponding zip code.

We have shipping warehouses in German UK USA and China. You may choose the closest shipping warehouse so that you can receive the package faster. If we cannot ship to your country, please contact us before placing an order.

Import Duty & Vat tax

Shipments from China to your country may have import duty fees and vat tax. Please consult your local customs office for the accurate amount. The sale price did not included the import duty fee and tax.

Buyer will responsible for the import duty fee and tax. Customs duties are usually collected by the express company directly.

Additional information

Ships From



1.0 Version With USB, 2.0 Version No USB

Input Voltage

12V, 24V

Output Voltage


Socket Type
