2000W Edecoa Converter DC 12v 24V To AC 220v 230v 240v 2000 watt Home Use Off Grid Modified Sine Wave Solar Power Inverter

$252$254

SKU: 1005001993013686 Category:

Description

  • Brand Name: EDECOA
  • Type: DC/AC Inverters
  • Origin: CN(Origin)
  • Size: 28.5*15*12.5CM
  • Output Frequency: 50HZ
  • Output Type: DUAL
  • is_customized: Yes
  • Output Current: /
  • Model Number: 1932102000R-V3
  • Output Power: 2000W
  • Certification: CE
  • Certification: RoHS
  • Weight: 2.9 KG
  • Waveform: Modified Sine Wave
  • Continuous Power: 2000W
  • Surge Power: 4000W
  • Surge Power Duration: 0.1s
  • DC Input Voltage Range: 10V~15V
  • Input Low Voltage Alarm: 10.5V±0.3V
  • Low voltage Shutdown Voltage: 9.5V±0.3V
  • High voltage Shutdown Voltage: 15V±0.3V
  • No Load Current: < 0.2A
  • Battery Cable: 16mm²x750mm
  • Network Cable: RJ45 Standard 4 meters long
  • Fan Starting Temperature: ≥ 45 ℃
  • Temperature Protection: 75 ℃

SOFT START and STABLE OUTPUT

DC to AC Power Inverter 12V 230V can deliver 2000W continuous power /4000W max peak power. Driven by unipolar SPWM, the output sinusoidal waveform is purer, THD<3%, lower electromagnetic interference.

INTELLIGENT VARIABLE SPEED FAN

Smart fans design. To reduce unnecessary waste of battery power and keep quiet, the fan won’t start until the internal temperature is 45℃+. Above 75℃, the power inverter will stop working to protect the off-grid inverter.

MULTI-PROTECTION

Under voltage, over-voltage, overload, over current, short circuit, over-temperature, and galvanized isolation. SPWM chips and low resistance MOSFET reduce the interruption of the solar inverter. Work continuously with 90% load pressure.

INTELLEGENCE ALARM

Smart buzzer designs to provide 1- 5 alarm models for different situation. More easily finding out what is going on for your system.

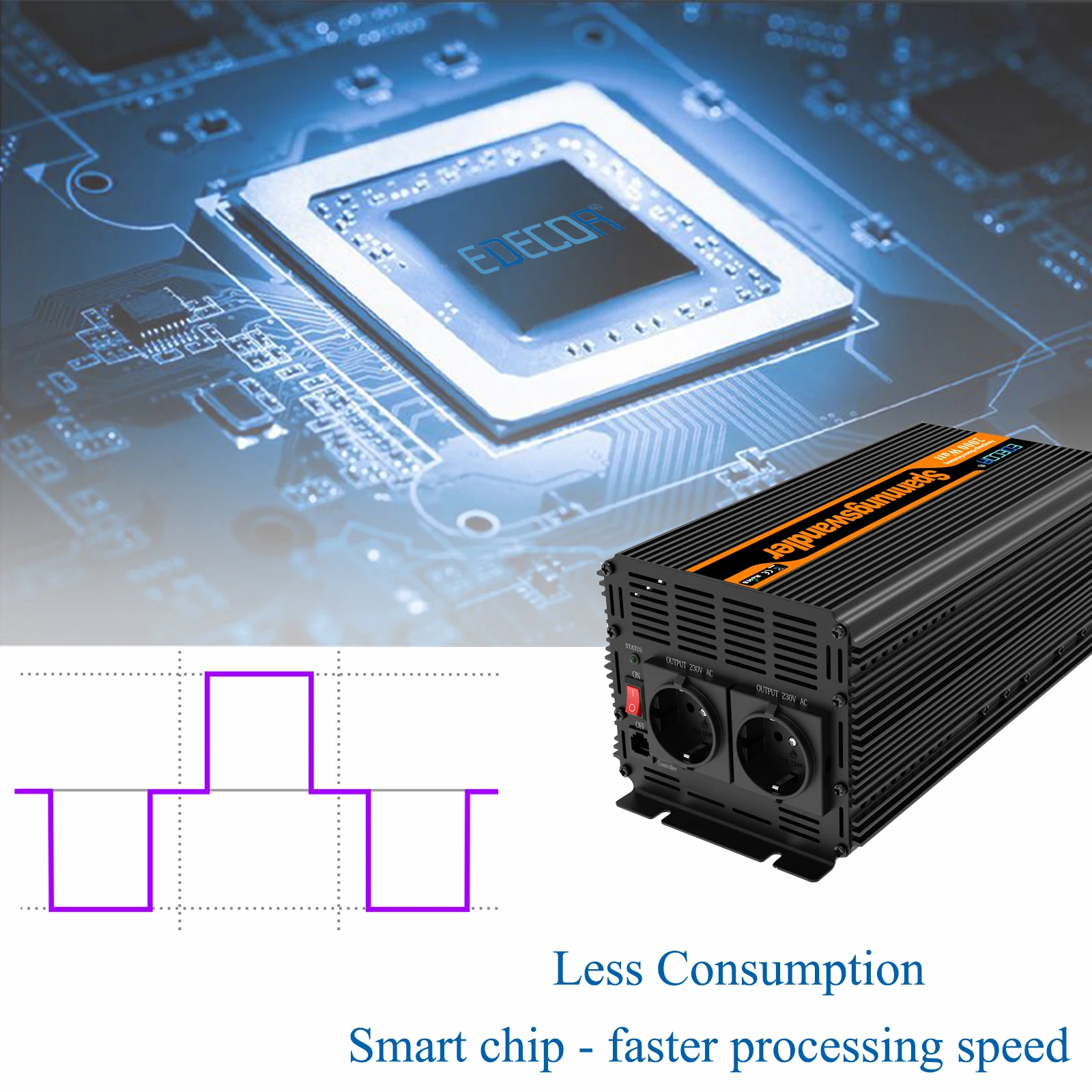

Modified Sine Wave Inverter

The modified sine wave inverter is not suitable to run inductive loads, such as microwave oven, coffee machine, water pump, refrigerator, electric drill, Fluorescent lamp, Induction cooker, welding machine, electric motor etc.

Additional information

Ships From

CN, GERMANY

Input Voltage

12V, 24V

Output Voltage

230V NO USB, 230V WITH USB

Socket Type

Germany
