18W Solar Panel System Set 220V Power Generation Battery Charge USB 500W Inverter DC 12V AC 30A Controller Home Kit Complete

$276

SKU: 1005004088110439 Category:

Description

  • Brand Name: NEWCE
  • Origin: CN(Origin)
  • Foldable Solar Panel: No
  • Number of Panels: 1
  • Certification: CE
  • Flexible Solar Panel: No
  • Type: Solar Panel

Solar Power Generation System Dual USB 18W Solar Panel+500W Power Inverter DC 12V to AC 220V +30A Solar Charge Controller Solar System Set



The box:(The battery is not included!)
1 x Power Inverter
2 x Battery Clip
1 x User Manual
1 x Solar Panel 18W 18V
1 x DC cable
1 x DC alligator clip
1 x Solar Charge Controller 30A 12V/24V



一.Solar Panel:
Power: 18W± 5%
Size: 420x280x2.5mm
DC outout: 12V/1.5A
USB output: 5V/1.7A
Weight:0.7kg
Material: Aluminum substrate
Output accessories: DC cable + DC alligator clip

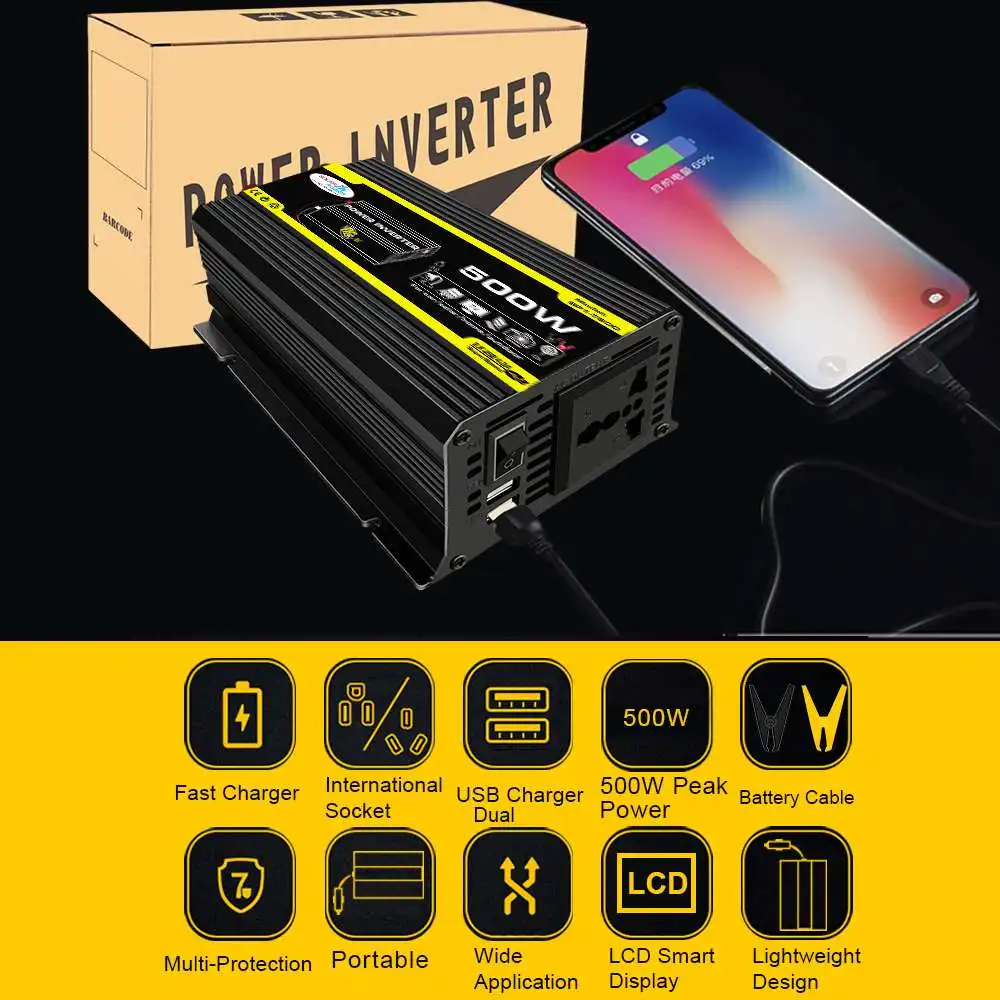

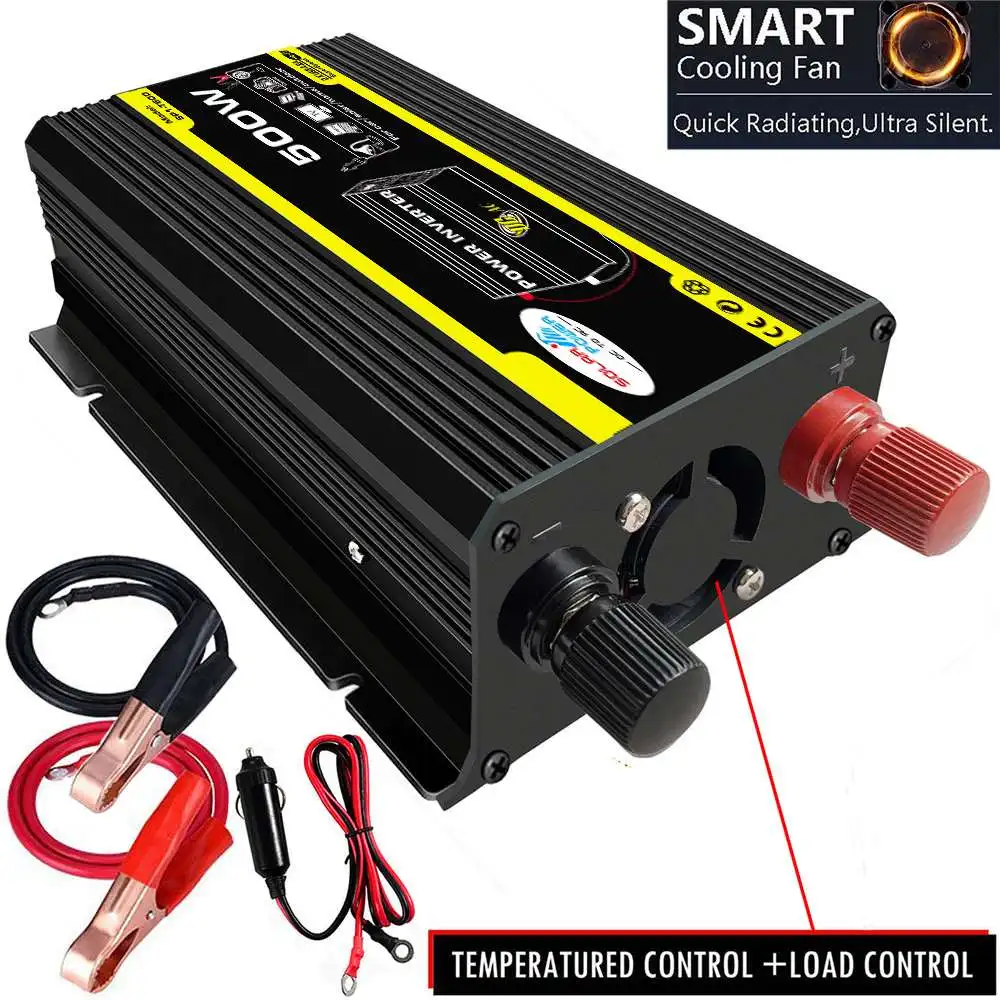

二.Inverter:
Peak power: 500W
Continuous power: 250W
LED Red/green lights: Green work normal, red show on protections
Input voltage: 12V
Output voltage: 220VAC
Output frequency is: 50Hz
Dual USB output: 5VDC/2.1A
No load current: ≤0.5A
Conversion efficiency: greater than 90%
Output waveform:
Modified sine wave
Product Size for inverter: 165x112x56mm
Protection: overload, over temperature, high pressure, low pressure, reverse connection and short circuit intelligent temperature control, less than 300W (except for the inductive load electrical appliances and electrical products)

Adavantage:
[LED Green&Red Work Lights]When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.

[Fast Charging Dual USB ports]2 USB Charger can charge most phones and tablets simultaneously (Max 4.2A), while AC outlets great for laptop, CPAP machine, game console, TV, DVD players, lights, RV, and other electronic devices .

[Mufti-Protection]Built-in fuse to protect your device, safe charging design provides protection against “”+”” “”-“” Reverse connection, overheating, under and over voltage , short circuiting, overloads, and overcharging.
[Lightweight design]Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.



三.PWM Controller:
Charge Current: 30A
Product Size: 148.5x78x35mm
Voltage: DC 12V / 24V Auto intelligent conversion
Display: LCD digital display
USB Charger Ports: Dual USB 5V 2.1A
Operating Temperature: -35~+60
Max Solar Input: 12V battery, the highest 23V
Float Charge: 13.7V (defaul, adjustable)
Discharge Stop: 10.7V (defaul, adjustable)
Discharge Reconnect: 12.6V (defaul, adjustable)
Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V (Light lights delay)
Voltage of Close Light: Solar Panel 8V (Light off delay)
USB Output: 2 way USB output, 5V/2.5A (MAX)
