10Pcs/Lot PV Solar Fuse 1500VDC High Pressure Current Limit For Photovoltaic System Combiner Box 10x85mm Safety Protection

$66

SKU: 1005001714369216 Category:

Description

  • Brand Name: fourtree
  • Origin: CN(Origin)
  • Safety Standards: IEC
  • Certification: CE
  • Usage: High Voltage
  • is_customized: Yes
  • Model Number: SFPV-32B
  • Material: Silver
  • Breaking Capacity: 25KA

5Pcs/Lot PV Solar Fuse 1500VDC High Pressure Current Limit For Photovoltaic System Combiner Box 10x85mm Safety Protection

Specifications:
1500 VDC, 10x85mm PV fuse link
Approvals: UL 2579 Listed (File: E490190)
Reference Standard: UL248-19(2579)
current (fuse): 2-32A
Rated Breaking Capacity: 25KA
Rated voltage: DC1500 V

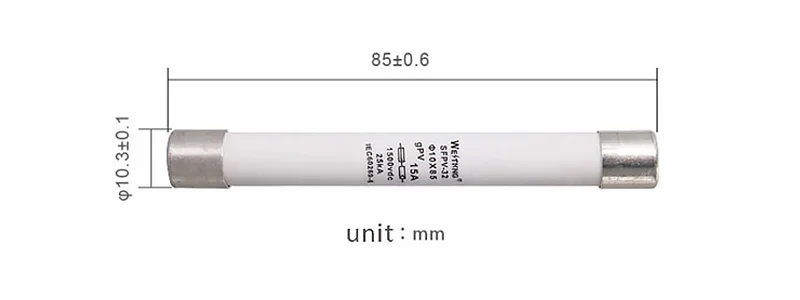

Fuse size: 10x85mm
Time Constant: ≤1ms
Special design with sliver plated caps for high-power PV applications

Additional information

AMP

10A, 15A, 20A, 25A, 2A, 32A, 3A, 5A, 8A
