100W 200W Glass Rigid Solar Panel Complete Kit ,36PCS Solar Cell 125mm*125mm 12V 24V battery Charge.

$240$553

SKU: 1005004189285238 Category:

Description

  • Brand Name: NEWCE
  • Origin: CN(Origin)
  • Number of Panels: 2
  • Flexible Solar Panel: No
  • Foldable Solar Panel: No
  • Type: Solar Panel
  • is_customized: Yes
  • Material: Monocrystalline Silicon
  • Certification: CE
  • Nominal Capacity: 100w/200W
  • Size: 1165mm*550mm*30mm
  • Model Number: n/m
  • Number of Cells: 36pcs
  • Max. Power: 210
  • glass solar panel system: rigid solar panel 100w 200w
  • 18vdc output: 36pcs 125mm*125mm solar cell




Shipping Information

1, For Europe Memeber Countries Client: Ship from Spain or Czech or Beligum or Poland Warehouse, NO Any Tax, 2-7 Working days arrival via DHL or Correos or GLS or PPL.

2, For Russia: Ship from Moscow Warehouse, NO Any Tax, Fast arrival via Russia Post.

3, For Ukraine Client: Ship from Ukraine Warehouse, NO Any Tax, Fast Delivery

4, For Braizl Client: Our Brazil Warehouse will Open Very Soon.

More Oversea Warehouse will open later.

PLS Notice:

Some seller sell the panel with 1010mm*510mm*25mm which is not the true 100W, it is only 90W power.

Our Glass Panel size is1165mm*550mm*30mm.Wiith 30MM Thickness Aluminu Frame, The Panel Can Bear Heavy Weight,The highest power can reach120W. More Life Time of 25 Year.

pls notice this point!!!!!!!!

Technicial Specification



100W Glass Solar Panel System :1*100W Glass Solar Panel, 1*10A Solar Controller ,1 Set 3M Cable With Connectors.



200W Solar Panel System :2*100W Glass Solar Panel, 1*20A Solar Controller ,1 Set 3M Cable With Connectors.1set 3M Solar Cable With Alligator Clip.1 pair Y type  connector.

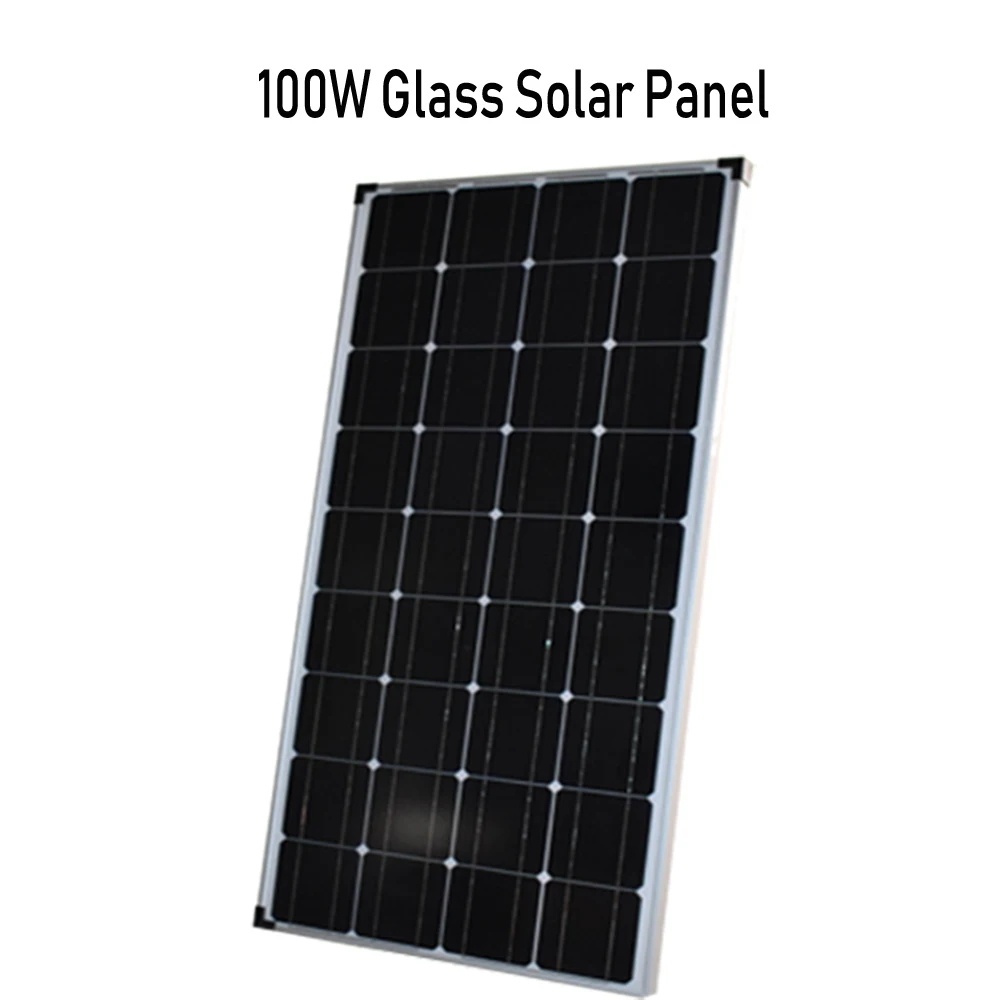

100W Glass Solar Panel

200W Glass Solar Panel

Solar Panel Details

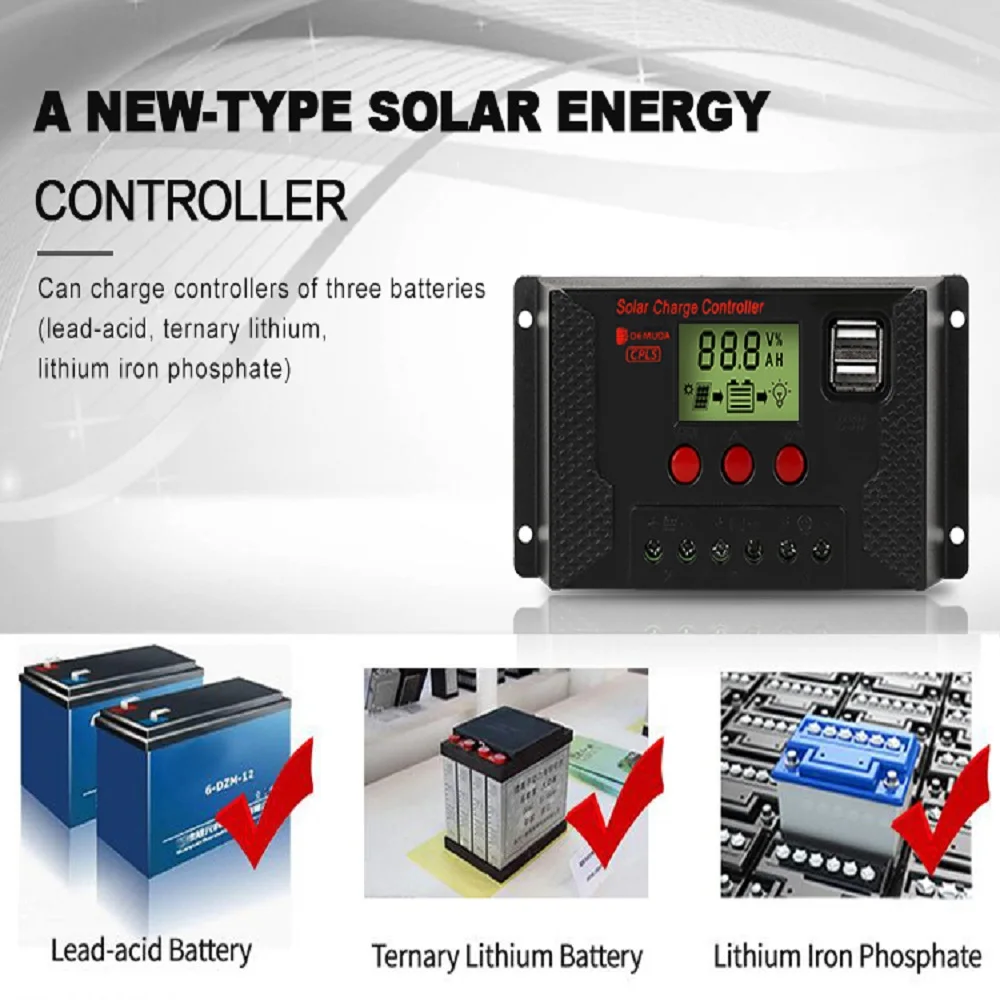

PWM Solar Controller 10A/20A 12V/24V Auto ——–Parameterg Information

3M Solar Cable For Connecting Solar Panel and Battery Cable

Y type Connectors Only For 200W System( this Y type Connector which is mainly used for connecting 2pcs solar panel to be 12V for charging 12V battery)

Rated Voltage: TUV1000V DC/ UL 600V DC

Rated current: 20A~30A

Suitable cable corss sections

14 AWG~10AWG (2.5MM2,4.0MM2,6.0MM2)

Pin dimension: 4.0MM

Contact material: Copper,tin plated

Housing material: PPO

Degree of protection: IP 67 waterproof

Flame class: UL94V-0

100W 200W Glass Solar Panel Monocrystalline Solar Panel with Connectors for 12V 24V Charge Batteryforhome/car/boat/Motor.

1) This product is a multi-functional solar charger, which can charge large batteries such as ships, yachts and automobiles.













Additional information

Ships From

Brazil, China, GERMANY, Italy, Russian Federation, United States

Color

100w Solar Panel, 100W Solar System, 200w Solar Panel, 200W Solar System
